Technics RS-B105 Service Manual

ORDER NO. HAD8602336C0
= fv A2
O6O7 O86
WLOOSIS7 —
SM—-RSBiOS
( svc
MNO
Of.
DOM
Wry fw 2 wwum aa

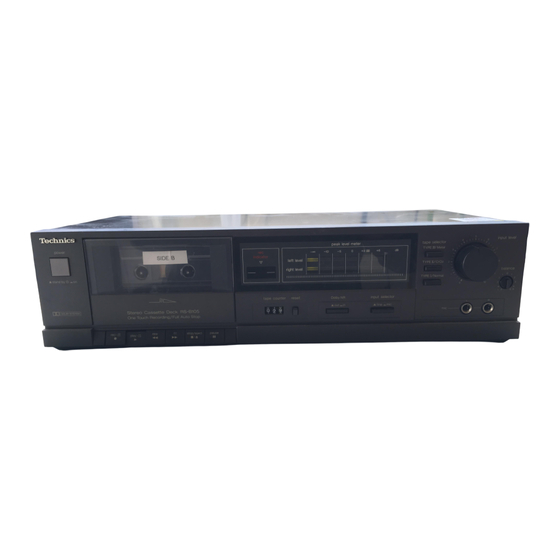

Cassette Deck
Dolby NR-Equipped
Stereo Cassette Deck
DC (ecavsveren]
RS-D550W MECHANISM SERIES
SPECIFICATIONS
Deck system
Track system
Heads
REC/PLAY
Erasing
Motor
Recording system
Bias frequency
Erasing system
Tape speed
Frequency response
Metal
Cro,
Normal
SIN (Signal level =
Dolby NR in
NR out
Stereo cassette deck
4-track, 2-channel
MX head
Double-gap ferrite head
1 motor system
AC bias
50kHz
AC bias
4.8cm/sec. (1-7/8ips.)
20Hz~ 16,000 Hz
30Hz~ 15,000 Hz (DIN)
40Hz~ 15,000 Hz+3dB
20 Hz~ 15,000 Hz
30Hz2~ 15,000 Hz (DIN)
40Hz~14,000Hz+3dB
20Hz~ 15,000 Hz
30Hz~ 15,000 Hz (DIN)
40Hz~14,000Hz+3dB
max. recording level, CrO, type tape)
66dB (CCIR)
56dB (A weighted)
Technics
Wow and flutter
RS-B105
Color
(K)...Black Type
(S)...Silver Type
Color Areas
(K) (S) | [M]......... U.S.A.
(K) (S) | [E].......... All European
areas except
United Kingdom.
{EK]....... United Kingdom.
{EGA]....F.R. Germany.
(K) (S)
(K) (S)
0.08% (WRMS) +0.2% (DIN)
Fast forward and rewind time
Approx. 105 seconds with C-60 cassette tape
Input sensitivity and impedance
MIC
LINE
DIN...[EGA] only
0.25mV/400Q~10kQ
60mV/47kO
0.25mV/3.3kQ
Output voltage and impedance
LINE 400 mV/3.2kQ
Power consumption SW
Power supply [M] sviteteosccncareccerteogecttvade crs AC 60Hz 120V
[E] [EGA} ... AC 50Hz/60Hz 220V
(EK), iii eects AC 50Hz/60Hz 240V
Dimensions (W x H x D) 430 x 115 x 220mm
(16-15/16" « 4-17/32" x 8-21/32")
Weight 3.0kg (6.6 ibs.)
* Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
