Technics RS-X102 Service Manual

ORDER NO. AD9103044C8

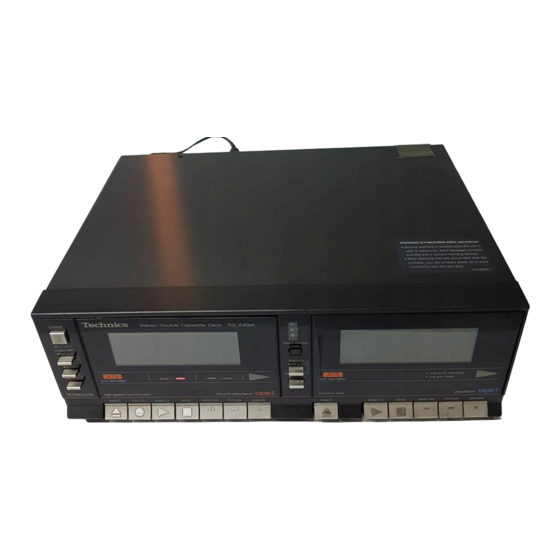

Cassette Deck
Dolby NR-Equipped S-X 0
Stereo Double Cassette Deck R 1 2
Color
(K)... Black Type
DiC [etsy system] ick
Country
Code
Area
Continental Europe.
Great Britain.
F.R. Germany and Italy.
(K)
Asia, Latin America,
Middle Near East and
Africa.
Oceania.
MECHANISM SERIES (AR300)
SPECIFICATIONS
M@ CASSETTE DECK SECTION Wow and flutter 0.1 % (WRMS)
Fast forward and rewind times
Deck system Stereo cassette deck Approx. 110 seconds with C-60 cassette tape
Track system 4-track, 2-channel Input sensitivity and Impedance
Heads LINE 60 mV/47 kQ
(tape deck 2) rec/play Permalloy head Output voltage and impedance
erasing Double-gap ferrite head LINE 400 mV/800 Q
(tape deck 1) play Permalloy head
Motors
(tape deck 2) Capstan/reel table drive § DC servo motor WM GENERAL
(tape deck 1) Capstan/reel table drive |©§ DC servo motor
Recording system AC bias Power consumption 15 W
Bias frequency 80 kHz Dimensions (W x H x D) 360 x 129 x 285 mm
Erasing system AC erase (14-3/16" x §-3/32" x 11-7/32")
Tape speeds 4.8 cm/sec. (1-7/8 ips) Weight 3.7 kg (8.1 Ib.)
Frequency response (wio Dolby NR)
NORMAL 30 Hz~16 kHz
40 Hz~15 kHz (DIN)
cro, 30 Hz~16 kHz
40 Hz~15 kHz (DIN) Note:
METAL 30 Hz~18 kHz Specifications are subject to change without notice.
40 Hz~17 kHz (DIN) Weight and dimensions are approximate.
SIN (signal level = max recording level, CrO. type tape) * Dolby noise reduction manufactured under license
Dolby B NR ON 66 dB (CCIR) from Dolby Laboratories Licensing Corporation.
Dolby NR OFF 56 dB (A weighted) "Dolby" and the double-D symbol are trade marks of
Dolby Laboratories Licensing Corporation.
Technics
