Dolby nr-equipped stereo double cassette deck

Advertisement

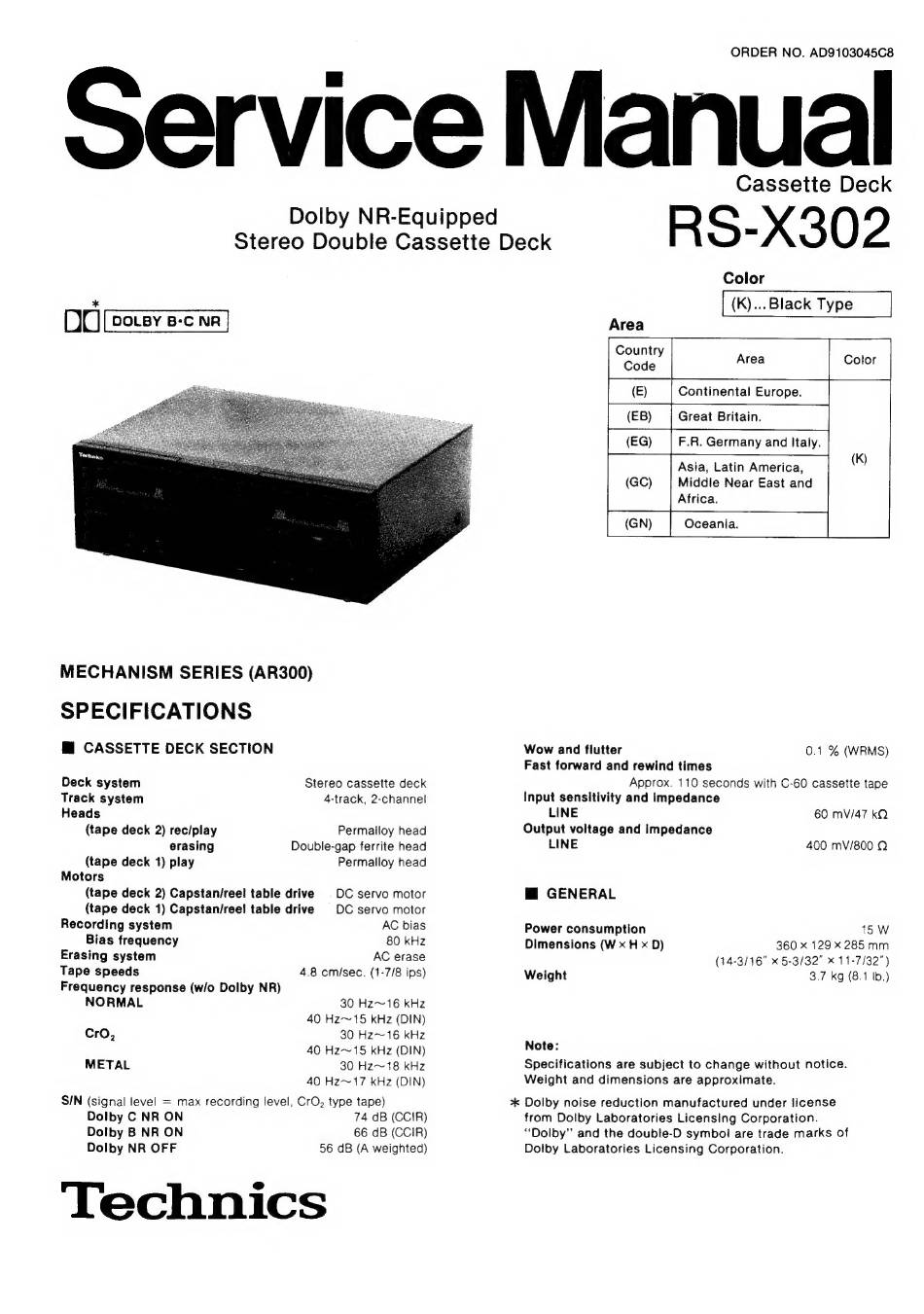

ORDER NO. AD9103045C8
Cassette Deck
RS-X302
Dolby NR-Equipped
Stereo Double Cassette Deck
DC (eocey
ec a]
MECHANISM SERIES (AR300)
SPECIFICATIONS
@ CASSETTE DECK SECTION
Deck system
Stereo cassette deck
Track system
4-track, 2-channel
Heads
(tape deck 2) rec/play
Permalloy head
erasing
Double-gap ferrite head
(tape deck 1) play
Permalloy head
Motors
(tape deck 2) Capstan/reel table drive
© DC servo motor
(tape deck 1) Capstan/reel table drive
© DC servo motor
Recording system
AC bias
Bias frequency
80 kHz
Erasing system
AC erase
Tape speeds
4.8 cm/sec. (1-7/8 ips)
Frequency response (w/o Dolby NR)
NORMAL
30 Hz~16 kHz
40 Hz~15 kHz (DIN)
cro,
30 Hz~16 kHz
40 Hz~15 kHz (DIN)
METAL
30 Hz~18 kHz
40 Hz~17
kHz (DIN)
SIN (signal level = max recording level, CrO, type tape)
Dolby C NR ON
74 dB (CCIR)
Dolby B NR ON
66 dB (CCIR)
Dolby NR OFF
56 dB (A weighted)
'Technics
Color
[ (kK)... Black Type
Area
Country
Coie
Area
otal
(E)
Continental Europe.
(EB)
Great Britain.
(EG)
F.R. Germany and Italy.
Asia, Latin America,
(K)
(GC)
Middle Near East and
ee
Africa.
(GN)
Oceania.
Wow and flutter
0.1 % (WRMS)
Fast forward and rewind times
Approx. 110 seconds with C-60 cassette tape
Input sensitivity and impedance
LINE
60 mV/47 kQ
Output voitage and impedance
LINE
400 mvV/800 Q
M GENERAL
Power consumption
15 W
360 x 129 x 285 mm
(14-3/16" x 5-3/32" x 11-7/32")
Weight
3.7 kg (8.1 Ib.)
Dimensions (W x H x D)
Note:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trade marks of
Dolby Laboratories Licensing Corporation.
