71312 Operators

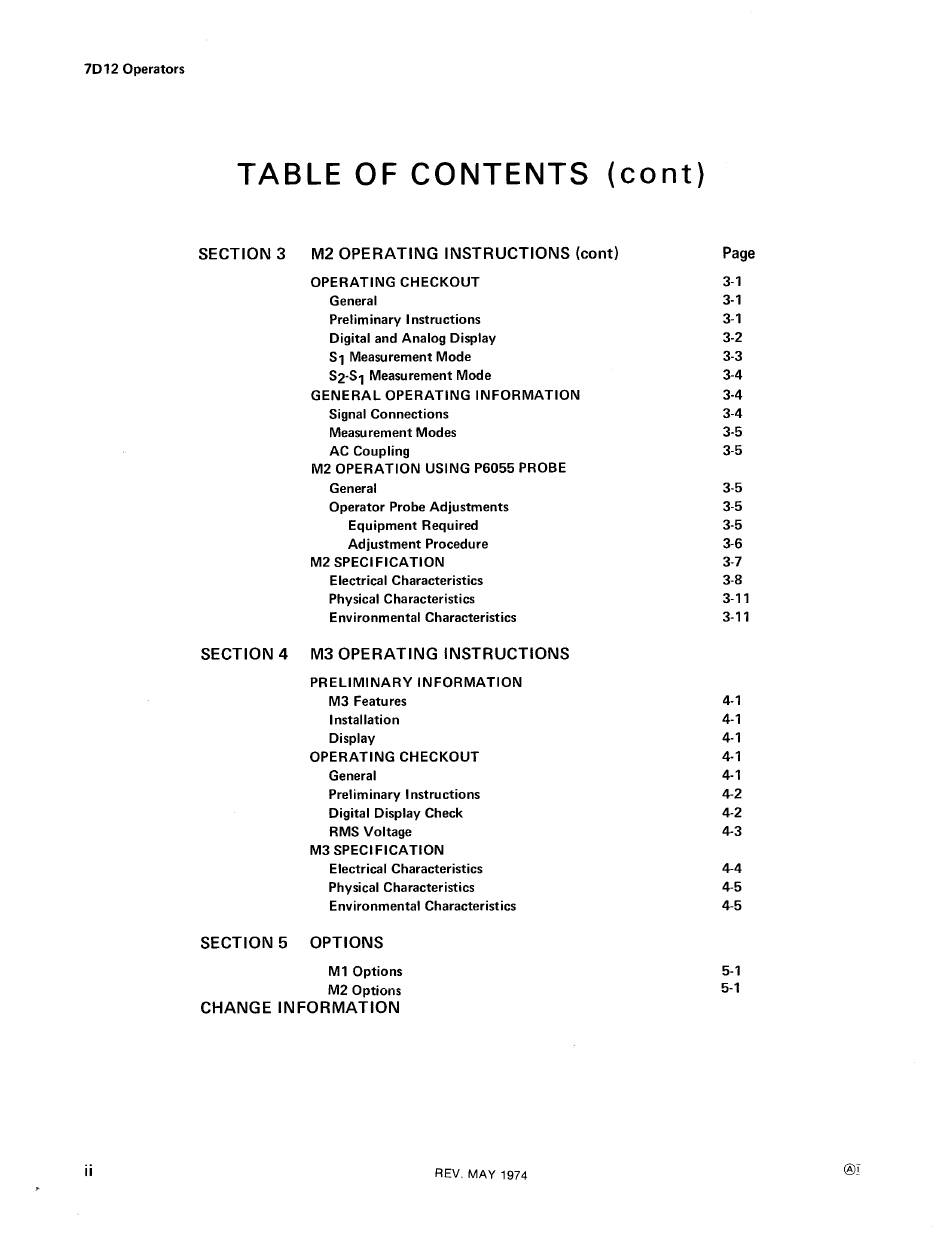

TABLE OF CONTENTS (cont)
CHANGE INFORMATION
REV . MAY 1974
SECTION 3 M2 OPERATING INSTRUCTIONS (cont) Page
OPERATING CHECKOUT 3-1
General
3-1
Preliminary Instructions 3-1
Digital and Analog Display 3-2
S1 Measurement Mode 3-3
S2-S1 Measurement Mode 3-4
GENERAL OPERATING INFORMATION
3-4
Signal Connections 3-4
Measurement Modes 3-5
AC Coupling 3-5
M2 OPERATION USING P6055 PROBE
General 3-5
Operator Probe Adjustments 3-5
Equipment Required 3-5
Adjustment Procedure 3-6
M2 SPECIFICATION 3-7
Electrical Characteristics 3-8
Physical Characteristics 3-11
Environmental Characteristics 3-11
SECTION 4 M3 OPERATING INSTRUCTIONS
PRELIMINARY INFORMATION
M3 Features
4-1
Installation
4-1
Display
4-1
OPERATING CHECKOUT
4-1
General
4-1
Preliminary Instructions
4-2
Digital Display Check
4-2
RMS Voltage
4-3
M3 SPECIFICATION
Electrical Characteristics 4-4
Physical Characteristics 4-5
Environmental Characteristics 4-5
SECTION 5
OPTIONS
M1 Options 5-1
M2 Options
5-1
