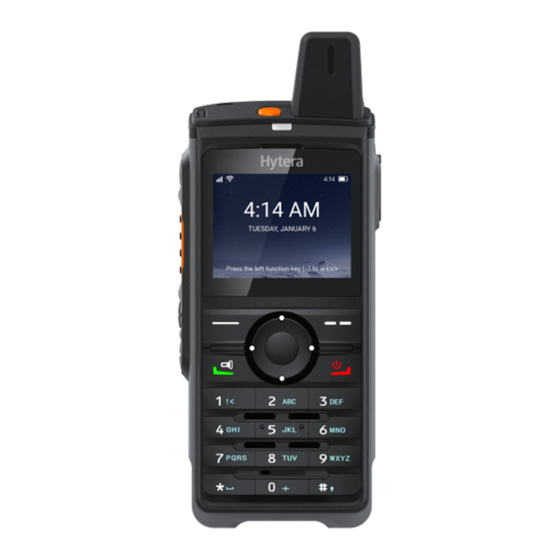

- Page 1 PNC380 PoC Radio USER MANUAL...
- Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
-
Page 3: Table Of Contents
Contents Documentation Information ......................... 1 1. Unpacking .............................. 3 1.1 Packing List ............................3 1.2 Product Overview ..........................4 1.3 (Optional) Installing the SIM Card and Micro SD Card ..............4 1.4 Attaching the Battery ......................... 5 1.5 Attaching the Belt Clip ........................6 1.6 Attaching the Audio Accessory ...................... - Page 4 4.3.4 Date and Time ........................16 4.3.5 Upgrade ..........................18 5. Camera ..............................19 5.1 Taking Photos ..........................19 5.2 Recording Videos ..........................19 5.3 Viewing Pictures or Videos ......................19 6. Gallery ..............................20 6.1 Photos ............................. 20 6.1.1 Viewing Photos ........................20 6.1.2 Managing Photos ........................
- Page 5 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
-
Page 6: Documentation Information
Documentation Information Icon Conventions Icon Description Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Notation Conventions Item Description Example To save the configuration, click Apply. Denotes menus, tabs, parameter names, Boldface window names,... - Page 7 Key Operations Operation Description Short press Press and release quickly. Long press Press and hold for preset time. Press and hold Keep the key pressed.
-
Page 8: Unpacking
1. Unpacking 1.1 Packing List Please unpack carefully and check that you have received the following items. If any item is missing or damaged, please contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Data Cable Battery Battery Cover Power Adapter Strap Belt Clip... -
Page 9: Product Overview
1.2 Product Overview 1.3 (Optional) Installing the SIM Card and Micro SD Card Unlock the battery latch, and then remove the battery cover. The battery cover is tightly fastened to ensure optimum waterproof performance. It is recommended to remove the battery cover with tools. Open the card slot covers. -
Page 10: Attaching The Battery
1.4 Attaching the Battery Use the approved battery to avoid the risk of explosion. Dispose of the used battery according to "Precautions for Disposal" in the Safety Information Booklet. Insert the battery into the battery slot. Press the battery cover into place. Slide the battery latch to the lock position. -
Page 11: Attaching The Belt Clip
1.5 Attaching the Belt Clip 1.6 Attaching the Audio Accessory Open the cover of the audio accessory connector, and then insert the audio accessory into the connector. To ensure optimum waterproof and dustproof performance, close the cover after removing the audio accessory. -
Page 12: Charging The Battery
1.7 Charging the Battery Use the approved charger to charge the battery. Read the Safety Information Booklet before charging. The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA). Before initial use, charge the battery. -
Page 13: Basic Operations
2. Basic Operations 2.1 Turning the Radio On or Off To turn on the radio, long press for two seconds. To turn off the radio, long press for two seconds, and then select Power Off. 2.2 Adjusting the Volume To increase the volume, press the Volume + key. -
Page 14: Checking The Radio Information
2.7 Checking the Radio Information To check the radio information such as status, model, and version, go to > About phone. -
Page 15: Status Indication
3. Status Indication 3.1 LCD Icons Icon Radio Status The battery is fully charged. The battery is low. The Battery Saver mode is enabled. The battery is being charged. No SIM card is installed. E / 3G / 4G The 2G/3G/4G cellular network is enabled. The SIM card has registered with the mobile network. - Page 16 LED Indicator Radio Status Glows red The radio is transmitting.
-
Page 17: Settings
4. Settings You can access the Settings interface by selecting to perform the following operations. 4.1 Network and Data Sharing 4.1.1 Cellular Network Before connecting to the cellular network, make sure that the SIM card is installed and the cellular data service is activated. -
Page 18: Hotspot
To enable the Bluetooth feature, do the following: Go to Settings > Bluetooth, and then enable Bluetooth. Select a device from the Available devices list, and then select Connect. Select Pair to pair with the device. Select Cancel to cancel paring. 4.1.4 Hotspot After connecting the radio to the cellular network, you can create a hotspot to offer internet connection to other devices. -
Page 19: Usb
This feature is only available for PNC380 Advanced. 4.1.7 USB The radio can be connected to the computer through a USB cable for charging or data transmission. Only charge this device: The radio will only be charged. Transfer files: The radio can transfer files with the computer. -
Page 20: Storage
4.2.2.3 Volume To adjust the media volume, go to Settings > Sound > Media volume, and then press the left or right Navigation Key. 4.2.2.4 Alert sound Go to Settings > Sound > Other sounds to turn on or off the Screen locking sounds and Charging sounds. 4.2.3 Storage To view the proportion of used storage, go to Settings >... -
Page 21: Languages
Battery Saving: The radio locates only through WLAN, and cellular network, so as to save battery power. Device Only: The radio locates only through GPS without using data traffic. 4.3.1.3 Setting Scanning Mode Go to Settings > Location, and then enable Location. Select Scanning, and then select whether to enable the following scanning modes: ... - Page 22 The system uses the date and time provided by the network. Enable Automatic Time Zone. The system uses the time zone provided by the network. To manually adjust the date, time, and time zone, select Date & Time, disable Automatic date & time and ...
-
Page 23: Upgrade
4.3.5 Upgrade Use the official software only to upgrade the system, to prevent equipment failure, data loss, or damage to the system security. Be sure to back up your data before upgrade. Ensure that the battery power is more than 30% before upgrading. When the latest software version becomes available, do one of the following: Upgrade the system automatically. -
Page 24: Camera
5. Camera The Camera application allows you to shoot photos and videos. This feature is only available for PNC380 Advanced. 5.1 Taking Photos Select to open the camera, and then select (Optional) Press the Option key to select Settings to set the Resolution and Flash. -
Page 25: Gallery
6. Gallery The Gallery application allows you to manage pictures and videos. 6.1 Photos 6.1.1 Viewing Photos to open the gallery, and then select Photos. Select Select a photo, and then press the OK/Menu key to view the photo. Press OK/Menu key again to zoom out the photo. 6.1.2 Managing Photos Select to open the gallery, and then select Photos. -
Page 26: Managing Videos
6.2.2 Managing Videos to open the gallery, and then Select Video. Select Select a video, and then press the OK/Menu key. Press the Option key to select the following operation: Move to SD card/Copy to SD card: Move or copy the video to SD card if a SD card is installed. ... -
Page 27: Sound Recorder
7. Sound Recorder The SoundRecorder application allows you to record voice at any time during your work time or daily life. 7.1 Recording Audios Select to open the SoundRecorder. Press the OK/Menu key to start recording. Press the OK/Menu key again to finish recording. 7.2 Playing Audios Select to open the SoundRecorder. -
Page 28: Applications
8. Applications 8.1.1 Installing Applications To protect the device from malware or viruses, download the trusted applications only. To avoid personal information leakage or misuse, read the instruction carefully and operate with caution when installing an application. You can download and install applications from the MDM after successfully connected and registered with it. 8.1.2 Uninstalling Applications If you no longer use an app, you can uninstall it to release storage and improve radio performance. -
Page 29: Setting The Access Permissions
Select Storage, and then select Clear data or Clear cache. 8.1.5 Setting the Access Permissions You can manage the permissions for apps to access privacy features, so as to protect your personal data and avoid information leakage. Select Settings > Apps. Select the application. -
Page 30: Poc
9. PoC The Push-to-Talk over Cellular (PoC) service provides direct one-to-one and one-to-many voice communications over the wider-coverage public network. This service is available only when you have installed the PoC application on the radio. You can access the PoC menu to initiate a call. Open the PoC application. -
Page 31: Troubleshooting
10. Troubleshooting Phenomena Analysis Solution battery installed Remove and reattach the battery. improperly. The radio cannot be turned The battery power may run out. Recharge or replace the battery. The battery may suffer from poor Clean the battery contacts or replace the contact caused by dirty or damaged battery. - Page 32 Phenomena Analysis Solution of unpaid charges. The cellular network is not enabled Contact the carrier to enable the cellular for the SIM card. network. The communication signal strength Make sure the radio is within the may be weak. network coverage. Both the cellular network and WLAN are turned on, but the Turn the WLAN off.
-
Page 33: Care And Cleaning
11. Care and Cleaning To guarantee optimal performance as well as a long service life of the radio, follow the tips below. 11.1 Product Care Do not pierce or scrape the screen or radio. Do not drop the radio or collide with other objects. ... -
Page 34: Optional Accessories
12. Optional Accessories Use the accessories specified by Hytera only; otherwise, we will not be liable for any loss or damage arising out of the use of any unauthorized accessories. Contact your dealer for the optional accessories used with the radio. - Page 35 2019HyteraCommunicationsCorporationLimited.AllRightsReserved. Address:HyteraTower,Hi-TechIndustrialParkNorth,9108#BeihuanRoad,NanshanDistrict, Shenzhen,People'sRepublicofChina Postcode:518057 http://www.hytera.com...
