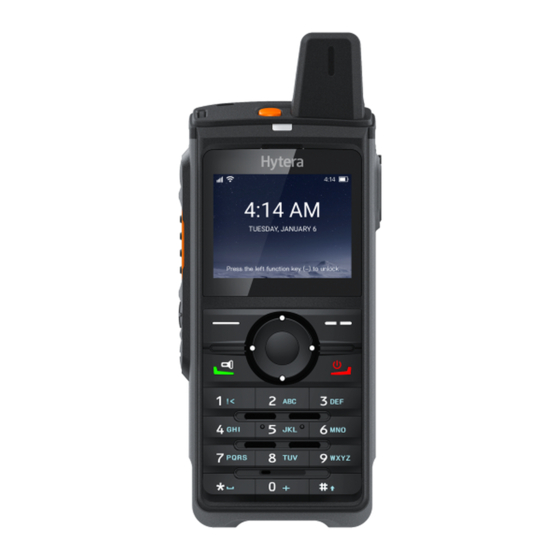

PNC380S PoC Radio
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Hytera PNC380S

Summary of Contents for Hytera PNC380S

  • Page 1 PNC380S PoC Radio USER MANUAL...
  • Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss Safety Information Booklet caused by incorrect operation, please carefully read the before use.

  • Page 3: Table Of Contents

    Contents Preface ....................................... 1 Copyright Information ..............................1 Disclaimer ..................................1 Documentation Information ..........................1 Icon Conventions ..................................1 Notation Conventions................................1 Key Operations ..................................2 Before Use ..............................3 1.1 Packing List ..................................3 1.2 Product Layout .................................. 4 1.3 (Optional) Installing the SIM Card and SD Card .......................
  • Page 4 Network and Data Sharing ........................14 4.1 Mobile Network ................................14 4.1.1 Checking the Data Usage ..........................14 4.1.2 Enabling or Disabling the Data Roaming .....................14 4.1.3 Selecting the Network Type ..........................14 4.2 WLAN ....................................15 4.3 BT ......................................15 4.3.1 Pairing with a BT Device ............................15 4.3.2 Disconnecting from a BT Device ........................16 4.3.3 Modifying the BT Device Name ........................16 4.4 Hotspot ....................................16...
  • Page 5 5.2.5 Upgrade .................................24 Camera ................................ 25 6.1 Taking a Photo ................................25 6.2 Recording a Video ................................25 6.3 Viewing a Picture or Video ............................25 Gallery ................................. 26 7.1 Photos ....................................26 7.1.1 Viewing a Photo ..............................26 7.1.2 Managing a Photo...............................26 7.2 Videos ....................................26 7.2.1 Playing a Video ..............................26 7.2.2 Managing a Video ...............................27 Sound Recorder ............................
  • Page 6 Abbreviation ............................... 35 ⅰ...

  • Page 7: Copyright Information

    Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 8 This EUT is in compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with minimum distance of 0 cm between the radiator and your body.
  • Page 9 Cet appareil de classe B est conforme à la norme canadienne ICES-003. IC : 8913A-PNC380S Déclaration d'exposition IC Cet EUT est conforme aux valeurs SAR à la norme SAR pour le grand public ainsi qu'aux limites d'exposition non règlementée IC RSS-102 et a été...
  • Page 10 Énergie radioélectrique Cet appareil est conçu et fabriqué de façon à ne pas dépasser les limites d'émission pour l'exposition à l'énergie de radiofréquence (RF) fixées par la Federal Communications Commission des États-Unis et Industrie Canada. Pendant les tests SAR, cet appareil est configuré pour transmettre à son niveau de puissance certifié le plus élevé...
  • Page 11 Ce téléphone mobile a été testé et déclaré conforme aux limites d'un appareil numérique de classe B, • conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans •...

  • Page 12: Disclaimer

    Documentation Information Icon Conventions Icon Description Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Notation Conventions Item Description Example To save the configuration, click Apply. Denotes menus, tabs, parameter names, Boldface window names, dialogue names, and The Log Level Settings dialogue appears.

  • Page 13: Key Operations

    Key Operations Operation Description Short press Press and release quickly. Long press Press and hold for preset time. Press and hold Keep the key pressed.

  • Page 14: Before Use

    1. Before Use 1.1 Packing List Please unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Data Cable Battery Battery Cover Power Adapter Strap Belt Clip...

  • Page 15: Product Layout

    1.2 Product Layout...

  • Page 16: Optional) Installing The Sim Card And Sd Card

    1.3 (Optional) Installing the SIM Card and SD Card 1. Slide the battery latch to the unlock position, and then remove the battery cover. 2. Open the card slot covers. 3. Install the SIM card and SD card. 4. Put the card slot covers back in place.

  • Page 17: Attaching The Battery

    1.4 Attaching the Battery  Do not store the radio under high temperatures for a long time.  Use the approved battery to avoid the risk of explosion. Safety  Dispose of the used battery according to "Precautions for Disposal" in the Information Booklet Align the metal contacts on the battery with the metal dome in the battery slot, and then press the battery until you hear a click.

  • Page 18: Attaching The Belt Clip

    1.5 Attaching the Belt Clip Use on the body is intended either with the provided belt clip, or a third-party accessory that contains no metallic components. 1.6 Attaching the Audio Accessory Open the cover of the audio accessory connector, and then insert the audio accessory into the connector.

  • Page 19: Charging The Battery

    1.7 Charging the Battery Safety Information Booklet  Read the before charging.  Use the approved charger to charge the battery.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA). Before initial use, charge the battery.

  • Page 20: Basic Operations

    2. Basic Operations 2.1 Turning On or Off the Radio To turn on the radio, long press for two seconds.  To turn off the radio, long press for two seconds, and then press the OK/Menu key.  2.2 Adjusting the Volume To increase the volume, press the Volume + key.

  • Page 21: Screen Operations

    Icon Radio Status The radio has not registered with the mobile network. The radio is connected to the WLAN network. The WLAN hotspot is enabled. The radio operates in Airplane mode. An earpiece is connected. The radio operates in silent mode. The BT feature is enabled.

  • Page 22: Turning On Or Off The Flashlight

    Locking or Unlocking the Screen When the screen is not in use, you can lock it to avoid unintended operations, protect privacy, and increase battery life. To lock the screen, press SK.  If the standby time reaches the sleep time, the screen is automatically locked. To unlock the screen, press SK or any key on the keypad.
  • Page 23 Press the Navigation key down to select About phone, and then press the OK/Menu key.

  • Page 24: Poc Service

    3. PoC Service The Push-to-Talk over Cellular (PoC) service provides one-to-one and one-to-many voice communications over the wider-coverage public network. This service is available only when you have installed the PoC application on the radio. After connecting the radio to a WLAN or cellular network, you can initiate a call through the PoC application.

  • Page 25: Network And Data Sharing

    4. Network and Data Sharing 4.1 Mobile Network Before connecting to the mobile network, make sure that the SIM card is installed and the mobile data service is activated. 4.1.1 Checking the Data Usage You can view the amount of data usage to avoid exceeding the data usage limit. Press the OK/Menu key to open Press the Navigation key down to select Data usage, and then press the OK/Menu key.

  • Page 26: Wlan

    4G service. 4.2 WLAN After successful WLAN connection, you can visit the Internet or shared media from other devices in the network. To connect the radio to the WLAN network, do as follows: Press the OK/Menu key to open Press the OK/Menu key to enter the WLAN interface. Press the OK/Menu key to enable WLAN.

  • Page 27: Disconnecting From A Bt Device

    4.3.2 Disconnecting from a BT Device Go to > BT > Paired devices. For details, see step 1–2 in 7.3.1 Pairing with a BT Device. Press the Navigation key down to select the device. Press the OK/Menu key to disconnect the radio from the device. 4.3.3 Modifying the BT Device Name Go to >...

  • Page 28: Airplane Mode

    4.5 Airplane Mode When you are on an airplane or in an area with radio restrictions, you may be required to turn off your radio or turn on the airplane mode. In airplane mode, your radio automatically disables the mobile network, BT, and WLAN.

  • Page 29: Settings

    5. Settings 5.1 Radio Settings 5.1.1 Display Adjusting the Brightness You can adjust the brightness to make the screen brighter or dimmer in different situations. Press the OK/Menu key to open Press the Navigation key down to select Display, and then press the OK/Menu key. Press the OK/Menu key.

  • Page 30: Sound

    5.1.2 Sound Setting the Profile You can set the profile of the radio according to different scenarios. Press the OK/Menu key to open Press the Navigation key down to select Sound, and then press the OK/Menu key. Press the OK/Menu key. Press the Navigation key to select Silent or Ringtone, and then press the OK/Menu key.

  • Page 31: Battery

    5.1.4 Battery Viewing the Battery Power You can view the proportion of remaining battery power and the power usage of applications. Press the OK/Menu key to open Press the Navigation key down to select Battery, and then press the OK/Menu key. The remaining battery power is shown.

  • Page 32: Languages

    BT, or GPS. The location-related apps, such as Camera and the PoC application, can access the location data of the radio. Setting the Location Mode Press the OK/Menu key to open Press the Navigation key down to select Location, and then press the OK/Menu key. Press the OK/Menu key to enable Location.

  • Page 33: Factory Data Reset

    5.2.3 Factory Data Reset The Factory Data Reset feature will erase all information on the radio such as personal information and downloaded apps. When the radio runs slowly or the apps quit unexpectedly, you can reset the radio to the factory settings to fix the problem.
  • Page 34 Setting the Time Format You can set the time format to 12-hour or 24-hour. Press the OK/Menu key to open Press the Navigation key down to select Date & time, and then press the OK/Menu key. Press the Navigation key down to select Use 24-hour format, and then press the OK/Menu key to enable the feature.

  • Page 35: Upgrade

    5.2.5 Upgrade  Only use the official software to upgrade the system, therefore preventing equipment failure, data loss, or damage to the system security.  Be sure to back up your data before upgrade.  Ensure that the battery power is more than 30% before upgrading. When an update is available, you can upgrade the system.

  • Page 36: Camera

    6. Camera The Camera application allows you to shoot photos and videos. 6.1 Taking a Photo Press the OK/Menu key to open (Optional) Press the Option key to select Settings to set the Resolution and Flash. Press the OK/Menu key to take the photo. 6.2 Recording a Video Press the OK/Menu key to open Press the Navigation key right to enter the...

  • Page 37: Gallery

    7. Gallery The Gallery application allows you to manage pictures and videos. 7.1 Photos 7.1.1 Viewing a Photo Press the OK/Menu key to open Press the OK/Menu key to enter the photos interface. Press the Navigation key to select the photo, and then press the OK/Menu key to view the photo. Press the OK/Menu key again to zoom out the photo.

  • Page 38: Managing A Video

    Press the Navigation key down to select Videos, and then press the OK/Menu key. Press the Navigation key to select the video, and then press the OK/Menu key to open the video. Press the OK/Menu key again to play the video. (Optional) Press the Navigation key left or right to rewind or fast-forward the radio.

  • Page 39: Sound Recorder

    8. Sound Recorder The SoundRecorder application allows you to record voice at any time. 8.1 Recording an Audio File Press the OK/Menu key to open Press the OK/Menu key to start recording. Press the OK/Menu key again to finish recording. 8.2 Playing an Audio File Press the OK/Menu key to open Press the Option key, and then select the audio file.

  • Page 40: Applications

    9. Applications 9.1 Uninstalling an Application If you no longer use an app, you can uninstall it to release storage and improve radio performance. Press the OK/Menu key to open Press the Navigation key down to select Apps, and then press the OK/Menu key. Press the Navigation key down to select the application, and then press the OK/Menu key.

  • Page 41: Setting The Access Permissions

    9.4 Setting the Access Permissions You can manage the permissions for apps to access privacy features, so as to protect your personal data and avoid information leakage. Enter the application settings interface. For details, see step 1–3 in 12.2 Uninstalling an Application.

  • Page 42: Troubleshooting

    Restart the radio. display, or LED temporarily. indicator do(es) not The keys, LCD display, or LED Contact your dealer or Hytera work normally. indicator may be damaged. technicians for maintenance. The keys may fail to function Restart the radio.
  • Page 43 Phenomena Analysis Solution network coverage. Both the mobile and WLAN network are turned on, but the WLAN Turn the WLAN off. connection is unstable. Make sure call participants are within The signal may be weak. the communication range. You are unable to The radio may be at an unfavorable hear anyone position.

  • Page 44: Care And Cleaning

    11. Care and Cleaning To guarantee optimal performance as well as a long service life of the radio, follow the tips below. 11.1 Product Care Do not pierce or scrape the radio.  Do not drop the radio or collide with other objects. ...

  • Page 45: Optional Accessories

    12. Optional Accessories Use the accessories specified by the Company only. Otherwise, we will not be liable for any loss or damage arising out of use of any unauthorized accessories. Contact your dealer for the optional accessories used with the radio.
  • Page 46 13. Abbreviation Abbreviation Full Name Global Positioning System Liquid-Crystal Display Light-Emitting Diode Personal Computer PTT Over Cellular Push-To-Talk Secure Digital Memory Card Subscriber Identity Module Side Key Universal Serial Bus WLAN Wireless Local Area Networks...
  • Page 47 2020HyteraCommunicationsCorporationLimited.AllRightsReserved. Address:HyteraTower,Hi-TechIndustrialParkNorth,9108#BeihuanRoad,NanshanDistrict, Shenzhen,People'sRepublicofChina Postcode:518057 http://www.hytera.com...
