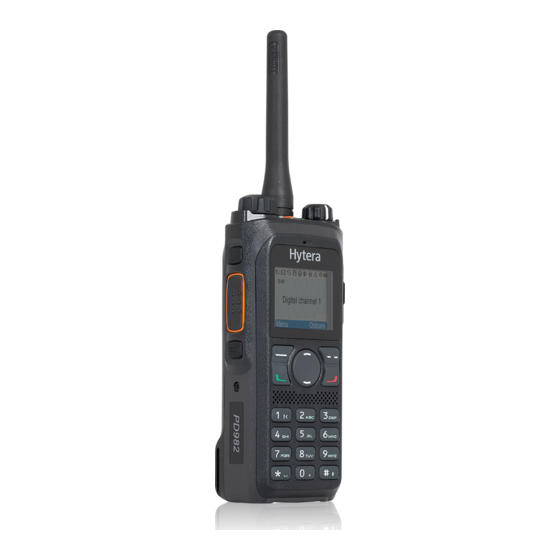

Hytera PD98X User Manual

Dmr conventional radio bt
Hide thumbs Also See for PD98X:
Table of Contents

Advertisement

Quick Links

Download this manual
DMR Conventional Radio BT
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD98X and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera PD98X

Summary of Contents for Hytera PD98X

  • Page 1 DMR Conventional Radio BT User Manual...
  • Page 2 The product describes in this manual may include Hytera’s computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera’s computer programs.

  • Page 3: Table Of Contents

    2. BT Call .................................. 5 2.1 Introduction ..............................5 2.2 Restrictions ..............................5 2.3 Configuration and Operation ........................... 5 2.3.1 PD98X / X1p ............................6 2.3.2 X1e ................................ 9 2.3.3 PD6 and PD7 series ..........................14 3. BT Programming ............................... 16 3.1 Introduction ..............................
  • Page 4 Contents User Manual 5.3.2 Preparations ............................31 5.3.3 Firmware Upgrade ..........................31 5.4 After-upgrade Check ............................. 34 6. BT API ................................35 7. FAQ ..................................36 Abbreviations ................................. 37...

  • Page 5: Documentation Information

     Added BT Firmware Upgrade section to introduce the feature R8.5 August 2017 operation.  Added manual match feature for PD98X and X1p when using the BT call feature. Added the sections as follows: R8.0 October 2016 PD98X / X1p: To introduce how to configure the BT feature and...
  • Page 6 Documentation Information User Manual Version Release Date Description how to connect the radio with the BT audio accessory. PD6 and PD7 series: To introduce how to connect the radio with  the BT audio accessory. Programming: To introduce how to wirelessly program the ...

  • Page 7: Overview

    BT Firmware Upgrade BT Call (transmit or receive the call through external PD6 and PD7 Series BT audio accessory) Application Protocols The BT module of PD98X, X1p and X1e supports following protocols.  BT Protocol (X1p and X1e: V2.1+ EDR; PD98X: V4.0)

  • Page 8: Versions

     R8.5: Added BT indoor positioning feature for PD98X.  R8.0: Added BT programming feature for PD98X.  R7.8: Added BT call, BT firmware upgrade and BT API features for PD98X.  R5.0: Added BT Call and BT firmware upgrade features are available for X1p and X1e.

  • Page 9: Bt Call

    Restrictions  The feature is available only for PD98X/X1e/X1p. Other radios need to connect to an external BT audio accessory to perform BT call.  After the radio is connected to a BT audio accessory, it inputs or outputs the voice through the accessory, and is not affected by the configurations of its speaker and microphone.

  • Page 10: Pd98X / X1P

    PD98X / X1p Operations for PD98X are the same as that for X1p. PD98X Conventional (firmware version R8.5) is taken as the example to introduce how to configure the BT feature and pair with the BT audio accessory. Operations for the XPT Trunking radio are introduced in note.
  • Page 11 User Manual BT Call Note For radios in XPT Trunking mode, the path is XPT Trunking -> General Setting -> Buttons. Step 4 (Optional) Configure the programmable key if you want to switch the audio output between BT earpiece and radio via the key. Configuration Path: Conventional ->...
  • Page 12 1. Go to “Accessories -> BT -> Paired Devices -> Search BT Devices” on radio menu. All detected BT devices appear on radio’s screen. Note For PD98X of R7.8 and X1p, go to “Accessories -> BT -> Paired Devices -> Search  PTT” or “Accessories -> BT -> Paired Devices -> Search Headset”.

  • Page 13: X1E

    User Manual BT Call  Wireless remote speaker microphone (applies to mobile radio): LED indicator flashes in blue rapidly and an alert tone is given. After the successful connection, the radio receives and transmits the calls through the BT audio accessory.
  • Page 14 BT Call User Manual Caution During the configuration, do not disconnect the radio and PC, otherwise, data loss or radio damage may occur. Step 3 Run the CPS. Step 4 Click on the tool bar, or select “Program -> Read from Radio” on the menu bar. The Communication Port dialogue box pops up.
  • Page 15 User Manual BT Call Step 3 Select Open BT to enable the BT feature. Open BT turns into Close BT, and the current BT firmware version (e.g., V1.01.020) is displayed. Step 4 Turn on the BT audio accessory and make it enter the pairing status. Step 4 in section 2.3.1 for the detailed operations.
  • Page 16 BT Call User Manual Note The name of wireless ring PTT above is for reference only.  When the wireless ring PTT appears in BT Device list, you can click Stop Search.  If you want to pair the radio with other BT devices, such as wireless headset, microphone etc., ...
  • Page 17 User Manual BT Call Step 8 Uncheck Close BT option to disable the BT feature. The following dialog box pops up. Step 9 Click OK, and close the BT configuration interface. Step 10 Click on tool bar of the CPS, or select “Program -> Write to Radio” on the menu bar. The Write dialog box pops up.

  • Page 18: Pd6 And Pd7 Series

    BT Call User Manual Step 2 Enable the BT feature of the radio. Short press the SK1 key (the programmable key with BT feature as configured in Step 7 of section 2.3.2) to enable the BT feature. When the BT feature is enabled, the LED indicator glows blue and then flashes in blue once every 3s. Step 3 Turn on the BT devices.
  • Page 19 User Manual BT Call  Automatically 1. Fit the wireless earphone into the wireless adapter and push it to the bottom. The wireless earphone starts to pair and connect with the wireless adapter when their LED indicators flash in blue and red alternatively. 2.

  • Page 20: Bt Programming

    PC (CPS) Restrictions  Wireless programming is applicable only for PD98X with firmware R8.0 or above.  For better performance, please keep the distance between the radio and the BT dongle is within 5 meters.  One PC can perform wireless programming only for one radio at a time.

  • Page 21: Enable The Bt Feature

    User Manual BT Programming Note No matter the PC supports the BT feature or not, a BT dongle is recommended for the BT programming operations. BlueSoleil dongle is recommended for radios overseas. In this chapter, BlueSoleil BT dongle (software 10.0.494.0) is used as the example. 3.3.2 Enable the BT Feature Before using BT programming, you need to enable the BT feature, and then connect the radio to the dongle.
  • Page 22 BT Programming User Manual By the Radio (Recommended) Step 1 Turn off other BT device that is connected with the radio. Step 2 Select “Accessories -> BT-> Paired Devices -> Search BT Devices” on radio menu. All detected BT devices appear on radio’s screen. Step 3 Select the hostname of the PC which the BT dongle is connected with, and then select Connect.
  • Page 23 All detected BT devices appear on the main interface as the below picture. Step 4 Right click the radio icon (BT name of the radio is Hytera by default), and select Pair. After the paring is completed, “Paired” is shown on the left bottom of the main interface.

  • Page 24: Enable Bt Programming

    BT Programming User Manual Step 5 Right click the radio icon, and select Connect Booth Serial Port. After the connection is completed, “Connected” is shown on the left bottom of the operation interface. 3.3.5 Enable BT Programming Step 1 Run the CPS. Step 2 Click on the Tool Bar of the CPS.
  • Page 25 User Manual BT Programming Step 4 Select the BT COM that the radio is connected with, and then click OK. The radio is wirelessly connected to PC. You can wirelessly perform the programming operations, including Read, Write, Clone, Query GPS Version, Import / Export Multilanguage, Load Animation and Language Package.

  • Page 26: Bt Indoor Positioning

    BT Indoor Positioning User Manual 4. BT Indoor Positioning Introduction When the radio cannot be accurately positioned through GPS indoor, you can enable the BT Location to realize the positioning with the indoor BT beacons. The BT beacon is a hardware transmitter developed based on V4.0 BT Low Engergy Technology (BLE). After deployed indoor, it broadcasts data packet to the radios within the communication coverage.

  • Page 27: Restrictions

     The BT Location is a paid feature.  The BT beacons need to be well deployed indoor. For more information, please contact Hytera.  The BT Location and BT API features (e.g., BT programming) cannot be used at the same time. During programming, debugging or scanning, the radio cannot transmit the BT location data.
  • Page 28 BT Indoor Positioning User Manual Note For radios in XPT Trunking mode, the path is XPT Trunking -> General Setting -> Accessories -> BT Location. Step 4 Configure Beacon Info list. CPS Path: Common -> Accessories -> BT Location. Parameters: Alias, UUID and UUID Code. Refer to CPS Help for the parameter description. Note You can import or export the beacon information in batch by selecting “Tools ->...
  • Page 29 User Manual BT Indoor Positioning Step 6 Configure Location Info Revert Channel. The radio may fail to report the location data on the current channel if it is occupied by other radios transmitting voice or data signals. To ensure the timeliness, it is recommended that you choose one dedicated channel to transmit the BT location data.
  • Page 30 BT Indoor Positioning User Manual Note For radios in XPT Trunking mode, the path is XPT Trunking -> Digital Common -> Basic -> Miscellaneous. Step 9 (Optional) Configure BT location menu if you want to enable or disable the feature via radio menu. CPS Path: Conventional ->...

  • Page 31: Repeater Configuration

    User Manual BT Indoor Positioning The BT Location Report option is available only when Button option is selected. See Step 3  section 4.4.1. 4.4.2 Repeater Configuration Step 1 Configure Beacon Info list of the repeater if the repeater is used to dispatch service. CPS Path: Conventional ->...

  • Page 32: Radio Operation

    BT Indoor Positioning User Manual When the repeater is used to dispatch service, its Radio GPS Slot Port must be the same as  Location Port of the radio. Otherwise, the repeater cannot forward the beacon information of the radio. The above parameters are available only when Forward to PC is selected.

  • Page 33: Bt Firmware Upgrade

    User Manual BT Firmware Upgrade 5. BT Firmware Upgrade Introduction The BT firmware can be upgraded through third-party software to fixe firmware bugs, improve BT performance and enhance stability. Restriction The upgrade is only applied to the radio with in-built BT module. Upgrade and After-upgrade Check Before the upgrade, please check BT firmware version of the radio.
  • Page 34 BT Firmware Upgrade User Manual Step 6 Select Open BT. Open BT turns into Close BT, and the current BT firmware version (e.g., V2.01.003) is displayed. Step 7 Uncheck Close BT option. The following dialog box pops up. Step 8 Click OK, and close the BT configuration interface.

  • Page 35: Preparations

    BT feature through the key. When the BT feature is disabled, the icon disappears on radio screen. Step 2 Turn off the radio. Step 3 Connect the radio to PC PD98X as the example, the connection diagram is shown as below.
  • Page 36 BT Firmware Upgrade User Manual PC38 Programming Cable Step 4 Hold TK and SK1 keys, and then turn on the radio. When the radio enters the BT upgrade mode successfully, “BT Upgr Mode” displays on radio screen. Otherwise, it fails. In this case, please turn off the radio and repeat the above operations. Step 5 Run the firmware upgrade software.
  • Page 37 User Manual BT Firmware Upgrade The upgrade is successful if the following dialog box appears. If it prompts “Upgrade Failed”, please retry according to the instructions in the dialog box. Step 8 Click Exit to exit the software. Step 9 Turn off the radio to exit BT upgrade mode.

  • Page 38: After-Upgrade Check

    BT Firmware Upgrade User Manual After-upgrade Check Please check whether the BT firmware has been upgraded to the latest (e.g., V2.01.008) according to 5.3.1 Check BT Firmware Version. If not, please check whether the version of the software meets the requirements, and if yes, please make radio enter the BT upgrade mode and try again.

  • Page 39: Bt Api

    Hytera provides third party with BT API (application programming interfaces) for more applications, including online radio status management, text messages, call controls, radio register service. The BT API is applicable only for PD98X. For details, please refer to Hytera DMR Peripheral Equipment Development Overview and Hytera DMR Peripheral Equipment Development Guide.

  • Page 40: Faq

    User Manual 7. FAQ Q: How to handle the disconnection due to unexpected power-off of the radio or BT device? A: This issue can be solved as below: For BT device  Restart the BT device. The device will automatically connect to the last radio it connected. For the radio ...

  • Page 41: Abbreviations

    User Manual Abbreviations Abbreviations Abbreviations Full Name Application Programming Interface Customer Programming Software Digital Mobile Radio Enhanced Data Rate Global Positioning System Hands-Free Profile Serial Port Profile Extended Pseudo Trunk...
  • Page 42 HyteraCommunicationsCorporationLimited. 2017 HyteraCommunicationsCorporationLimited.
