  • Page 2: Before Use

    Before Use Attaching the Antenna 1. Place the color ring on the antenna connector. 2. Put the antenna on the antenna connector. 3. Rotate the antenna clockwise till hand tight. Caution Do not hold the radio by the antenna, because it may reduce the radio performance and life span of the antenna. Installing the Micro-SIM Card and Micro-SD Card 1. Open the card slot cover on the top of the battery compartment.
  • Page 3 Attaching the Battery 1. Push the battery until it is fully fitted into the slot. 2. Press the battery latch until it is fully fitted into the radio. Charging the Battery Caution Read the Safety Information Booklet before charging. ● Use the approved charger to charge the battery. ● The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium ●...

  • Page 4: Basic Operations

    To determine the charging status, check the LED indicator on the charger according to the following table: LED Indicator Charging Status Glows red The battery is being charged. Glows green The battery is charged to 95%. Flashes red rapidly The battery fails to be charged. Basic Operations Turning the Radio On or Off To turn the radio on, press and hold the On-Off/End key until the splash screen appears. To turn the radio off, do as follows: 1. Press and hold the On-Off/End key until the power-off selection screen appears. 2. Tap Device Power Off, and then tap Sure. Adjusting the Volume To adjust the volume, directly rotate the Smart Knob.

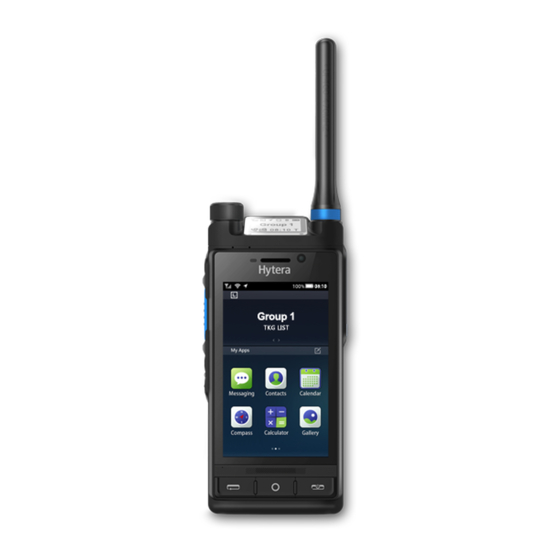

  • Page 5 Product Overview Product Layout Top Key （TK） Programmable ke y. You can set the ke y as shortcut to radio features. Then you can press or hold the key to trigger the assigned features. Microphone 3 LED Indicator 2 LED Indicator 1 Top Screen Smart Key Antenna ● When the main screen is on, press and hold to turn the screen off. ● When the main screen is off, press to turn it on, or Smart Knob Strap Hole Color Ring press and hold to open the camera.
  • Page 6 Understanding the Screens Switching the Operation Mode Caution The radio can operate in NB & BB mode or NB mode. Upon power-on, the radio operates in The screens may be damaged or broken if they are hit or scraped by sharp or hard objects. NB & BB mode by default. All care must be taken to protect the screens. In NB & BB mode, both the top screen and main screen are on. The radio can access both The radio has two screens: top screen and main screen. private and public network services. Top Screen In NB mode, only the top screen is on. The radio accesses only private network services. The NB mode includes the following two types:...

  • Page 7: Status Indications

    Status Indications LCD Icons Main Type Radio Status Screen Screen The number of bars indicates the remaining battery power. Battery power The battery power is low. A 3G/4G network is available. 3G/4G Network The radio is connected to the wireless local area network (WLAN). The radio operates in Airplane mode. The number of bars indicates the signal strength of the BB network. The NB network is turned off. Signal Conventional mode: The radio is in standby state. Trunking mode: The radio detects no signal. The number of bars indicates the signal strength of the NB network. The number of bars indicates the signal strength when the radio operates under a single site in trunking mode. The digit indicates the number of missed calls. The digit indicates the number of unread short messages. Call and An emergency call is in progress. data services The radio is transmitting on an analog channel. A private/group/all call is in progress on the NB network. An accessory is connected. The Bluetooth feature is enabled. A Bluetooth device is connected.
  • Page 8 LED Indications LED Indicator 1 LED Indicator Radio Status Flashes green Being turned on. Flashes green Standby in trunking mode. slowly Glows green Receiving. Glows red Transmitting. ● The radio in trunking mode is making a call. This indication is Flashes red applicable only to the calling radio. ● The battery runs low. Please recharge or replace the battery. Flashes orange ● Conventional mode: Scanning or roaming slowly ● Trunking mode: Registering ●...

  • Page 9: Call Services

    Call Services Group Calls A group call is a call from an individual user to all the other members in the group over the private network. Initiating Group Calls You can make a group call through one of the following ways: Preset Contact ● Conventional Mode 1. Press the Smart Knob. 2. Rotate the knob to select the channel associated with the required group contact. 3. Press and hold the PTT key. ● Trunking Mode 1. Press the Smart Knob. 2. Rotate the knob to select the required group contact. 3. Press and hold the PTT key. Manual Dialing 1. Tap 2. Enter the required group number. 3. Select “ PMR group call ” . 4. Press and hold the PTT key.

  • Page 10: Message Services

    2. Rotate the knob to select the required private contact. 3. Press and hold the PTT key. Manual Dialing To make a private call over the private network, do as follows: 1. Tap 2. Enter the private contact number. 3. Press and hold the PTT key. To make a phone call over the public network, do as follows: 1. Tap 2. Enter the phone number. 3. Press or press and hold the PTT key. Contact list To make a private call over the private network, do as follows: 1. Tap >Private. 2. Tap the required private contact. 3. Press and hold the PTT key. To make a phone call over the public network, do as follows: 1. Tap >Private. 2. Tap the required phone contact. 3. Tap Receiving Private Calls and Phone Calls Private Call...
  • Page 11 » To add the message to the favorite list, tap More > Favorite. To view the favorite messages, tap “ My favorites ” . » To view the message details such as message type and sending time, tap More > View details. For details on more features and operations, please visit our website at: http://www.hytera.com, or scan the QR code to download the relevant user manual.
  • Page 12 Hytera Communications Corporation Limited. 2017 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Z18512 D03207 Shenzhen, People's Republic of China Postcode: 518057 http:// www.hytera.com...
