Summary of Contents for VISICO KD-2RX

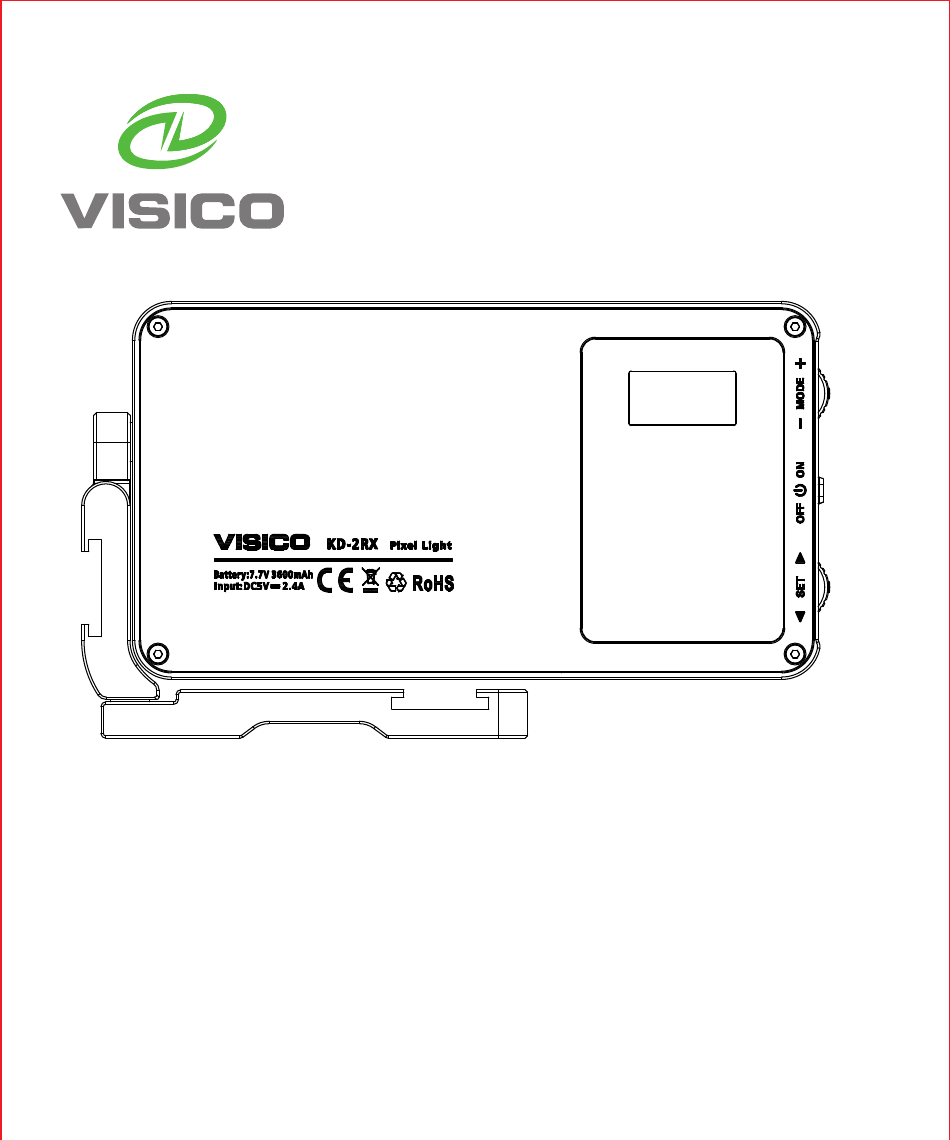

- Page 1 KD-2RX Multi-color Video Light User Manual...
-
Page 2: Table Of Contents
Technical Data ..... VISICO Light APP Control Thank you for choosing the Visico Full Color LED Video Light. Please read the safety instructions and user manual carefully before use to ensure you can make the best use of this product. Please keep the user manual safe. -
Page 3: Safety Instructions
Safety Instructions Please do not place the light near flammable materials, as it may cause a fire. Do not use in high temperature, humid, or flammable environments. Keep the product away from rain to prevent fire or electric shock. Avoid prolonged exposure to direct sunlight. Do not use the light if the housing is damaged. -
Page 4: Component Names
Component Names ② ① ③ ④ ⑤ ⑤ ⑥ ⑥ ⑧ ⑨ ⑥ ⑩ ⑦ 1. High-Definition Display 6. 1/4 Screw Hole Screen 7. Type-C Charging Port 2. MODE Button / Parameter 8. LED lamp bead Adjustment Dial 9. Universal Foot Screw Hole 3. -
Page 5: Button Functions
Button Functions Buttons Operation Press SET button to enter the language and ID selection interface. Scroll up and down with SET button to select the desired adjustment option. Press MODE button to select CCT / HSI / EFFECT / PIXEL FX in sequence. MODE Scroll up and down with MODE button to change the parameter value. -
Page 6: Power Supply Mode
Power Supply Mode Built-in high-capacity lithium battery, providing a full-power endurance time of up to 125 minutes. Attention： 1. If the product has not been used for an extended period, please charge it first to ensure it has power before using the product. 2. -
Page 7: Set Ld
ID number. These ID number will diaplay on "VISICO LIGHT" app, and you can clearly identify and control every light via app. Press SET button to access the SETUP Menu. Scroll up and down with SET button to select ID. -
Page 8: Set Hsi
Set HSI Press MODE button to select HSI mode. Scroll up and down with SET to switch between DIM, HUE, and SAT (saturation). Scroll up and down with MODE button to adjust value of DIM, HUE, and SAT (saturation). Dimming range is 0%-100%. Hue range is 000-360. Saturation range is 000-100. -
Page 10: Set Effect
Set Effect Press MODE button to select special effect mode. Scroll up and down with MODE button to switch between different special effect. Scroll up and down with SET button to switch between the positions of the function that needs to be set. Scroll up and down with MODE button to change the parameters of each function option. -
Page 11: Pixel Effect
Pixel Effect The pixel effect mode includes 12 modes, including Hue Loop, CCT Loop, INT Loop, Multicolor, Fade, Process, Scroll, Fire, Rainbow, Driving, Police Car, and Ambulance. The setting method for pixel effect is the same as for special effect. Note: Process, Fire, and Driving are displayed only when adjusted through the app. -
Page 12: Bracket
Bracket Used on desktop Used with cold shoe Used with cold shoe mount Used with 1/4" screw spigot Flexible adjustment of lighting angle... -
Page 13: Technical Data
Technical Data Model No. KD-2RX Power Number of LEDs 40pcs 2700K LEDs, 40pcs 6500K LEDs, 70pcs RGB LEDs Illuminance at 963 lux/0.5m 5500K CCT, HSI, 15 Fx effects, 12 pixel effects Modes Color Temperature 2700-10000K Range Hue range 000-360 TLCI... -
Page 14: Visico Light App Control
VISICO LIGHT APP CONTROL Apple mobile phone users scan the QR code below to download the "VISICO LIGHT" APP from the Apple App Store (supports IOS version 9.0 or higher) Android phone users scan the QR code below and use a browser to open and download the "VISICO...
