Summary of Contents for VISICO VISICO2

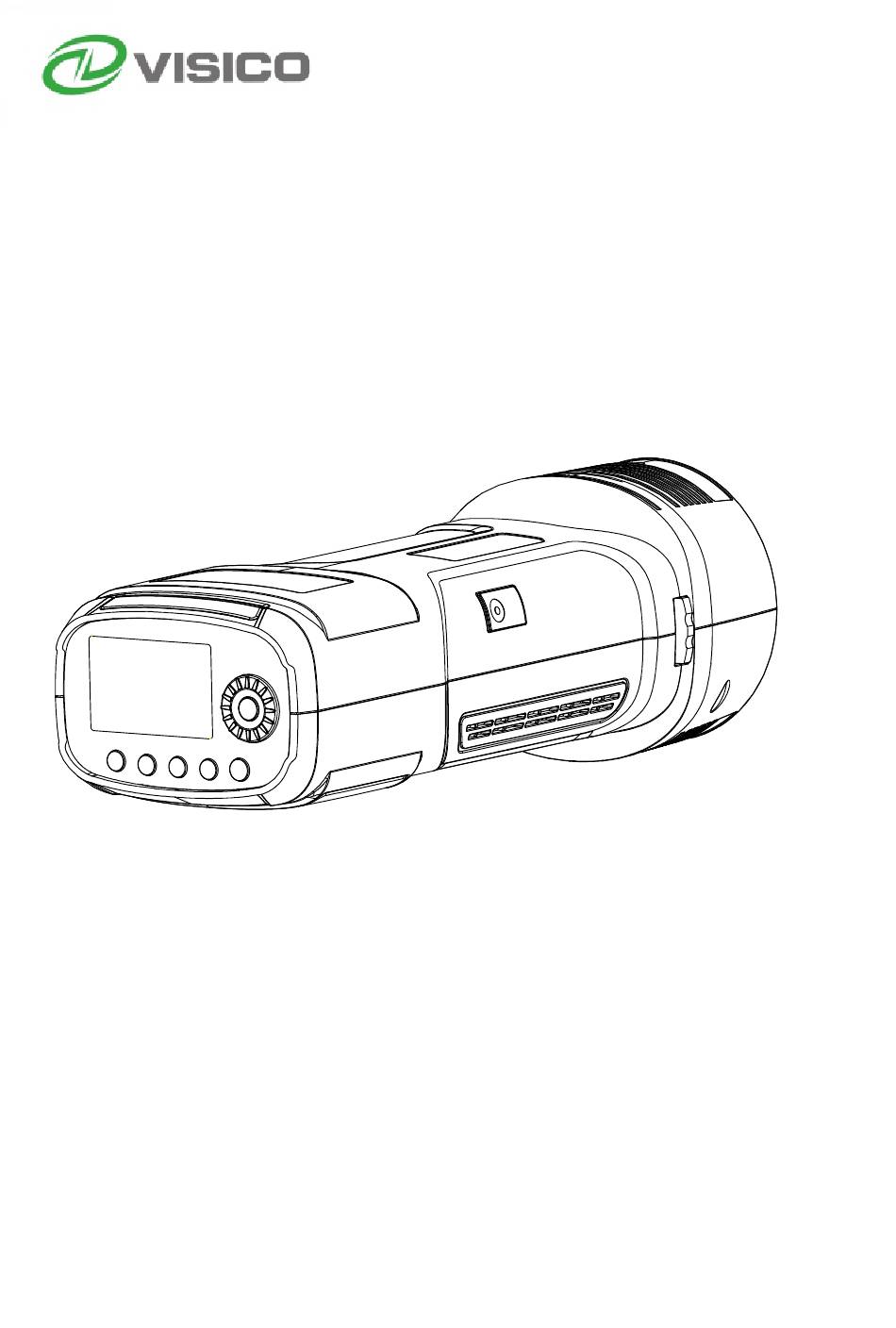

- Page 1 VISICO2 Pocket Light User manual...
-
Page 2: Table Of Contents
Auto Standby ........15 Constant Color Mode ..........16 Mask ........16 Setting ID Number ........17 Restore Factory Settings ....17 Using VISICO Transmitter (not included) ..........17 Error Codes ....18 Flash Capacitor Preventative Maintenance ........18 Changing Flash Tube ........19 USB Firmware Update .........20 Technical Data... -
Page 3: Introduction
LED modeling lamp without leaving the camera. VISICO2 is also used with a dedicated range of light shaping accessories to personalize your work. VISICO2 flash frees your camera to go out and shoot at will - whether you are a wedding or event photographer, environmental portraiture shooter, freelance commercial illustrator, photojournalist, a backpack adventurer, or fast action sports snapper. -
Page 4: Safety Note
The manual is based on the assumption that both camera and flash light are powered on. This Caution symbol indicates a warning to avoid shooting problem. Content of Carton Your VISICO2 flash light should include the following items, please check carefully. 1x VISICO2 Studio Flash (included Lithium battery) 1x Charger... -
Page 5: Name Of Parts
Name of Parts Reflector 2.5mm Reflector Photocell Operation Panel Releasing Button Sync Cord Input Power Switch Replaceable Battery Battery 1/4" Releasing Upgarde Mounting Button Terminal Hole... -
Page 6: Operation Button
Reflector Bayonet Flash Tube LED Modeling Lamp 灯管 LED造型灯泡 Operation Button Transmission Channel and Group Setup Button Flash Mode Selection Button Modeling Lamp Button Menu Button Test Button Select Dial Confirmation Button... - Page 7 Button Operation 1. Shortly press to set group CH/GR 2.Press and hold 3 seconds to set channel number Shortly press to select flash mode M manual MODE flash,Multi stroboscopic flash, TTL auto flash in sequence Shortly press：Control modeling lamp OFF/ Modeling Lamp 1/2/3/4/5/6 MENU...
-
Page 8: Lcd Panel
LCD Panel 1. TTL Auto flash 9. 2.4G wireless signal 2. M manual flash/ transmission Multi stroboscopic 10. S1/S2 Optical slave flash Flash 11. Recycling indicator 3. Transmission channel 12. Flash Recycling Ready 4. Group 13. Audio beep 5. Battery power display 14. -
Page 9: Mount Reflector
Mount Reflector Push Releasing Button back towards the rear of the unit, Align the four pegs on the reflector with the four slots on flash body. Pull reflector in and rotate clockwise until it locks in place (Fig 2). CAUTION: Always switch off the unit before mount and demounting reflector. - Page 10 Battery Level Battery level Battery level indicator full battery medium battery Lower battery Charge battery before it runs out. Note: Use or stock battery only after charging. Caution Do not short circuit Do not expose to rain or immerse into water. Keep out of reach of Children Do not continuous charge the battery over 24 hours.
-
Page 11: Switch On Flash Light
Input. Supporting flash mode: <M> and <MULTI> 2)2.4G wireless radio trigger Use VC-818TX transmitter to trigger VISICO2 flash light synchronously. Supporting flash mode: <TTL>,<M>,<Multi> Operating Modeling Lamp Shortly press【 】button, brightness of modeling lamp varies from 1, 2, 3, 4, 5, 6 and “OFF”... -
Page 12: Flash Mode-M Manual Flash
Flash Mode-M Manual Flash When use flash in manual mode, flash output power is adjustable from 1/1 to 1/256 with 1/3 f-stop increment. 1)Set flash mode <M> Shortly press [MODE] button, flash mode set as <M>. 2)Set flash output power Rotate [Select Dial] to set flash output power. -
Page 13: Flash Mode-Ttl Auto Flash
Shutter Speed=Number of Flashes / Flash Frequency Flash Mode-TTL Auto Flash VISICO2 flash light is integrated with TTL communication function. Mounting VC-818TX transmitter on camera, the camera and flash will work together to release proper exposure. Whether shoot in scene where ambient light varies, or shoot for fast moving events, you will have proper exposure. -
Page 14: High-Speed Sync
Flash Exposure Compensation (FEC) FEC is very useful to make quick minor adjustment of exposure of the TTL system, and create ideal exposure as you like. 1) Set Flash Exposure Compensation (FEC) Rotate [Select Dial] to set FEC value. The FEC range is adjustable from -3 to +3 in precision 1/3 f-stop increments. -
Page 15: More Functions
Note: For effective trigger, please set VISICO2 flash and VC-818TX transmitter at the same channel. To adjust flash mode and parameters, please set VISICO2 flash and VC-818TX transmitter at the same group. More Functions 1.Press [MENU] button to select functions listed in the following table. -
Page 16: Audible Beep
Setting Function Function Description Restrictions Code Icon Enable Beep Disable S1 mode Optical M mode S2 mode Mode Disable 60 minutes Auto standby without any Auto 20 minutes operation Standby Disable Constant Color M mode Temperature Mode Trigger 2 times for 1 cycles, 1th flash of trigger Trigger 2 times for... -
Page 17: S1 And S2 Optical Mode
S1 and S2 Optical Mode In <M> manual mode, the flash can function as optic S1 and S2 with optic sensor. In <S1> mode, the slave unit will auto flash immediately when the master flash fires. In S2 mode, the unit will neglect the pre-flash and only fire in response to the second main flash. -
Page 18: Mask
Mask Mask function is very useful for high-volume product photography, where you often want to mask out the background. If you define your key lights as one group set to n1 (1th flash of trigger), and your background lights as the other set to n2 (2nd flash of trigger). All lights are set in M mode. -
Page 19: Restore Factory Settings
Using VISICO Transmitter (not included) 1. VC-818TX transmitter can trigger and control VISICO2 flash light directly. 2.Attach a VC-16RX receiver on VISICO2 flash light, use VC-801TX, VC-816TX and VC-16TX transmitter to trigger VISICO2 flash light. -
Page 20: Flash Capacitor Preventative Maintenance
Flash Capacitor Preventative Maintenance One of the most important components of an electronic flash is the capacitor. Following the preventative maintenance below will increase the life and the reliability of your flash. If the unit is left unused for 3 months or predominantly used at low power settings, it is recommended that the power be increased to maximum and the unit left switched on (modeling lamp OFF) occasionally for at least 30 minutes to help preserve the life of the... -
Page 21: Usb Firmware Update
Fig. 4 Fig.6 USB Firmware Update 1）Visit VISICO official website (www.visico.com) to download the firmware upgrading drive and the firmware of the latest version. 2）Turn off the power, and press and hold [CH/GR] and [MODE] button, meanwhile, switch on the power. Then, the screen will display “UP”... -
Page 22: Technical Data
Technical Data VISICO2 Model No. 200Ws Output power 1/256-1/1 Output control range LED modeling lamp Color temperature 5600±100K (in constant color temperature mode) Flash duration (not in constant 1/650-1/10000s color temperature mode) TTL/M/Multi Flash Mode Number of Flashes 20， Stroboscopic flash... - Page 23 VISICO Facebook VISICO Website YUYAO VISTAR ELECTRONIC SCIENCE & TECHNOLOGY CO., LTD No.206 BEIXING ROAD OF WEST CITY INDUSTRIAL DEVELOPMENT ZONE, YUYAO CITY, ZHEJIANG, CHINA 315450 TEL: +86-574-62803099 FAX: +86-574-62803111 EMAIL: info@vistarfoto.com WEB:www.visico.com...
