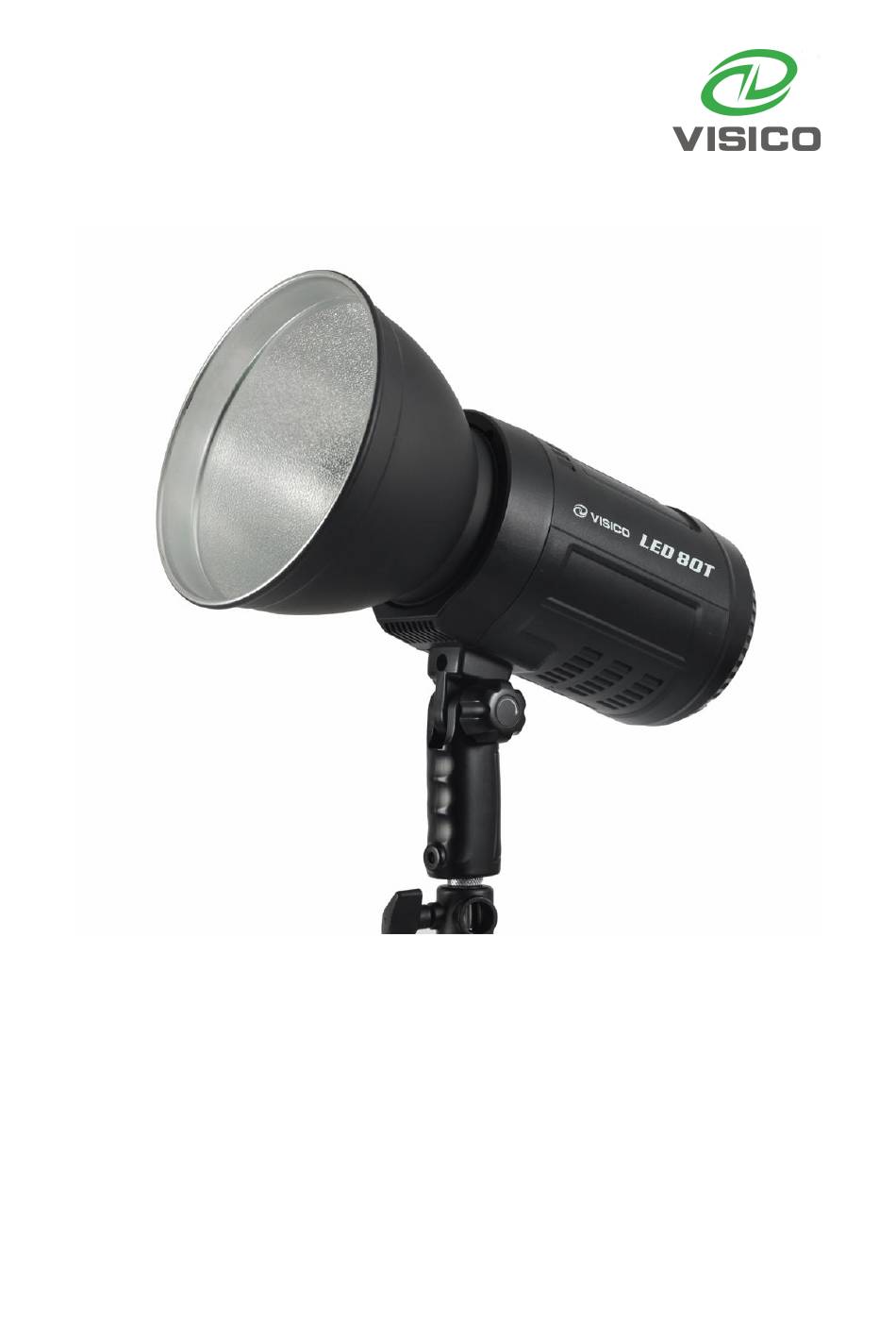

- Page 1 LED-80T II USER GUIDE...
- Page 2 1/ Safety Notes Do not use your LED unit in an environment where moisture or flammable vapor is likely to come in contact with the unit. A fire hazard exists if flammable materials are placed in close when the unit is in use.
- Page 3 Fig.1 Fig.2 Fig.3 3.2 Release protective cover •To remove black plastic cap, push the latch knob back towards the rear of the unit and rotate the protective cap anti clockwise. (Fig.1) 3.3 Install light reflector •Install standard reflector where the black plastic was before. Align the three pegs on the reflector with the three slots, press the reflector in and rotate clockwise until it locks in place.
-
Page 4: 4/Control Panel
4/Control Panel A LCD screen B Regulator C Power socket D Umbrella holder E Fuse F Mains power switch G Knob 5/ Power Supply Connections Use only the power cord supplied or NP-F950/970 battery (not include) to connect to the main power. - Page 5 1) When using power cord, turn the switch to "AC" position to turn on the led light. 2) When using NP-F950/970 battery, turn the switch to "DC" position to turn on the led light. 3) Turn the switch to the "OFF" position, turn off the led light 6/ Set Channel and Group Press CH button, CH number blinks, rotate Regulator to select channel number from 01-32.
- Page 6 ≥95 TLCI ≥97 AC100-240V 50-60Hz or 2pc NP-F Power supply 950/970 battery (not include) Size 21x12x12cm Weight 1.3kg Due to our policy of constant product improvement we reserve the right to ★ change equipment specifications without notice. VISICO LIGHT APP...
- Page 7 Download the “VISICO LIGHT”app directly from the App Store or the Google Play Store (iOS 9.0 or superior, Android 5.0 or superior).
