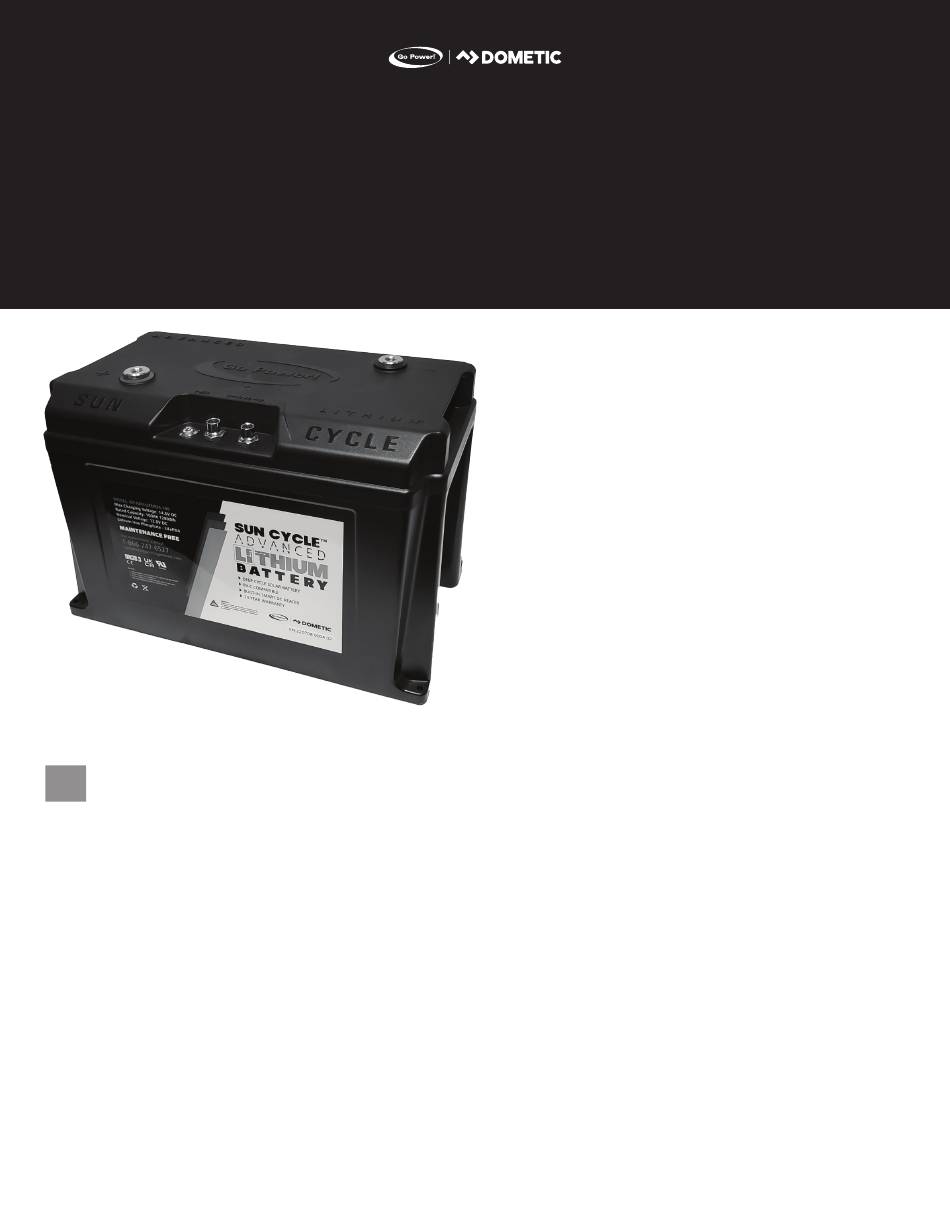

- Page 1 POWER & CONTROL BATTERIES GP-ADV-LIFEPO4-100, GP-ADV-LIFEPO4-300 Battery Installation and Operating manual........3...
- Page 2 Copyright © 2023 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned...
-
Page 3: Table Of Contents
This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com. -
Page 4: Scope Of Delivery
• Do not use defective batteries. WARNING! Health hazard Keep the battery out of the reach of children. CAUTION! Electrocution hazard • Keep the battery away from water. • Avoid short circuits. • Avoid clothing rubbing against the battery. • Wear antistatic clothing when handling the battery. CAUTION! Explosion hazard •... -
Page 5: Target Group
• Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 7 Technical description The advanced LiFePO4 battery offers the desired features like charging below freezing, series connected batteries as well as bluetooth and RV-C connectivity. -
Page 6: Installation
Heater There is a heater inside the battery on the bottom side of the cells. This heater is controlled by the BMS and allow the battery to be charged in ambient temperatures as low as -20 °C. The BMS implement three modes for heater control. Mode Heater Function Auto... - Page 7 • 1 (power button with status LED) • 2 (RV-C Ports) • 3 (integrated heater for low temperature charging) • 4 (slanted sides prevent batteries from being installed without an air gap between them for cooling) • 5 (integrated screw holes for easy mounting. This works well for width limited enclosures) •...
- Page 8 Mounting Instructions 100Ah 300Ah Mount the battery on wall either in vertical or standing position with the screws and the mounting bracket. Do not mount the battery on the wall without the mounting bracket. Do not mount the battery on the wall with mounting bracket in horizontal position. Maximum of 8 batteries can be connected in parallel.
- Page 9 App Configuration Download the Go Power Connect! app. Add device for the GP-ADV-Lithium battery. Setup one master battery by pressing and then configure each individual battery. Press Indicate to blink the power LED for physical reference of the current battery configured. Press Setup for each individual battery to configure in series or parallel, priority, and battery instance.
- Page 10 Press Load system to run the main functionalities. Monitor the battery voltage, DC current, power, Ah remaining, time remaining, charge state and battery temperature. Wiring...
- Page 11 Note Damage Hazard Make sure that the batteries are in power OFF mode before connecting. Configure the battery pack as follows: 1. Press the button 2 seconds or charge to wake up each battery pack, battery enters power ON mode and LED is solid light. 2.
-
Page 12: Operation
Discharging The battery should be discharged at less than the maximum discharge current. High discharging current may reduce the discharging capacity significantly or cause over-heat. The battery should be discharged within the discharging temperature range. To prevent over-discharging, the battery should be charged periodically to keep about 60% charge. Over-discharging may cause loss of battery performance, characteristics or battery functions. -
Page 13: Storage
11 Storage Battery is shipped in shutdown mode, and SOC is about 30% by air shipment, about 50 % SOC by sea shipment. The storage environment requirement is as follows: -20 °C~25 °C ＜18 months Max. 80 % RH Storage Temperature range °C (At 50 % SOC in shutdown mode and specified temp, re- coverable capacity in % vs time/30 % ) 25 °C~45 °C ＜... -
Page 14: Disposal
14 Warranty Go Power! warrants the GP-ADV-LIFEPO4-100 for a a pro-rated period of ten (10) years from the date of shipment from its factory. Please visit our knowledge base online for the pro-rates. This warranty is valid against defects in materials and workmanship for the ten (10) year warranty period. -
Page 15: Technical Data
15 Technical data For the below table, all items are minimum performance values and “must have” UNLESS indicated otherwise. 100 Ah 300 Ah Nominal voltage 12.8 V Nominal capacity Cycle life 3000-5000 cycles Charge 100 Ah 300 Ah Charging temperature range -20 °C …... - Page 16 100 Ah 300 Ah max charge/discharge current 100 A/100 A Over charge protection over charge protection voltage 3.8 V±0.02 V/cell over charge protection delay time over charge release voltage 3.6 V±0.02 V/cell Over discharge protection over discharge protection voltage 2.3 V±0.1 V/cell over discharge protection delay over discharge release voltage min cell voltage recover to 2.8 V±0.1 V and charg-...
- Page 17 100 Ah 300 Ah MOSFET temp<=90 °C Low temperature alarm min cell temp<3 °C Low temperature alarm clear min cell temp>=5 °C Discharge current alarm discharge current>130 A Discharge current alarm clear discharge current<100 A Low SOC alarm remaining capacity <7 AhOR min cell voltage<=2500 mV Low SOC alarm clear remaining capacity >=7 Ah OR min cell voltage>=2800 mV power ON mode...
