Electrical Connection
• The buckles must be on the same side. Otherwise, the may be damaged.
• The longest connection distance between the router and the equipment should be
no more than 100 meters; if there is a wall between the router and the equipment,
the longest connection distance is 20 meters.
• When the WiFi signal is weak, please install a WiFi signal booster at the appropriate
location.
• Please refer to Pocket WiFi + LAN Installation Guide for instructions on configuring
the WiFi. It is important to note that the WiFi configuration should be performed after
powering on the inverter..
LAN mode:
»
Disassemble the waterproof connector into components 1, 2 , 3 and 4;
Component 1 is not used. Keep it in a safe place.
»
Assemble the dongle.
»
Plug the dongle to the inverter.
130

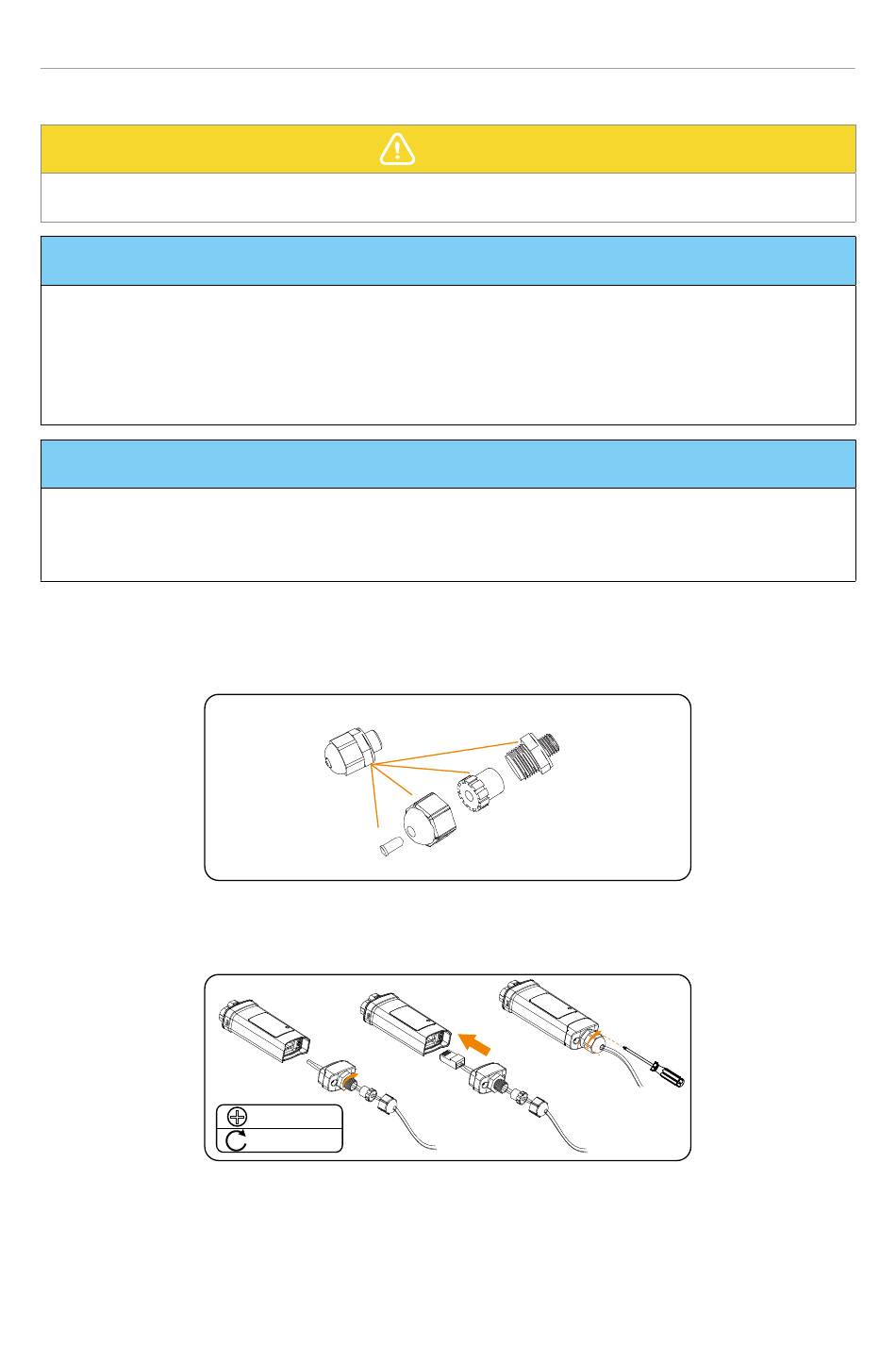

Figure 7-71 Disassembling the waterproof connector
M2.5
0.8±0.1 N·m
Figure 7-72 Assembling the LAN
CAUTION!
NOTICE!
NOTICE!
4
3
2
1
