Step 6: Put the terminal block, the rubber sealing stopper into the AC connector. Screw
the swivel nut tightly.
Step 7:
Pull up the latch on the AC connector.
Step 8: Remove the dustproof cover on the Grid & EPS port of the inverter.
Step 9: Plug the AC connector into the Grid & EPS port of the inverter and tighten the
lock on the AC connector.
Click!

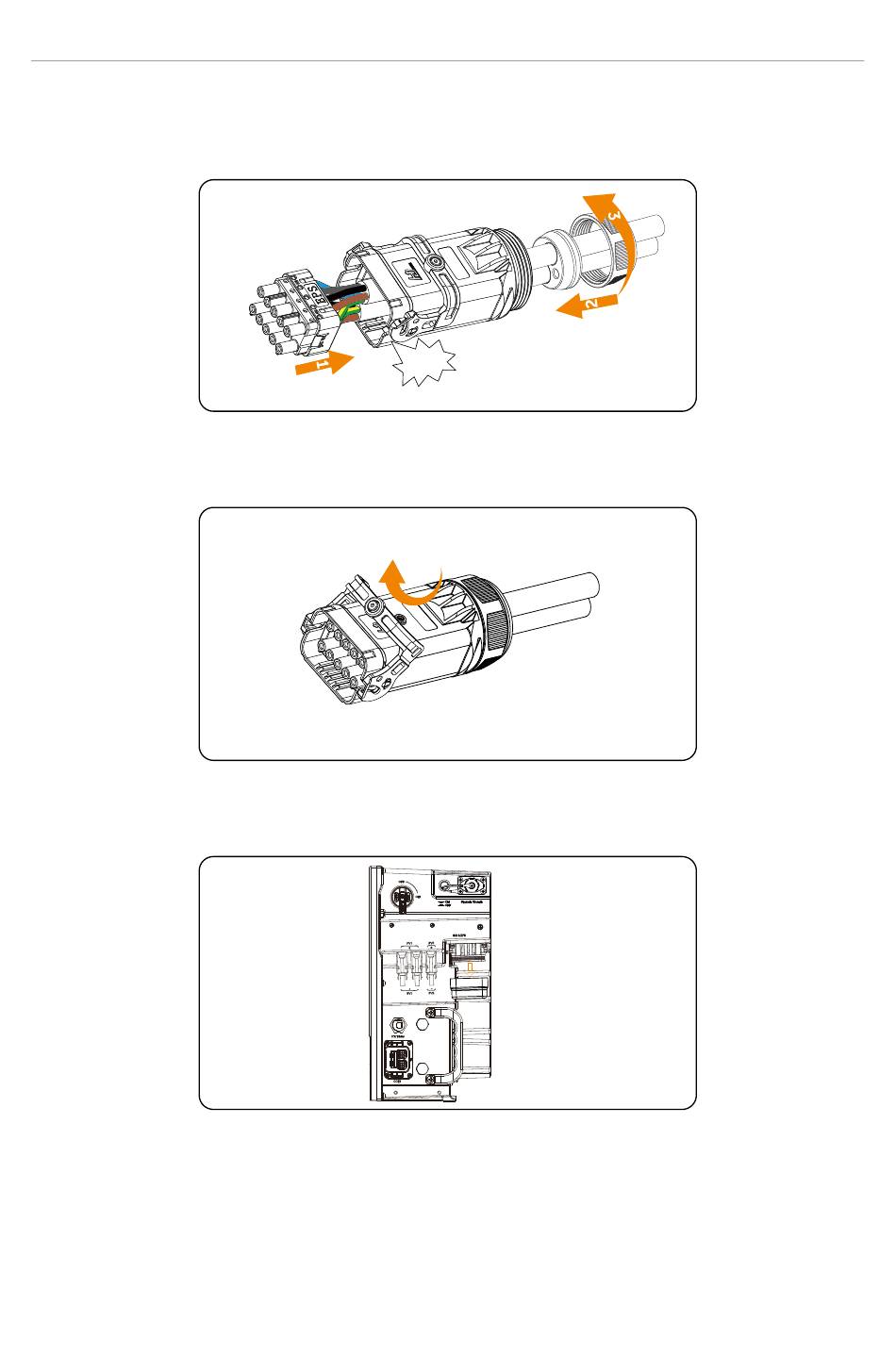

Figure 7-24 Wiring the AC connector
Figure 7-25 Pulling up the latch
Figure 7-26 Removing the dustproof cover
