Summary of Contents for Winterwarm QSE

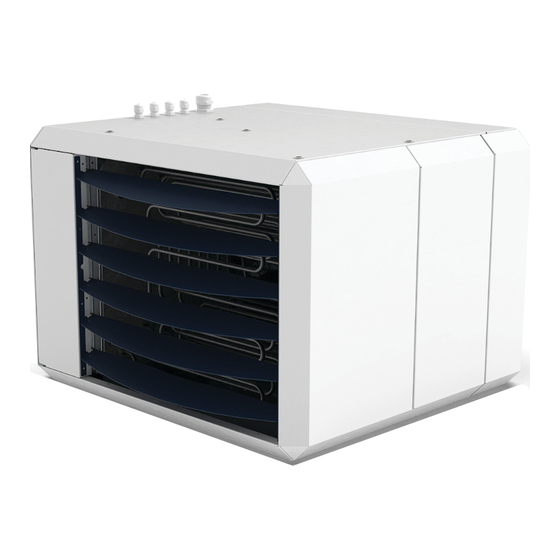

- Page 1 Installation manual Air heater Type QSE EN - v2.6 / 03-2024 ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents 1. Introduction 6. Commissioning the air heater 1.1. Symbols used in this manual 6.1. Adjusting the settings 1.2. Warranty 6.2. Commissioning the air heater 2. Safety instructions 7. Troubleshooting 2.1. Installation 7.1. Volatile lock outs 2.2. Use 7.2. Temporary errors 2.3. -
Page 3: Introduction
NOTICE Failing to follow the safety instructions in this manual can lead to damage to the air heater or the installation and void the warranty. INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 4: Safety Instructions
2. Safety instructions Always follow the safety instructions in this chapter when CAUTION! Do NOT cover de heater when it is in use to installing, using or performing maintenance on this air prevent overheating! heater. 2.3. Maintenance & Cleaning 2.1. Installation Frequent maintenance and cleaning of the air heater is CAUTION! This air heater must be installed and... -
Page 5: Technical Specifications
37.02 37.49 38.09 38.04 38.00 37.96 37.87 37.78 Space Heating η Modulating EC fan * At supply temperature (35 - 30°C), room temperature 20°C. ** Supply temperature (12 - 17°C) 27°C ambient 50% RH. INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 6: Dimensions
3.2. Dimensions The dimensions of this air heater can be found in figure 1. 4x M10 water OUT 1" Condens OUT water IN 1" 4x M10 Condens OUT Figure 1 - Dimensions of the QSE Dimension Unit QSE6 QSE12 QSE16 1083... -
Page 7: Installation
Also make sure the air intake is free from QSE12 - QSE16 Wall support GA8580 obstacles. • Make sure enough space remains to open the door of the air heater. • Make sure the wall can support the air heater. INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 8: Electrical Connection
Figure 4 - Wall support GA8610 Model(s) QSE6 Figure 6 - Vertical suspension NOTICE The water connections of the air heater must always remain horizontal due to venting of the internal pipes. Position the heater so that the return connection (cold water) is the lowest. -
Page 9: Room Thermostat
Connect the cable’s earth shield only to the earth terminal inside the air heater. Do not connect the • When replacing this fuse, always use one of the other end of the cable’s earth shield. same type (5AT). INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 10: Heat Pump
NOTICE A cable with a thickness of less than 0.34 mm will result in a poor signal. NOTICE A cable that is not shielded may result in a disturbed communication in an EMC-unfriendly environment. Figure 11 - Connection for the hybrid heater in the heat pump 4.6. - Page 11 * The expansion vessel is only necessary for pipes exceeding a certain length. Refer to the heat pump manual for details. ** Place the filter in the return line to the heat pump at the lowest possible point. INSTALLATION MANUAL AIR HEATER TYPE QSE...
-
Page 12: Operating The Air Heater
5. Operating the air heater 5.1. Minimum heating time 5.3. Summer ventilation The electric part of the hybrid air heater will always run for The fan can be set to run in the summer. Follow the at least 10 seconds, even if the heat demand stops. This is instructions in the user manual of the Smart Controller or to prevent frequent starts and stops. -
Page 13: Troubleshooting
E-error for more than 24 E-27 and 28 Heat exchanger Heat exchanger sensor hours sensor error short-circuit L-8 to 12 Internal error Internal error E-34 Reset button Too many reset actions in error a short timespan INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 14: Warnings
Display Error type Description Case # Case 9: Too many reset actions in a short timespan. E-36 Overheating Heat exchange sensor is overheated • This error will disappear after some time or if the E-38 and 39 Heat exchanger Heat exchanger sensor main power is disconnected for a while. -
Page 15: Maintenance
Some checks can only be performed when the heater is running. Do the following: 1. Reconnect the air heater to the power supply. 2. Switch on the air heater. 3. Check if the heater operates without problems. See §7. if any errors occur. INSTALLATION MANUAL AIR HEATER TYPE QSE... -
Page 16: Electrical Wiring Diagram
9. Electrical wiring diagram A complete electrical wiring diagram is shown in figure 15. Figure 14 - Electrical diagram of the QSE... - Page 17 J12- 5 J5- 1 J12- 3 20K@25°C J5- 2 J12- 6 Modbus J5- 4 J5- 3 J8- 1 LED RESET J8- 2 Figure 15 - Electrical wiring diagram QSE QSExx + 5-10 QSExx + 15-40 INSTALLATION MANUAL AIR HEATER TYPE QSE...
-
Page 18: Exploded View And Spare Parts
The parts of the air heater are shown in an exploded view in figure 16. The table below describes each part and shows the correct article number for a replacement part. Figure 16 - Exploded view of the QSE Description... -
Page 19: Disposal And Recycling
Goods should be installed and used in accordance with our instructions and with the applicable local and international rules. Installation should be done by an authorized, qualified and competent installer. Winterswijk, June 15 2023 Ir. M. Fiselier Technical director INSTALLATION MANUAL AIR HEATER TYPE QSE...
