- Page 1 User Manual HDTVVPX5014K60 WolfPack 4K 60 Hz 5x1 Multiviewer V24.03...
- Page 2 Important Safety Information 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Do not use this product near water. Keep away from wet places, such as: spas, pools, sinks, laundries, wet basements, etc. 4. When cleaning, unplug the switcher and wipe with a dry cloth. Do not use damp cloths, cleaning fluids, or aerosols which may result in electric shock, fire, or switcher damage.
-
Page 3: Table Of Contents
Content 1. Introduction ............................4 2. Feature ..............................4 3. Specification ............................4 4. Panel ......................... 错误！未定义书签。 5. Connect diagram ..........................6 6. Modes ..............................6 7. Remote controller ..........................6 8. Central Control Commands ........................7 9. After sales ............................11... -
Page 4: Introduction
1. Introduction This product is a real WolfPack 4K 60 Hz 5x1 Multiviewer with seamless switching (*when in single-window mode) and and scaling functions, it supports four 4K60 and 1 Type-C inputs and 1 HDMI2.0 output with 3.5mm audio out and USB2.0 capture. -

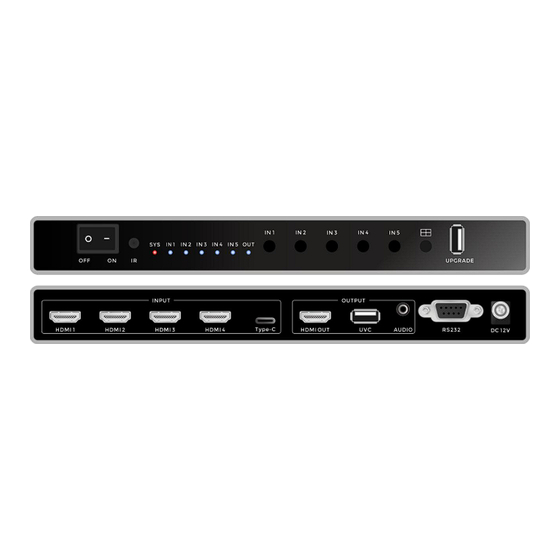

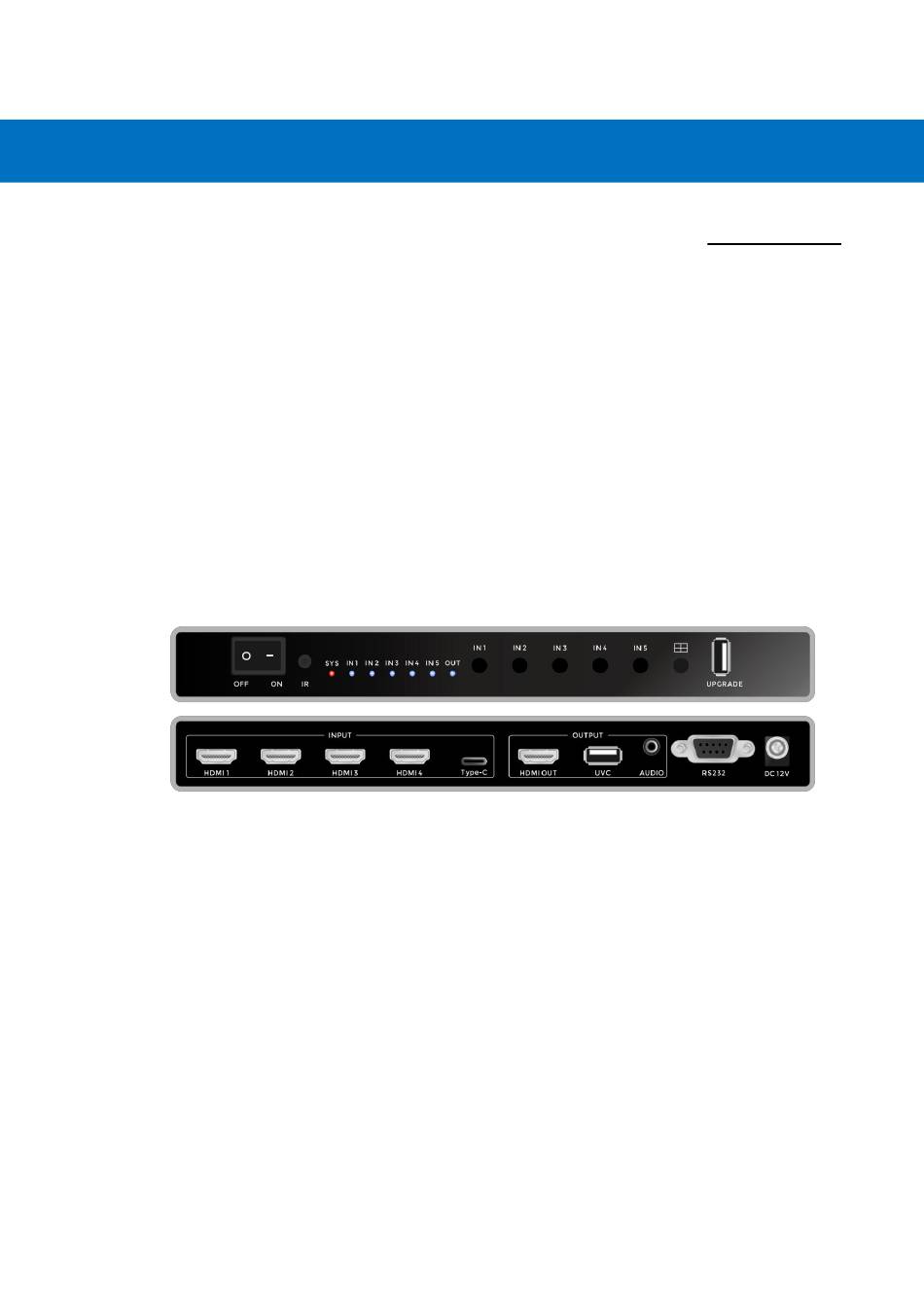

Page 5: Panel
Video Control IN1: Input 1 IN2: Input 2 IN3: Input 3 Single-view mode Front control IN4: Input 4 IN5: Input 5 田: Default input 1 to input 4 Quad-view mode All the functions of the button can be realized through the remote control, and it also supports fast switching. -
Page 6: Connect Diagram
5. Diagram 6. Working Modes IR Remote control Reset to factory: WIN+LOAD+SAVE *press all 3 buttons 3 times Front button Lock: WIN+LOAD *press all 2 buttons 3 times Front button Unlock: WIN+LOAD *press all 2 buttons 3 times... -
Page 7: Central Control Commands
8. RS232 Control Commands RS232 cable with straight-through connection Communication protocol: Baud rate: 115200 Data bit: 8 Stop bit: 1 Check bit: None All control instructions are sent in hexadecimal mode or the ASCII format, below are showing as HEX format. Factory Reset: EB 90 00 12 00 ff 21 00 00 00 00 00 00 00 00 00 00 00 Resolutions:... - Page 8 Scenes Recall: Scene 1: EB 90 00 12 00 ff 2E 00 00 00 00 00 00 00 00 00 00 00 Scene 2: EB 90 00 12 00 ff 2E 01 00 00 00 00 00 00 00 00 00 00 Scene 3: EB 90 00 12 00 ff 2E 02 00 00 00 00 00 00 00 00 00 00 Scene4: EB 90 00 12 00 ff 2E 03 00 00 00 00 00 00 00 00 00 00 Scene 5: EB 90 00 12 00 ff 2E 04 00 00 00 00 00 00 00 00 00 00...
- Page 9 Audio Channel Switching: Audio channel 1: EB 90 00 12 00 ff 30 00 00 00 00 00 00 00 00 00 00 00 Audio channel 2: EB 90 00 12 00 ff 30 0100 00 00 00 00 00 00 00 00 00 Audio channel 3: EB 90 00 12 00 ff 30 02 00 00 00 00 00 00 00 00 00 00 Audio channel 4: EB 90 00 12 00 ff 30 03 00 00 00 00 00 00 00 00 00 00 Commands in ASCII format:...
- Page 10 SET WIN1 SIZE 800 600. SET _WIN MODE_. // Set multi- x win mode N SET 1WIN MODE1. -> 1WIN MODE1 SET 2WIN MODE1. -> 2WIN MODE1 to N SET 3WIN MODE1. -> 3WIN MODE1 to N SET 4WIN MODE1. ->...
-
Page 11: After Sales
9. After-Sales 9.1 Warranty Information The Company warrants that the process and materials of the product are not defective under normal use and service for 2 (2) years following the date of purchase from the Company or its authorized distributors. If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the payment which users have made.
