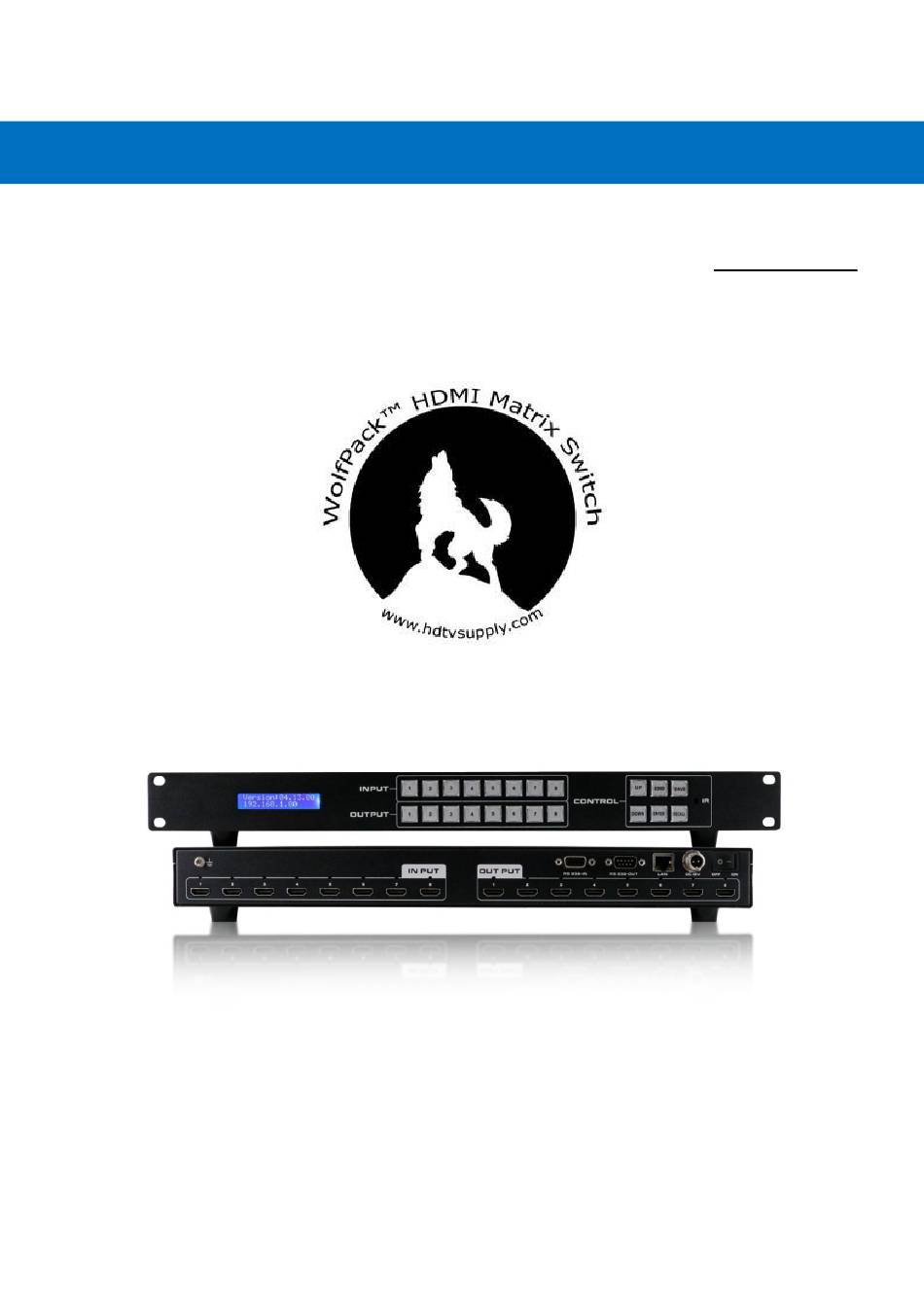

USER MANUAL Fixed 4K 4x4 HDMI Switcher w/ Apps, RTI, URC, Control4 & Elan Drivers HDTVFIX400E...
Page 2
Version: V2.0.1 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection.
Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
1. Product Introduction This is a new fixed 4K2K HDMI matrix switcher with 4 HDMI input ports and 4 HDMI output ports, the resolution can up to 4K30Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and PC control software control and the smart EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI...
6. Panel description Front panel LCD screen: for the switching, EDID, IP etc information display. OUTPUT: 4 HDMI output buttons INPUT: 4 HDMI input buttons CONTROL: UP:for upward controlling EDID:Press it to enter EDID set mode. EDID Read:For example,in order to read the EDID of output port OUT5 to input port 1, we need to press the EDID button(the indicator of EDID lights) firstly, press the button 1 on IN side secondly, then press UP or DOWN button to select OUT5, at the same time button 5 on...
OUTPUT: 4 female HDMI output ports RS232 IN: Female RS232 port for the R232 control LAN: for the IP/TCP control, the default IP address is 192.168.1.80 DC12V: power supply port ON/OFF: power off/on switch 7. Matrix Switcher control This Matrix switcher can support IR remote, APP, RS232/TCP/IP software, WEB GUI browser or the front push-buttons control.
Page 10
Click Enter and login with the user name and password, the default User name is admin, password is admin. Click Submit to login after typing the correct user name and password, and it will turn to the home interface for the sources Switch, Scene Recall/Save: Users also can do the settings for the “Setup”...
Page 11
Users can change the default user name and password from the “Account” Tap: PC software control Step 1: Connect PC and Matrix by RS232 or the LAN cable(TCP/IP) Step 2: Make sure which above methods to use for the controlling. RS232: the default baud rate is 9600.
Page 12
* If use the COM connection, please select the correct COM port from the control PC device management. * If use the TCP/IP control, please make sure the IP address is at the same network segment, the default IP address of this matrix switch is 192.168.0.80, the IP address of the control PC should be 192.168.1.xxx(xxx stands for the digital number).
Page 13
Users can Save the scenes from “SAVE/VIEW”tap: “ SWITCH ” tap is for the sources switching: Select the input source, client the outputs, then click “OK” button to confirm switching:...
Page 14
Users can double click on the Input and Output numbers to rename them: Users can right click on any of the Input numbers to set up the EDID:...
Page 15
EDID description EDID description OUT1(OUTPUT PORT 1) 1080p, Dolby. DTS 5.1 OUT2(OUTPUT PORT 2) 1080p, HD Audio 7.1 OUT3(OUTPUT PORT 3) 3D,Stereo Audio 2.0 OUT4(OUTPUT PORT 4) 3D, Dolby. DTS 5.1 OUT5(OUTPUT PORT 5) 3D, HD Audio 7.1 OUT6(OUTPUT PORT 6) 4k*2k, Stereo Audio 2.0 OUT7(OUTPUT PORT 7) 4k*2k, Dolby.
WEB GUI browser Control Users also can use the WEB browser to control the matrix switcher, users can have the matrix switcher connected with the PC with the LAN cable directly or have the matrix switcher connected the same network switch. The default IP address of the matrix switcher is 192.168.1.80.
Setup interface for users to do the IP address, COM baud rate and buzzer settings: Account interface for users to change the login user name and password: The 3 Party Control command IP address: 192.168.1.80 (default IP) Protocol: UDP Port: 4000 Command: send as hex Control instruction Functional description...
00 00 EB 90 0C 00 00 80 09 02 (0X) 00 00 Save current scene to [X], [X] means number keys from 1 to 9 EB 90 0C 00 00 80 08 02 00 (0Y) 00 Load the input/output switching saved in [Y], [Y] means number keys from 1 to 9 For example, input 1 Switch output 6, send: EB 90 0C 00 00 80 0B 02 00 0D 00 00 (1-1)=0, Hex is 00, (6+7) =13, Hex is 0D.
Page 19
The Company warrants that the process and materials of the product are not defective under normal use and service for 2 (2) years following the date of purchase from the Company or its authorized distributors. If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the payment which users have made.
