WolfPack HDTV-401MS User Manual

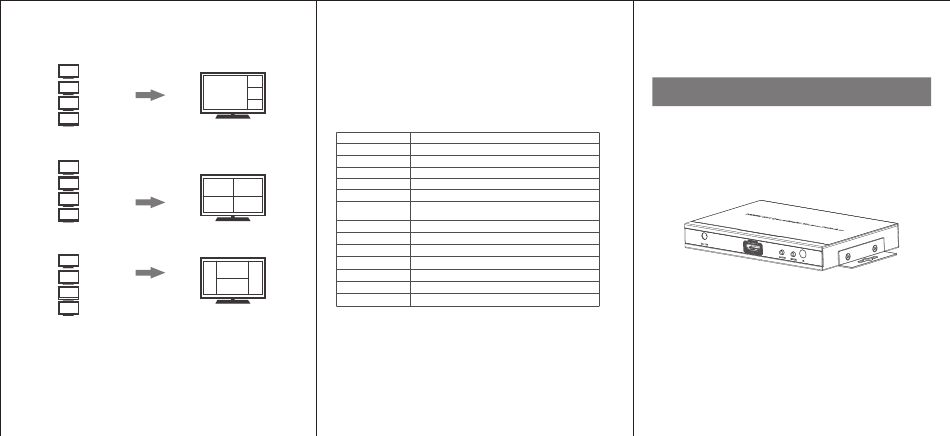

Quad mode：
mode(1) ：
A
INPUT 1
B
INPUT 2
C
INPUT 3
D
INPUT 4
mode(2)：
A
INPUT 1
B
INPUT 2
C
INPUT 3
D
INPUT 4
mode(3)：
A
INPUT 1
B
INPUT 2
C
INPUT 3
D
INPUT 4
· FAQ
Q: Black screen or there is no any signal on HDMI displays?
A: 1) Please make sure the HDMI input source resolutions are supported
by this HDMI multiviewer and the HDMI display devices;
2) Please check and make sure the connections are connected well.
Q: Display not fluent or stable?
A: 1) Please check whether the image of the signal source itself is unstable.
2) Try to change cables, check and make sure the wire length is within
the required range(HDMI cable: 1 to 5 meters ).
3) Please check whether the power adapter is standard or qualified
B
A
with the same type of required.
C
D
· Specification
HDMI Display
Item
Input port
Output port
HDMI Signal
A B Audio support
Support mode
C D
Support
Resolution
Storage Temperature
HDMI Display
Working Temperature 0℃～40℃
Power Supply
Power Consumption
B
Size
A D
C
Weight
Color
HDMI Display

Disclaimer

The product name and brand name may be registered trademark of
related manufacturers. TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may be
some slight difference with the real products.
We reser ve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.

Specification

4x HDMI
1x HDMI
HDMI1.3，HDCP1.2
PCM
Support quad mode, full screen mode and dual mode
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
-20-60℃
DC12V/2A
<10W
178.50×104.74×21.20mm
340g
Black

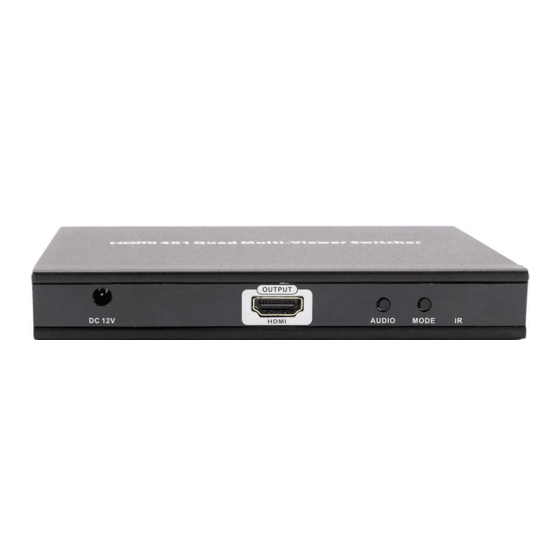

HDMI Quad Multiviewer Switch
4x1 er
User Manual
