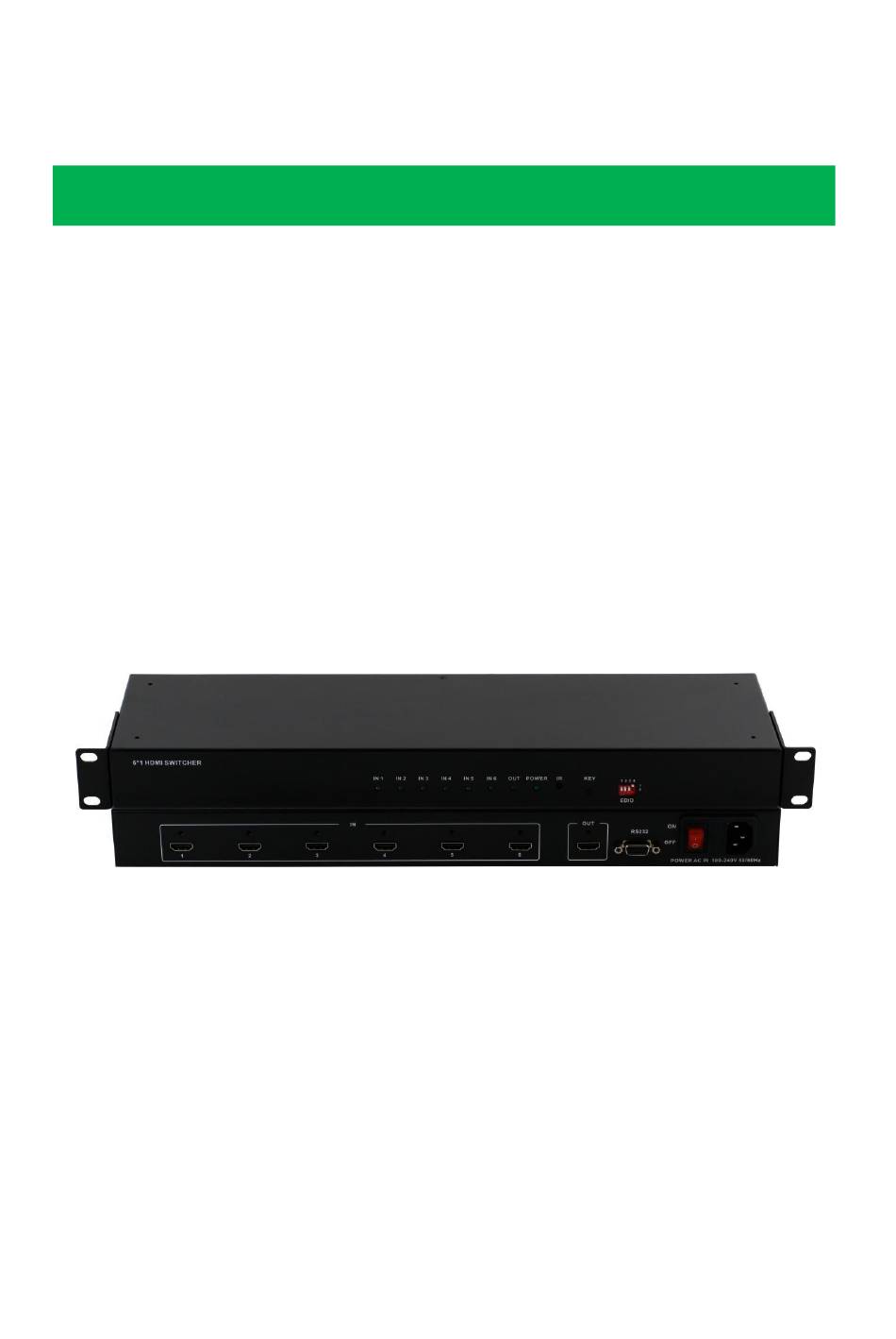

- Page 1 User Manual WolfPack 6 to 1 HDMI switcher with EDID manage ment, RS232...
- Page 2 Version: V2017.001...
-
Page 3: Table Of Contents
Contents 1. Production ......................3 2. Features ......................... 3 3. Specification ....................... 3 4. Packing ........................3 5. Panels ........................3 5.1 Front Panel ........................4 5.2 Back Panel ........................4 6. Operation ......................4 6.1 Connection Diagram ....................5 6.2 EDID Management ....................5 6.3 Control ways .......................5 7. -
Page 4: Features
1. Introduction This WolfPack 6-1 HDMI Switch is a high-performance switcher as it provides users 6 HDMI inputs and 1 output, with a “Key” button on the front panel. Users only need a simply press and the input sources can be switched. It also comes with a remote control. -
Page 5: Specification
3. Specification Type HDTVSWIHDMI0601E Input 6×HDMI Output 1×HDMI Protocol Supports HDMI1.4a, HDCP and EDID management Standard Resolution Support 4K2K Bandwidth 6.75 Mpbs HDMI Distance 15 m Dimension 442*120*45mm Weight 1kg (No packing) Power Supply AC 110V-240V 50/60Hz Consumption 2.5W Working... -
Page 6: Back Panel
1: LED Indicators 2: IR receiver 3: Key button to switch the input sources 4: EDID management 5.2 Back Panel 5: 6 HDMI inputs port 6: HDMI output 7: RS232 port 8: Power OFF/ON switch 9: 100V-240V 50/60Hz Power supply 6. -
Page 7: Edid Management
6.2 EDID Management DIP Dial to the number side as “0”, dial to the up side as “1” The EDID map is on the bottom side of the equipment, showing as the left picture. Example: If users need 1920× 1200/DVI, then users only need to 6.3 Control instruction Way 1: KEY button There is one small “KEY”... -
Page 8: After Sales
package, it looks like below: Users only need to press the button from 1 to 6 on the remote control panel to the IR receiver on the switcher. Example: switch input 1 to the output, users only need to press number 1 on the remote control Way 3: RS232 First, users need to get the switcher well connected with the control PC via a... -
Page 9: Version Information
Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage 8. Version Information Description of version（Document number：HDTVSWIHDMI0601E） Date Version Description number Jan 2017 V1.01.01...
