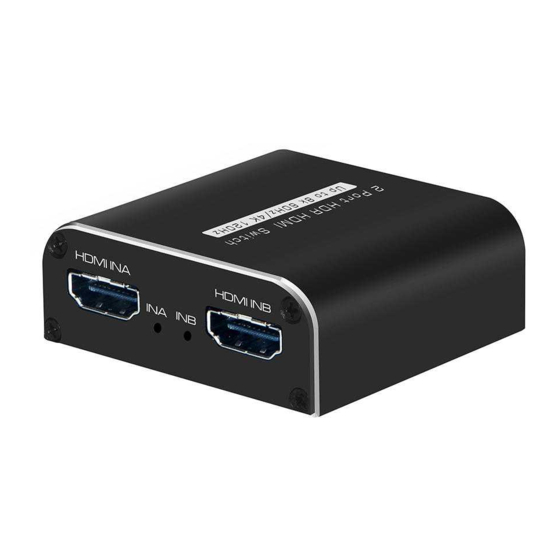

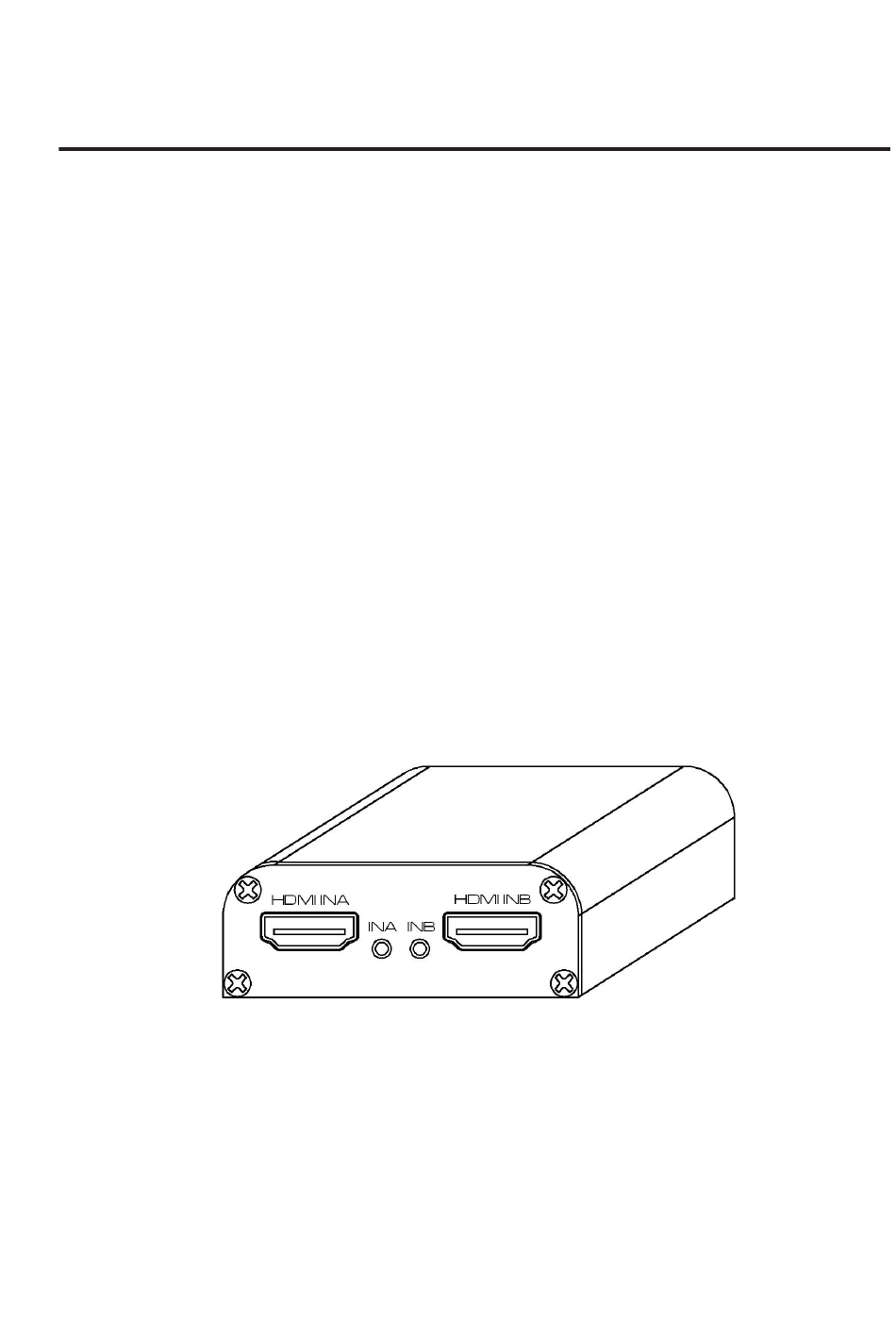

User Manual 2 Port 8K HDR HDMI Switch Model No. HDTVHDSP0022M1 FEATURES OF THE INTERFACE: Picture 1.0 Input panel view...
Page 2
HDMI input port B HDMI Input B indicator, lighting when selected HDMI Input A indicator, lighting when selected HDMI input port A Picture 1.1 Output panel view HDMI input port switch button HDMI output port Micro USB (DC 5V input) Connection and operation: 1.
Page 3
HDMI cable USB Type A-Micro USB cable USB 5V HDSW0034M1 HDMI cable HDMI cable Source(PC/PS5/XBOX/BD) 2. Installation 2.1 Connect HDMI OUT port of switch to HDMI input port of TV/Monitor by HDMI cable. 2.2 Connect HDMI output port of video source (BD player, PC...) to HDMI INA/B port of switch by HDMI cable.
Page 4
connected and feeding power to the unit at the same time. If only one source device is connected or HDMI source could not provide sufficient power, you will need to connect the supplied USB Type A-Micro USB cable to feed additional power for the switch to work. 3.2 If the signal resolution is 8K@60 or 4K@120, please use HDMI2.1 standard cables, and the cable should be as short as possible.
