Valcom V-2271 Manual

Sound360 Self Amplified Flat Panel Speaker
INTRODUCTION

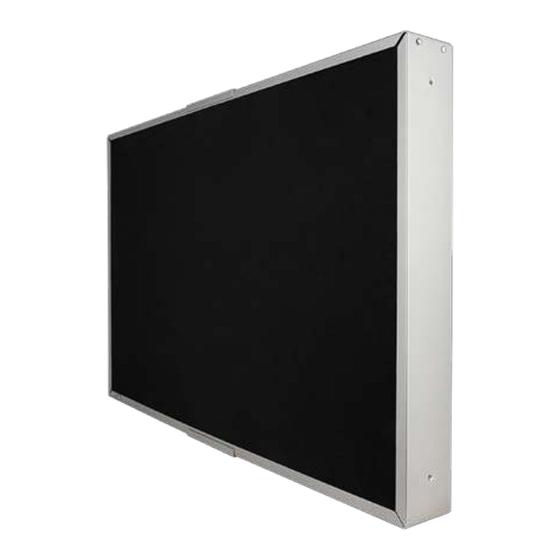

The V-2271 Sound360 Self Amplified Flat Panel
Speaker is suitable for large and/or noisy areas
such as warehouses and manufacturing
facilities. The innovative flat panel design
provides 360-degree coverage in open spaces
and produces less reverberation than cone-type
speakers. Volume can be selected on the
amplifier of the speaker. The lightweight
aluminum frame construction eases installation
effort.
SPECIFICATIONS
FEATURES
• Selectable Volume
• Removable input wiring connector
• 360° audio output
Nominal Specifications
• Frequency Response: 200Hz - 8kHz
• Dispersion: 360°
• SPL @ 1W, 1 Meter: 90 dB
• Sensitivity: switch-selectable +4 or -10 dB
Power Requirements
• Voltage:
24 to 48 VDC
• Current:
180mA @ 48 VDC, 4W Output (typical)
500mA @ 48 VDC, 16W Output (max)
Dimensions / Weight
• 29.25" W x 19.25" H x 3.0" D (4.5" D w/Wall
Bracket)
(74.3 cm x 48.9 cm x 7.6 cm (11.4 cm w/Wall
Bracket)
• 6.75 lb. (3.1 kg)
Environment
• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 0 to 85%, non-precipitating
• Indoor use only
V-2271
Precautionary Designations
•
WARNING-To Reduce The Risk Of Fire Or Electric
Shock. Do Not Expose This Apparatus To Rain Or
Moisture.
• AVERTISSEMENT - Afin de réduire les risques
d'incendie ou de décharge électrique, évitez
d'exposer le système à la pluie ou à l'humidité.
•
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
• L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun Objet
Rempli de liquide, comme vase, ne doit être placé
sur l'appareil.
FCC Information
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
1
Issue 1
947132
