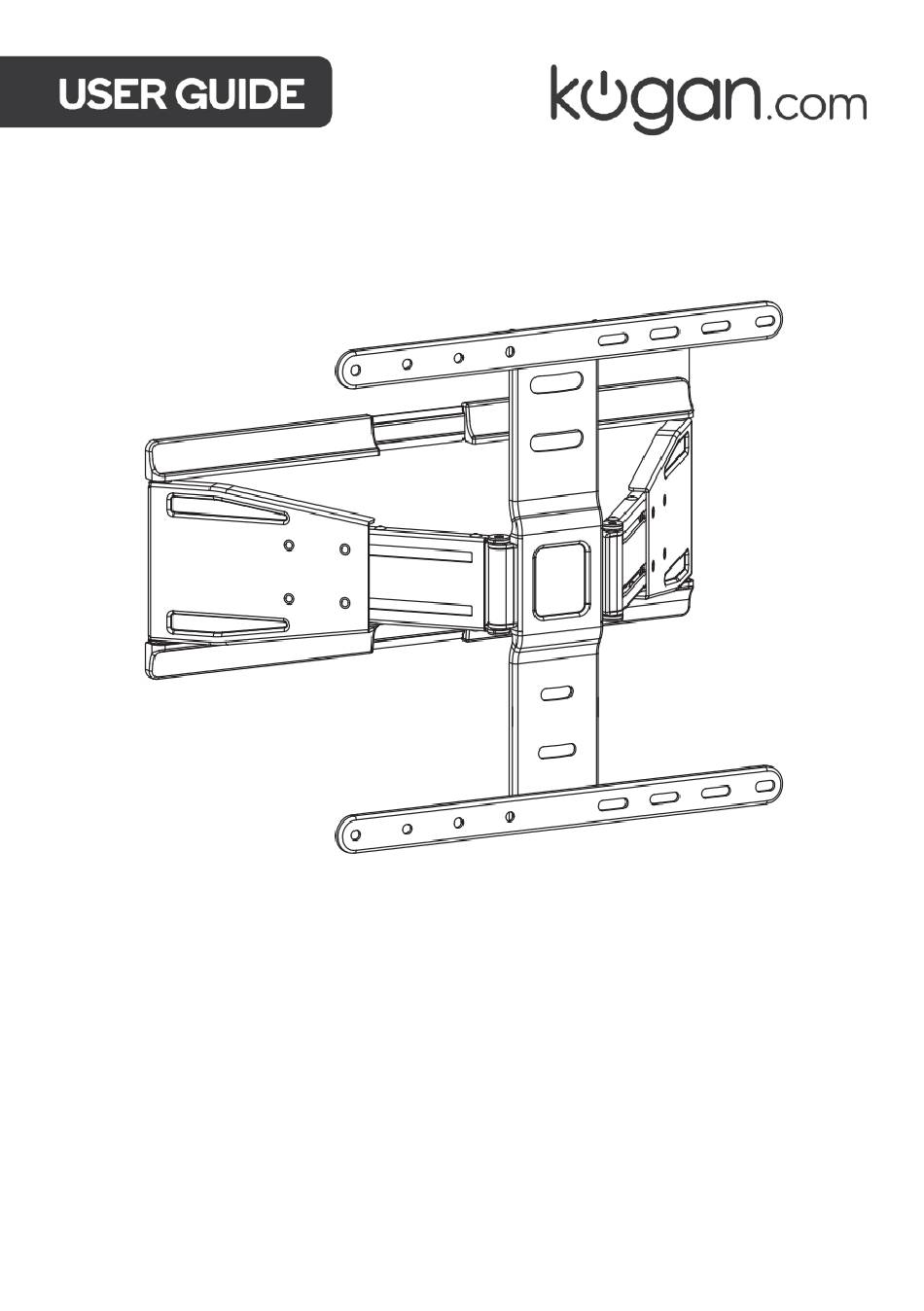

- Page 1 ULTRA-SLIM FULL- MOTION TV WALL MOUNT (SUITABLE FOR 37-75" TVS) KATVULS75LA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Read the entire user guide before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact your local distributor for assistance. Use with products heavier than the rated weights indicated may result in instability causing possible injury. - Page 4 COMPONENTS A Wall Mount (x1) B Upper TV Bracket (x1) C Lower TV Bracket (x1) D Spirit Level (x1) E Cable Holder Clips (x2) F M8 Flanged Nut (x1) G Allen Key (2.5mm) (x1) H Open Spanner (13mm) M6x14 (x1) Screw (x4) M8x16 M6x30...
- Page 5 ASSEMBLY Tools Required Stud Finder Pen/Pencil Drill & Drill Bit Ratchet & Phillips Head Sockets Screwdriver Step 1: Remove the 4 covers from the wall mount (A).
- Page 6 Step 2: Drywall / plaster: Use a Ø 4 holes Masonry / concrete: Use a Ø drilling 60mm deep 6 holes Ø10mm Ø4.5mm (2.4 (Ø3/8 (Ø...
- Page 8 Step 4: Replace the 4 covers onto the wall mount (A).
- Page 9 Step 5: Too long Too short...
- Page 10 Step 6: • Carefully hook the TV with brackets onto the wall mount. 2 people should carry the TV to prevent damage. • Secure the TV to the wall mount using the flanged nut (F) and tighten using the open spanner (H).
- Page 11 Step 7: Loosen the fasteners shown below to adjust the tilt and angle of the TV. Notes: If the display does not stop at your desired position, tighten the screws as shown.
