Kogan KATVPLB90LA User Manual

Kogan KATVPLB90LA User Manual

Fixed curved & flat panel tv wall mount for 37''-90'' tvs
Hide thumbs

Advertisement

Quick Links

Download this manual
FIXED CURVED & FLAT
PANEL TV WALL MOUNT
FOR 37''-90'' TVS
KATVPLB90LA

Advertisement

loading
Need help?

Need help?

Do you have a question about the KATVPLB90LA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KATVPLB90LA

Summary of Contents for Kogan KATVPLB90LA

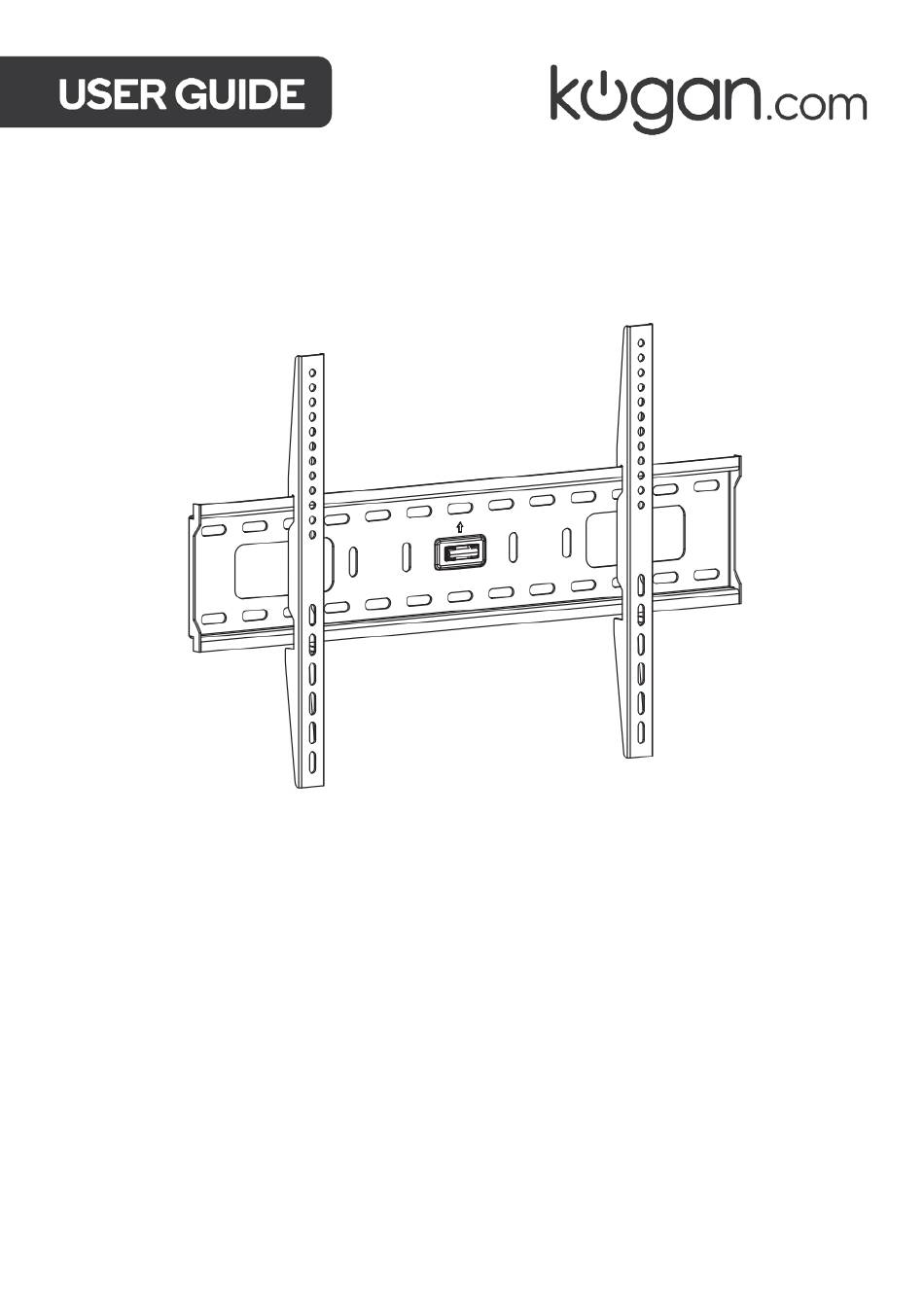

  • Page 1 FIXED CURVED & FLAT PANEL TV WALL MOUNT FOR 37''-90'' TVS KATVPLB90LA...

  • Page 3: Safety And Warnings

    • Important: Ensure that you have received all parts according to the components list prior to installation. If any parts are missing or faulty, contact Kogan.com. • Maintenance: Check that the bracket is secure and safe to use at regular intervals (at...
  • Page 4 COMPONENTS M-A M6x14 Screw A Wall Mount (x1) B TV Bracket (x2) (x4) M-D M8x45 Screw M-B M8x16 Screw (x4) M-C M6x30 Screw (x4) (x4) M-G Ø15xØ8x15 M-E D8 Washer (x4) M-F Ø15xØ8x5 Spacer (x4) Spacer (x4) W-A ST8x90 Screw (x6) W-B Wall Anchor (x6) W-C D8 Washer (x6) Tools Required for Installation (not supplied)
  • Page 5 ASSEMBLY Step 1A: Dry Wall or Plasterboard Using a pencil and spirit level, mark the desired position for the mount on your wall, using the wall mount (A) for the hole positions. Use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring.
  • Page 6 Step 1B: Masonry or Concrete Using a pencil and spirit level, mark the desired position for the mount on your wall, using the wall mount (A) for the hole positions. Using a drill, create the pilot holes. Insert the x6 wall anchors (W-B) into the 6 drilled holes. Attach the wall mount (A) to the wall using the x6 ST8x90 screws (W-A) and D8 washers (W-C).
  • Page 7 Step 2: Align the brackets with your TV’s VESA holes and secure using the supplied screws (“M-” set), Washer (M-E) and spacers (M-F, M-G) depending on the required length.
  • Page 8 Step 3: Hook the TV with brackets installed onto the wall mount. Two people should carry the TV to prevent damage.
  • Page 9 NOTES...
  • Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
