HOMCOM 820-048 Assembly & Instruction Manual page 4

Tip-over switch
lt has a tip-over switch, which will switch off the power supply when the heater tip over
accidentally.
Safety Cut-Off
● This appliance is fitted with a safety cut-off which will operate if the fire overheats (e.g. Due to
blocked air vents).For safety reasons, the fire will NOT automatically reset.
● To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes.
Reconnect the supply to the mains and switch on the appliance.
● Warning-Always disconnect from the power supply before replacing lamp.
● Warning-The lamp reaches high temperatures during operation. Allow the lamp to cool down
after switching off the appliance before replacing lamp.
● Lay on its back firstly.

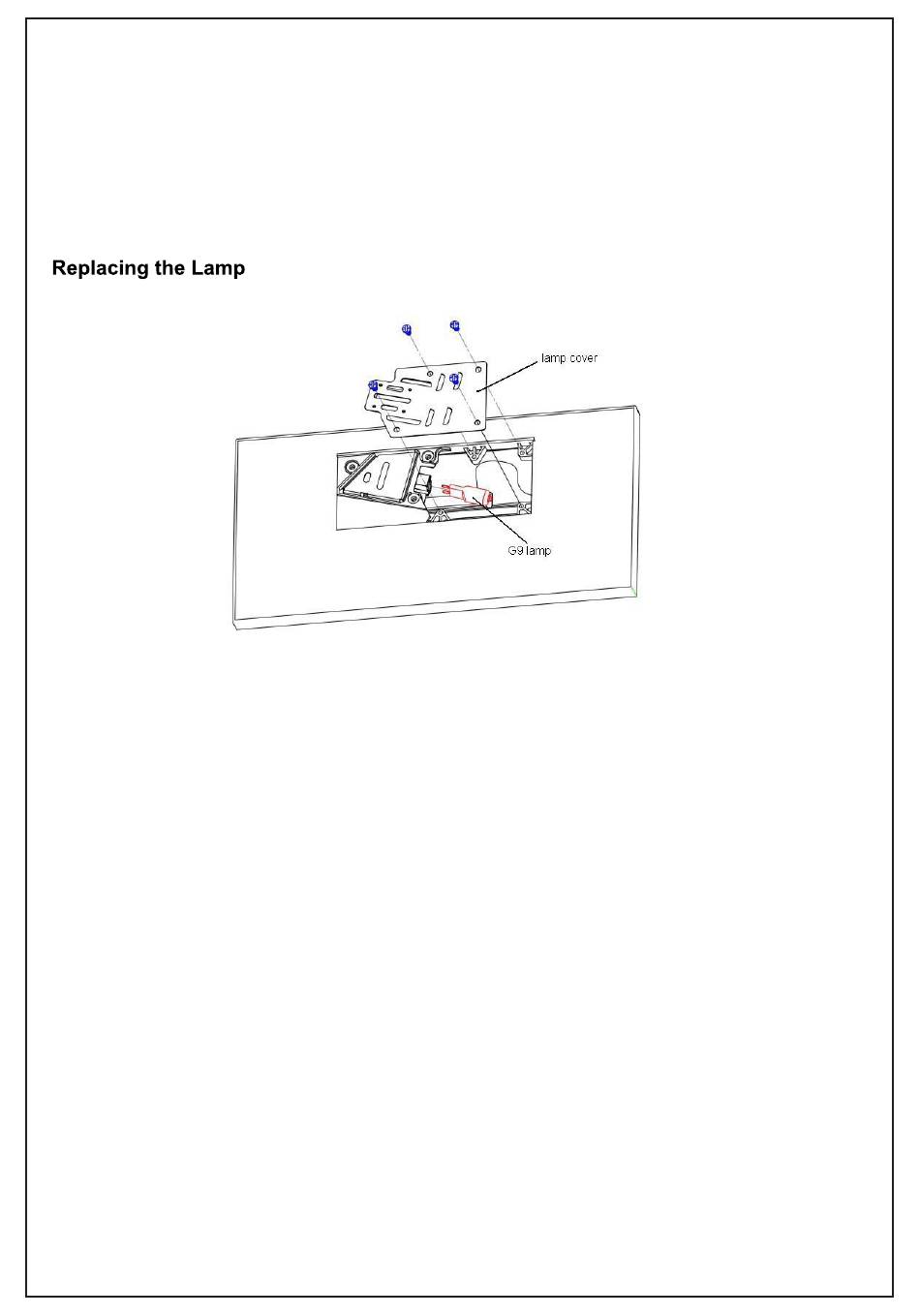

● A 25w G9 halogen lamp are located inside a lamp cover.
● To gain access to the lamp
● Remove the defective lamp by pulling it out of the holder.
● Replace with a 25w G9 halogen lamp. Take care not to touch the lamp with bare hands and
ensure that the lamp is pushed home.
● Refit the lamp cover and secure with the four screws.
Cleaning
● Warning-Always disconnect from the power supply before cleaning heater.
● For general cleaning use a soft clean duster-never use abrasive cleaners. The glass viewing
screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.
Technical Specification
Voltage:120V~ 60Hz
Rated power: 1000W
Lighting: 25W bulb x 1
the four screws which secure the lamp cover, must be removed.
4
