Summary of Contents for OSD Audio NERO HTA4200

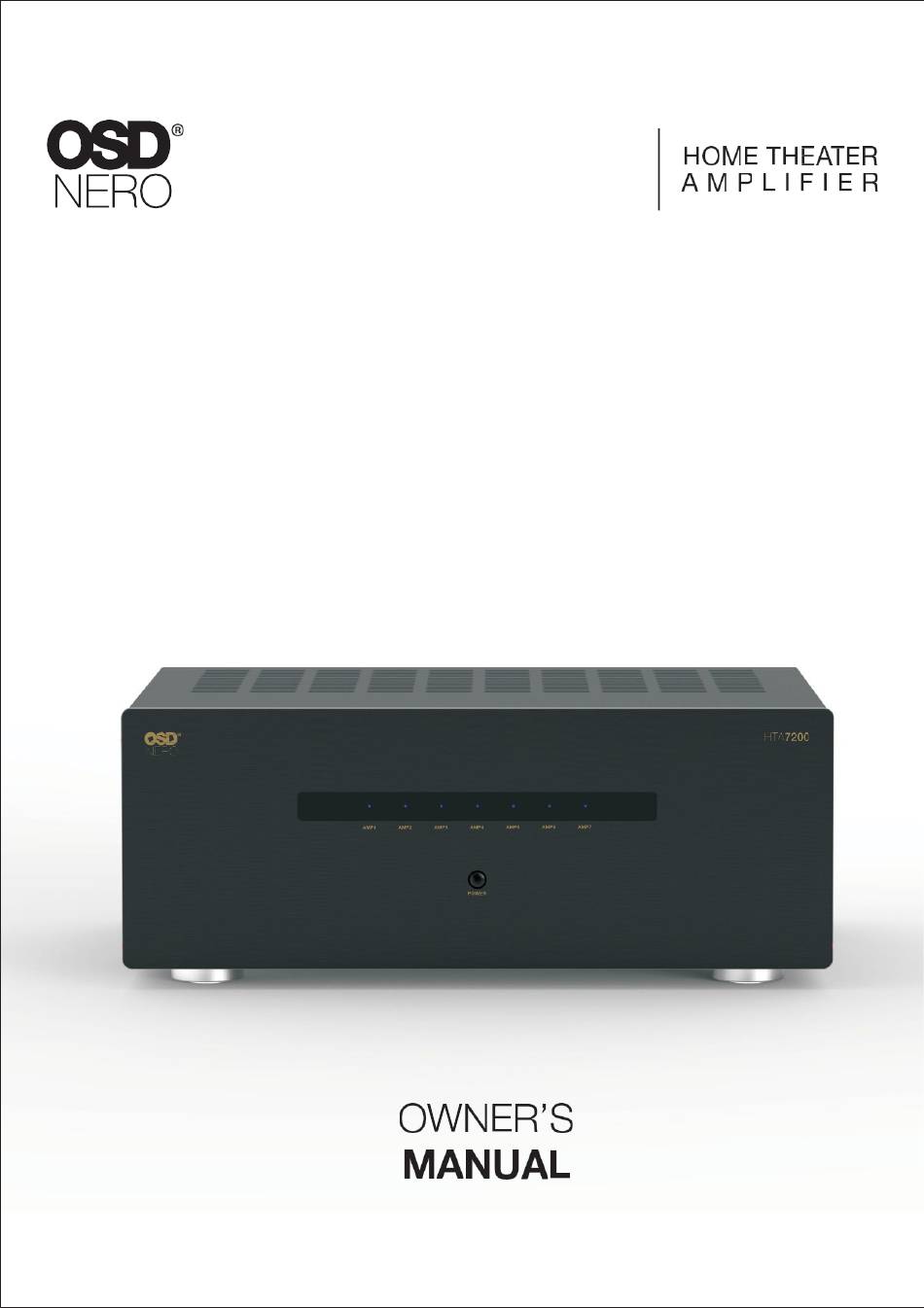

- Page 1 HTA4200 HTA5200 HTA7200...
- Page 4 INTRODUCTION Introduction Thank you for buying this product and becoming part of the OSD family. The HTA amplifiers are the latest range of Home Theater Amps from OSD and include some significant improvements over our previous XA amplifiers. The key areas we worked on were Power output levels (Watts), Distortion (THD) figures, and Signal to Noise Ratio (SNR).
- Page 5 REAR PANEL: HTA4200/HTA5200/HTA7200 (Shown on HTA7200) ~120V ~240V Inputs for connecting the HTA the HTA Amp to your B. Remote Trigger Input And Output (see page 5) E. AC Voltage Selector Before connecting , insure that the voltage selector is set for the correct voltage for your region.
- Page 6 HTA4200/HTA5200/HTA7200 (Shown on HTA7200) ~120V ~240V ~120V ~240V The HTA amps can also be powered on automatically by other devices equipped with a 12v trigger output: Select the HTA amp will turn on when a 12v signal is present and go into but don’t connect the HTA amp to another device, the status...
-
Page 7: Stereo/Mono Switches
HTA4200/HTA5200/HTA7200 (Shown on HTA5200) ~120V ~240V Mono/Stereo Switch ~120V ~240V HTA4200 Stereo/Mono Switches The HTA 4200 is the only HTA series AMP with one or two Stereo/Mono Switches. Otherwise, input, outputs, and power switches are identical for all three amps depending on how many individual amps are for each amp. Stereo/Mono;... - Page 8 Please check the voltage selector above the power socket and confirm it is correct for your country’s voltage. Voltage available for end-users to choose from. Added Image of Front Panel LEDs All LEDs Turn Red Press this button again, all LEDs will turn red, and the device will enter standby mode. When the rear panel switch is set to TRIGGER the front panel indicator lights will be Red and the amp will be Press the rear panel switch labeled POWER, all lights will turn off.
- Page 9 Should you encounter any problems with your HTA amplifier please reset the power by switching off and un-plugging HTA 200 Series Specifications Specification for each channel Parameter Measured in HTA4200 HTA5200 HTA7200 OUTPUT POWER(RMS)(UNIT:W)@1% THD (SINGLE CHANNEL) 4 Ohms Watts OUTPUT POWER(RMS)(UNIT:W)@1% THD (SINGLE CHANNEL) 8 Ohms Watts...
- Page 10 For this warranty to apply, the unit must be installed and used according to its written instructions. If neces- sary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission. Accidental damage and shipping damage are not considered...
