NERO MAX-CNTRL man.indd 1
ZONE 1
POWER
NERO-CONTROL12
OWNER'S
MANUAL
MAX/CONTROL
NERO
MULTIROOM PRE-AMP & AMPLIFIERS
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
N E R O －M A X 1 2
MAX8
UL
62368
M U LT I - Z O N E
NERO CONTROL12
C O N TRO LL ER
UL
2022-07-20
62368
NERO-CONTROL12
2022-08-03
2022-07-20
11/14/22 11:37 AM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OSD Audio NERO MAX 12
Summary of Contents for OSD Audio NERO MAX 12
- Page 1 MAX/CONTROL NERO MULTIROOM PRE-AMP & AMPLIFIERS MAX8 62368 M U LT I - Z O N E NERO CONTROL12 C O N TRO LL ER ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 POWER N E R O －M A X 1 2 NERO-CONTROL12 2022-07-20 62368...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS CAUTION This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to You are cautioned that any changes or modifications not expressly approved in this manual could void your authority all those using the device. -
Page 3: Front/Rear Panel

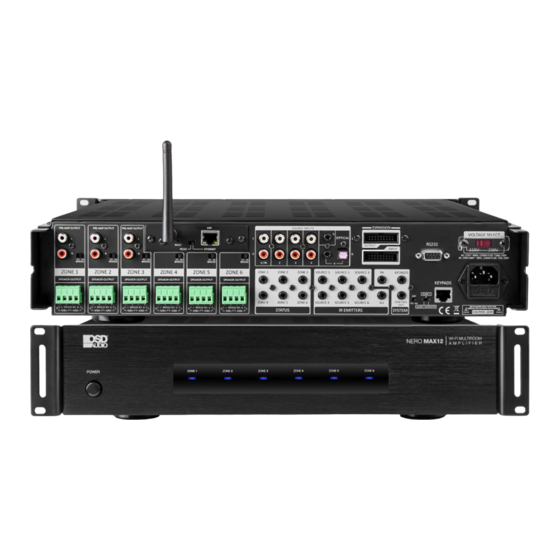

INTRODUCTION FRONT/REAR PANEL MAX12 The NERO MAX12, MAX8 and CONTROL12 are functional, easy to install, highly compatible, expandable, and user- friendly audio distribution systems. They feature 6 Analog Source Inputs, the MAX12 and MAX8 providing up to 80W @4-ohm from a Class D amplifier for 6 or 4 zones - expandable to 18 zones, which can be controlled by the either the OSD Control App (Free App that Duplicates the Keypads), Optional Keypads with IR Remote Control or RS-232. - Page 4 FRONT/REAR PANEL FRONT/REAR PANEL MAX8 CONTROL12 MAX8 M U LT I - Z O N E NERO CONTROL12 C O N T RO LLE R ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 POWER NERO-CONTROL12 1. Power ON/OFF/ STANDBY 2.
-
Page 5: Remote Control
KEYPADS REMOTE CONTROL OPTIONAL KEYPAD (Sold Separately) as NERO-MAX12KEYPAD kit Includes • (6) MAX12 Keypads • (1) MAX12 Keypad Hub • (6) Outer Plates for Decora keypad inserts • IR Remote Control (uses IR sensor in keypads to control amp, codes available from website) •... - Page 6 There are 3 unbalanced, line level Pre-Amp outputs that correspond to the first 3 Outputs. These can be used to connect Up to 6 dedicated sources can be connected to a single NERO MAX 12. Source 1-4 features Right and Left Female an additional amplifier, expand zones, or to connect a powered subwoofer.
- Page 7 CONNECTION CONNECTION Connect the other end of the Cat5e/6 to the lone RJ45 port found on the front side of the Keypad Hub. Note that the Connecting Optional Keypads Cat5e/6 between the unit and the hub should only be between 7-10ft in length. The RJ45 ports on the back of the Keypad Hub are not assigned but the single RJ45 port isolated on the bottom of the hub is reserved for cascading units.
- Page 8 CONNECTION CONNECTION WIRING: 3.5mm Jack IR Emitters When being used with Keypads, the NERO MAX / Control can receive IR signals from each zone, and routed back through the Cat5e/6 and Keypad up to the Amplifier to control the selected source. For example, if Source 2 - DVD is selected in Zone 1, the user will be able to control the DVD player to power the device ON/OFF, change settings etc..
-
Page 9: App Control
APP CONTROL APP CONTROL Once the OSD Control App is open, click the link icon in the lower left corner (image 1) Home Screen, press Auto in center Configuring Wireless Control Via Our App left of (image 2) wait until processing within the app is complete. The IOS or Android App provides wireless control of the audio system from a connected tablet or smartphone. -
Page 10: Warranty
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, 4. Treble Adjust +/- repairs must be performed by OSD Audio . The unit must be returned to OSD Audio at the owner’s expense and 5. Bass Adjust +/- with prior written permission. - Page 11 OSD Audio | Brea, CA. | osdaudio.com NERO MAX-CNTRL man.indd 20 11/14/22 11:38 AM...
