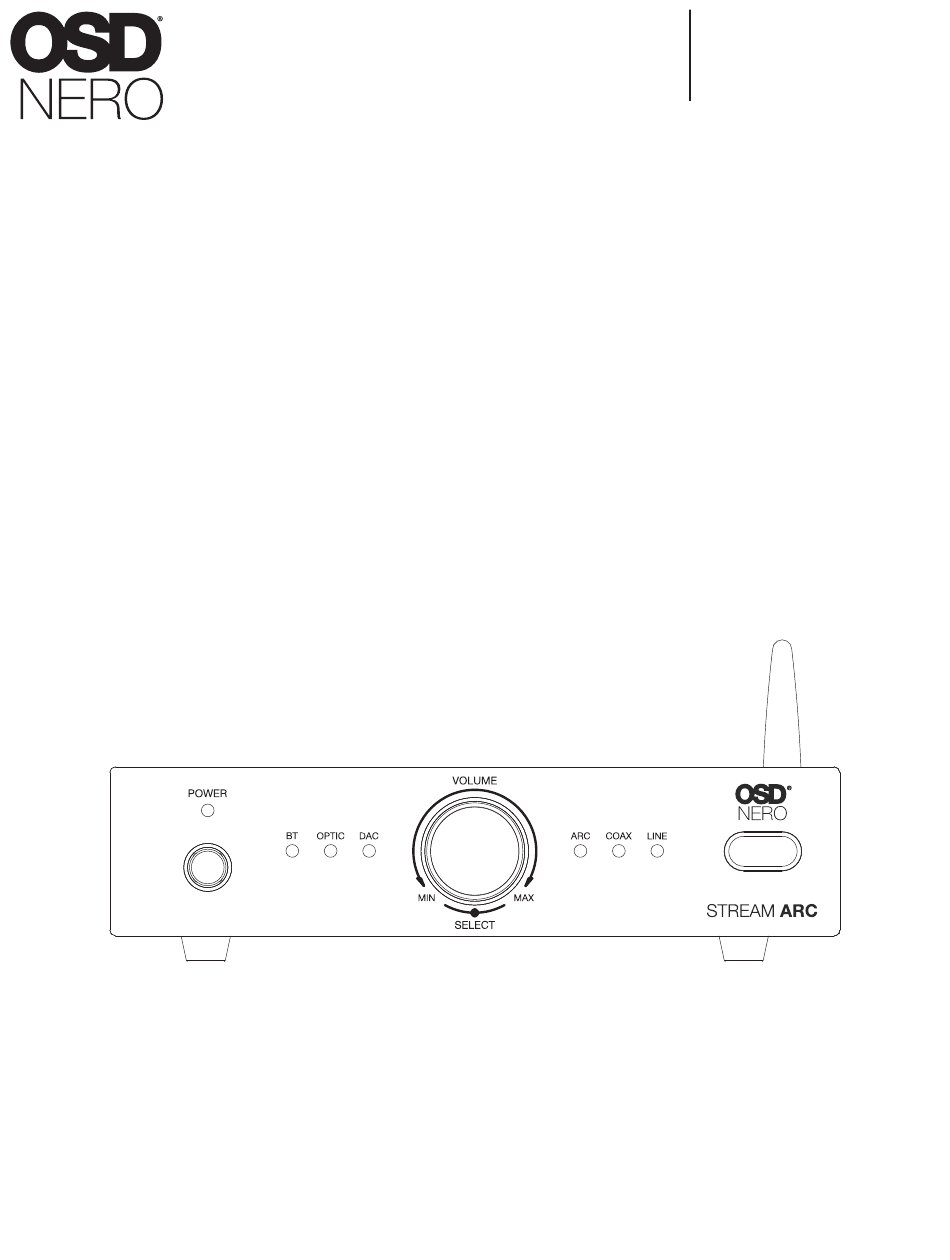

- Page 1 DIGITAL STEREO A M P L I F I E R USER GUIDE...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Important Safety Instructions The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of dangerous voltage inside the product that may constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product. - Page 3 SAFETY INSTRUCTIONS 16. Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) If the power-supply cord or plug is damaged. b) If liquid has been spilled into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions.
-

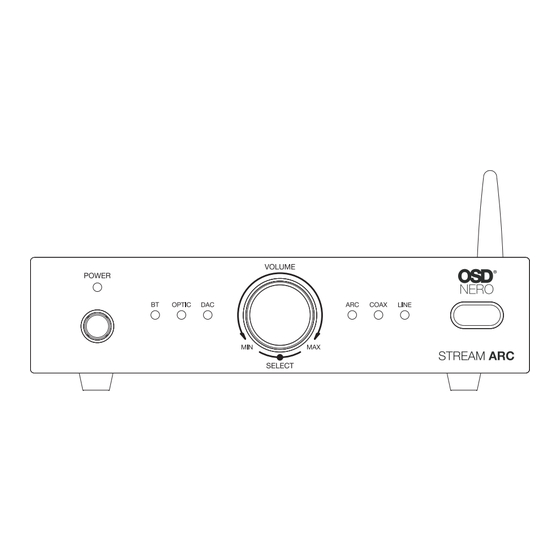

Page 4: Front Panel
FRONT PANEL 1. POWER/STATUS INDICATING LIGHT (counterclockwise) to turn the volume down and turn to the The Green light indicates regular operation, the red light right (clockwise) to increase the volume. Press the Volume/ indicates FAULT, and the orange light indicates waveform trim Select Knob to Cycle through the sources one at a time: Digital Optical, DAC, ARC, Digital Coax, and Line in. -
Page 5: Rear Panel
REAR PANEL FCC ID:2A4UHNEROSTREAMARC 1. External Antenna 6. Digital OPTICAL Input To maintain the stability of signal strength. To achieve sound source playback, you can connect some devices with OPITC output, such as TVs and karaoke 2. Digital DAC Input machines. - Page 6 SETUP Amplifier Standby: The power amplifier has an automatic shutdown function; in the absence of any audio input, it will enter the automatic standby state within 10 minutes; Standby power consumption ≤ 0.5W; you can use the standby button of the remote control or touch the switch through the encoder on the panel to wake up the power amplifier.
-
Page 7: Specifications
SPECIFICATIONS Categories ARC Specs Categories ARC Specs Amplifier type Two Channel L&R Stereo Wireless BT / Optical / DAC / ARC / Coax / Sources/ Inputs LINE IN Design type Digital Class D Channels Output L/R speaker out (mono) / SUB Out Wireless BT version Wireless BT 5.3 (chip:BT8961) Maximum Sample Rate... -
Page 8: Warranty
Any OSD Audio product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will not be honored or serviced under existing OSD Audio warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD Audio shall void the warranty on the applicable product.
