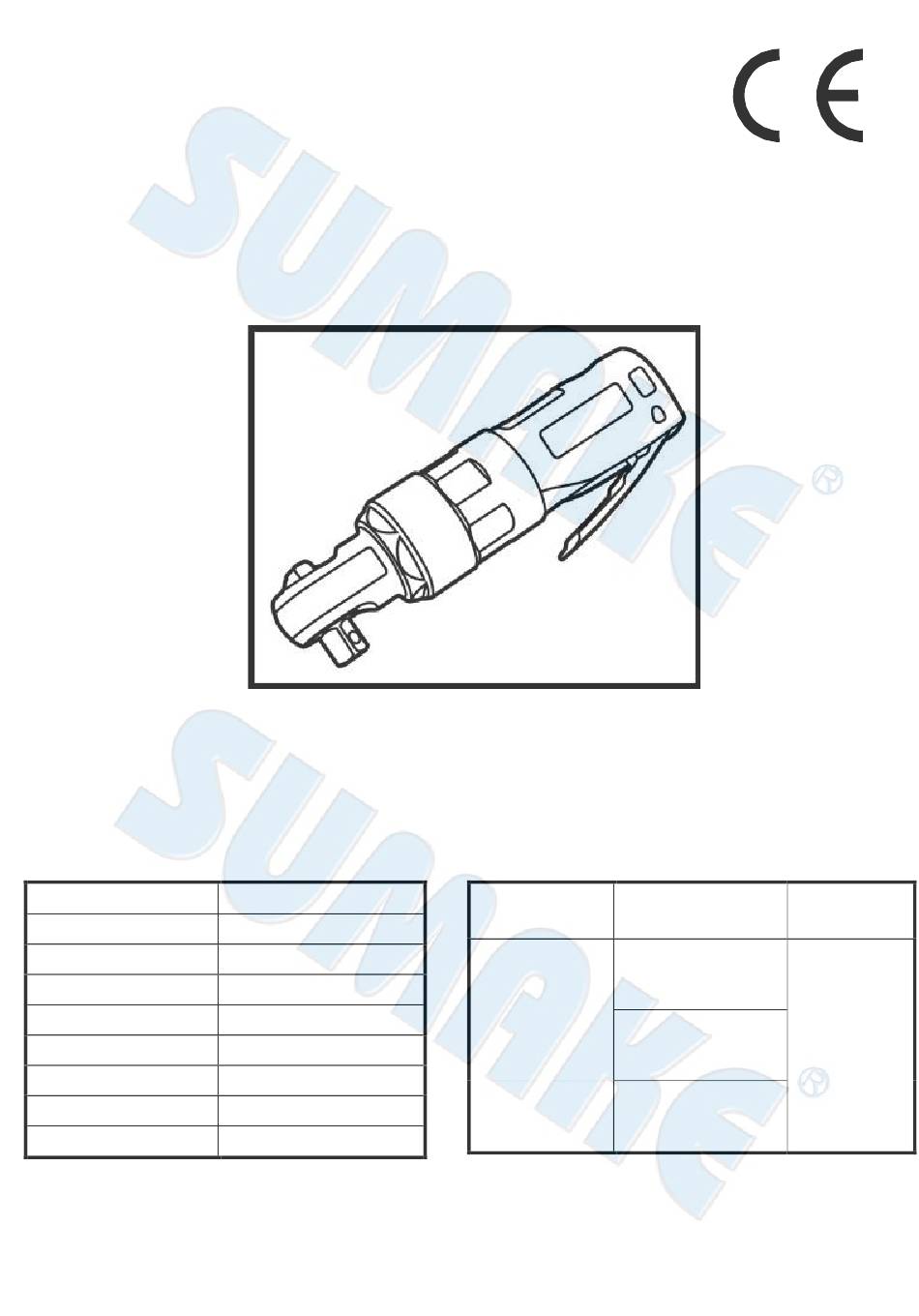

Specification:
Free Speed
Capacity Bolt Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

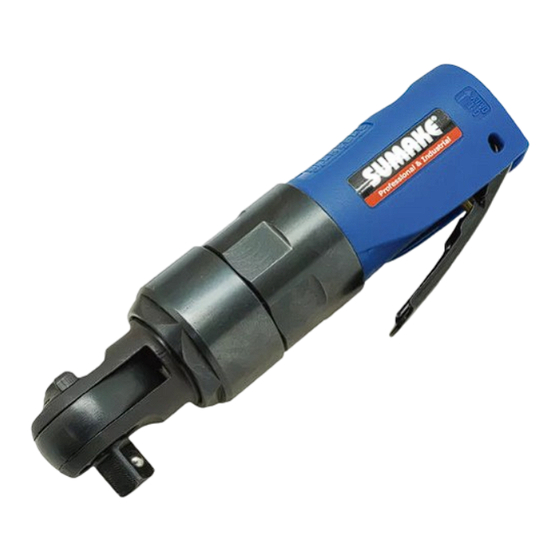

3/8" Impact Ratchet Wrench
(Maurer Clutch)
ST-RW971
700 r/min
3/8" (M10)
40 ft-lb (54 N-m)
14 CFM (400 L/min)
6-2/7" (160mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
1.43 lbs (0.65 kg)
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
No Load:
6.8 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
load: 89 dB(A)
Sound power level
load: 100 dB(A)
Uncertainty
K= 3dB
²
ST-RW970-S-2308A-GDF
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-RW971
Summary of Contents for Sumake ST-RW971
- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 1.43 lbs (0.65 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-RW970-S-2308A-GDF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 3/8" IMPACT RATCHET WRENCH (MAURER CLUTCH) Model/ Serial No.： ST-RW971 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 A portion of the water content, lever. For the sake of safety, place it on a level however, is condensed in the piping, and can enter the tool mechanism, and may cause trouble. So, install an air filter and on oiler between the ST-RW971-I-2308A-GD...
-
Page 4: Parts List
ST-RW970, ST-RW971 1/4"(3/8") IMPACT RATCHET WRENCH (MAURER CLUTCH) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty RW970-01 Housing w/ Bushing RW970-24 Hammer RW970-02 O-Ring RW970-25 Hammer Pin RW970-03 O-Ring RW970-26 Hammer Cage RW970-04 Throttle Pin RW970-27 Anvil RW970-05... - Page 5 RATCHET WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or accessory. Do not touch sockets or accessories during impacting, as this increases the risk of cuts, burns or vibration injuries.
- Page 8 shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet.
