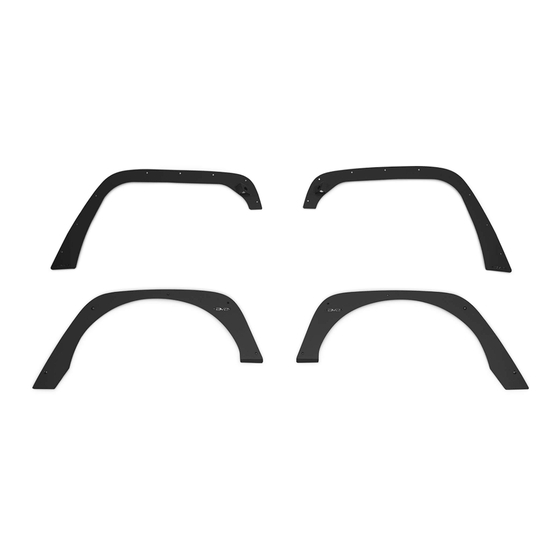

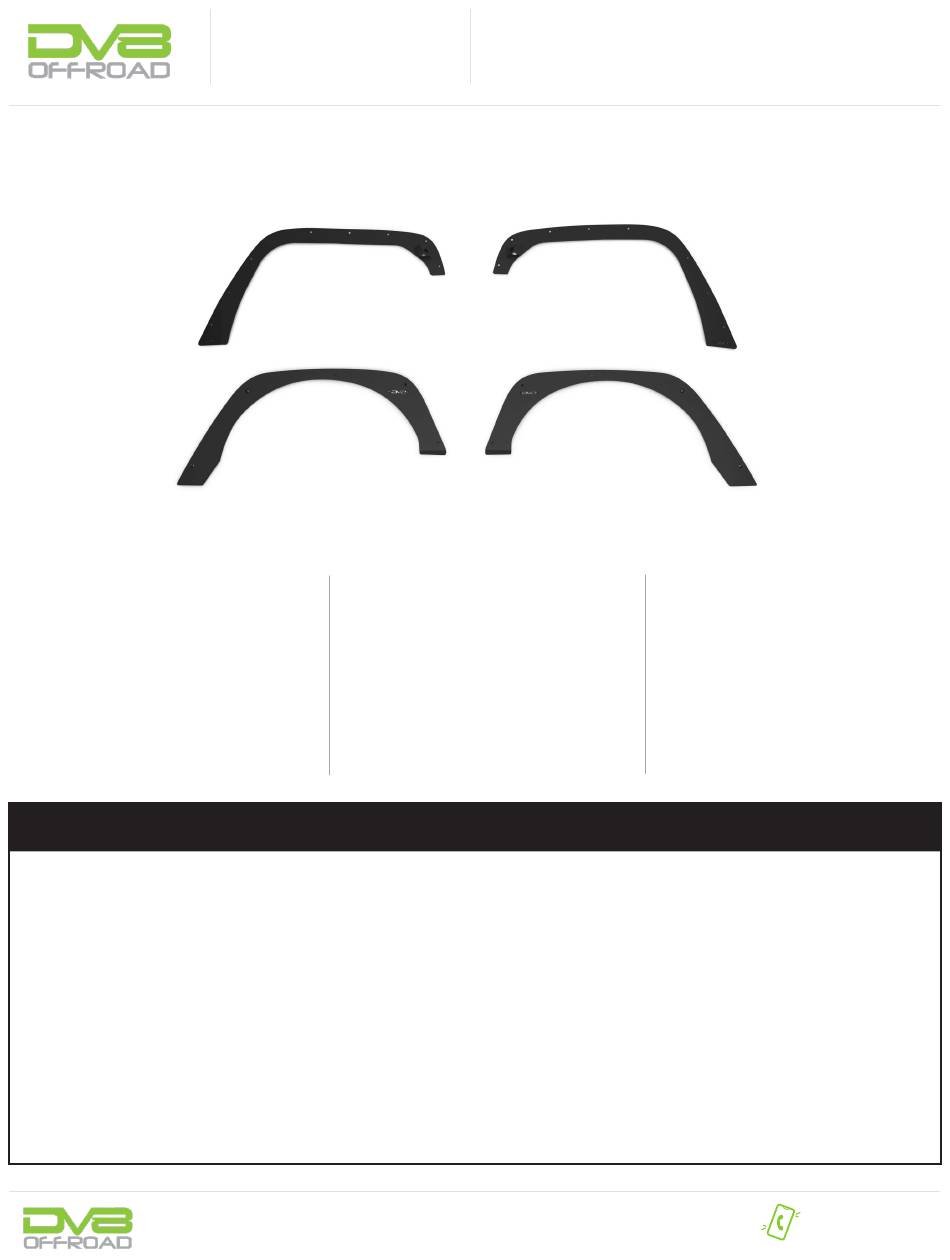

FENDER DELETES
07-18 JEEP WRANGLER JK
FDJK-08
TOOLS
REQUIRED
- Trim Clip Tool
- 10mm Socket/Wrench
- 12mm Wrench
- #4 Allen Bit
- Scissors or Blade
- Metal Cutting Tool, Painters Tape, Color
Matched or Black Paint (Optional)
- Nutsert tool, Power Ratchet, Low Profile
Ball End #4 Allen Key (Optional, Highly
Recommended)
- Zip Ties
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2.5 Hours
Time to install this should only
take about two and a half hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD FDJK-08
Summary of Contents for DV8 OFFROAD FDJK-08
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL FENDER UNINSTALL STEP 1 | If you installing the DV8 JK Front Inner Fenders, retain the factory hardware during uninstall, some if it may be re-used during installation of the inner fenders. It is recommended to install the inner fenders after the outer fenders, so there is easier access route and secure any wiring.
- Page 3 INSTALLATION MANUAL STEP 2 | Use a 10mm socket to remove the hardware securing the fenders to the vehicle. There are five fasteners located along the top of each fender and one more securing the fenders to the support brackets. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 3 | Use a trim clip tool to remove the five trim clips located along the interior of each fender. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 4 | Remove the fender flare by pulling firmly away and up from the tire to remove it from the plastic clips. If you pull away from the body of the vehicle, the plastic clips may break. The clips are pictured at the bottom of the page.
- Page 6 INSTALLATION MANUAL STEP 5 | Use a trim clip tool to remove all the plastic fasteners from the front fender mounts. STEP 6 | Use a trim clip tool to remove the five trim clips located along the interior of each rear inner fender. NEED HELP? 855-680-9595...
- Page 7 INSTALLATION MANUAL STEP 7 | With the trim clips removed, un-install the fender flare by pulling directly away and up from the tire to remove it from the plastic clips. If you pull away from the body of the vehicle, the plastic clips may break. The fasteners follow the curve of the fender similar to the front.
- Page 8 INSTALLATION MANUAL STEP 8 | Remove all remaining plastic fasteners from each rear fender using a trim clip tool. STEP 9 | Cut the front fender mounts off and grind it down so it is flush with the vehicle. Paint is recommended on the bare steel to prevent rust.
- Page 9 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (16) M6x20 Allen Tapered (2) M6x30 Allen Tapered (4) M6 Flat Washers (4) M6x16 Allen Button...
- Page 10 INSTALLATION MANUAL Install the fender flare onto the vehicle using the provided M6x20 hardware with a 4mm allen bit. Note: Assistance is recommended to prevent injury and damage to the product or vehicle. STEP 11 | Route and secure the wiring according to preference and install the new signal into the factory connector.
- Page 11 INSTALLATION MANUAL STEP 13 | Install the provided nutserts using a nutsert tool. Tip: Hold up the fender the vehicle as a guide to determine which holes require a nutsert. STEP 14 | Install the fender flare onto the vehicle using the provided M6 hardware with a 4mm allen bit.
- Page 12 INSTALLATION MANUAL STEP 15 | Install the provided rubber caps on to the rear fender delete by pressing them into place. STEP 16 | Double check fitment and all hardware is secure. Congratulations! You are finished with the install of the DV8 Fender Deletes! NEED HELP? 855-680-9595...
- Page 13 INSTALLATION MANUAL STEP 17 | To use the nutsert tool, slider the M6 washer and spacer onto the provided M6x50 bolt. Then install a nutsert onto the exposed threads by hand. STEP 18 | Slide the nutsert tool with the nutsert into the mounting hole. Ensure the flange of the nutsert is flat against the vehicle prior to tightening.
