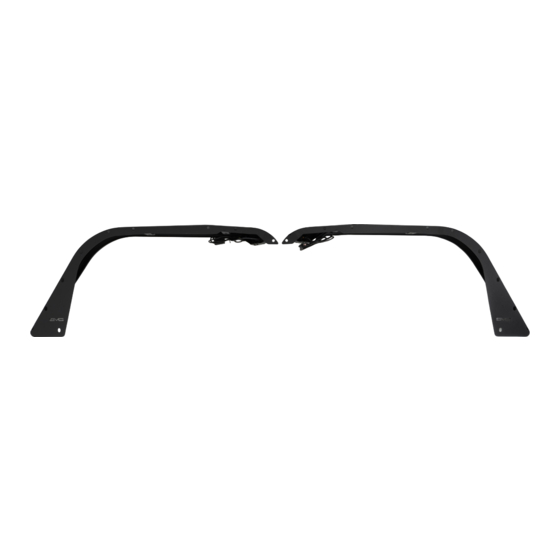

SLIM FENDERS
2020+ JEEP WRANGLER JT
FDGL-07
TOOLS
REQUIRED
- Trim Clip Tool
- 4, 5mm Allen Bit
- 4mm "L" Shaped Allen Tool
- 10, 12, 13mm Wrench
- Angle Grinder or Cutting Tool of Choice
- Spray Paint
- Zip Ties (Optional)
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2.5 Hours
Time to install this should only
take about two and a half hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD FDGL-07
Summary of Contents for DV8 OFFROAD FDGL-07

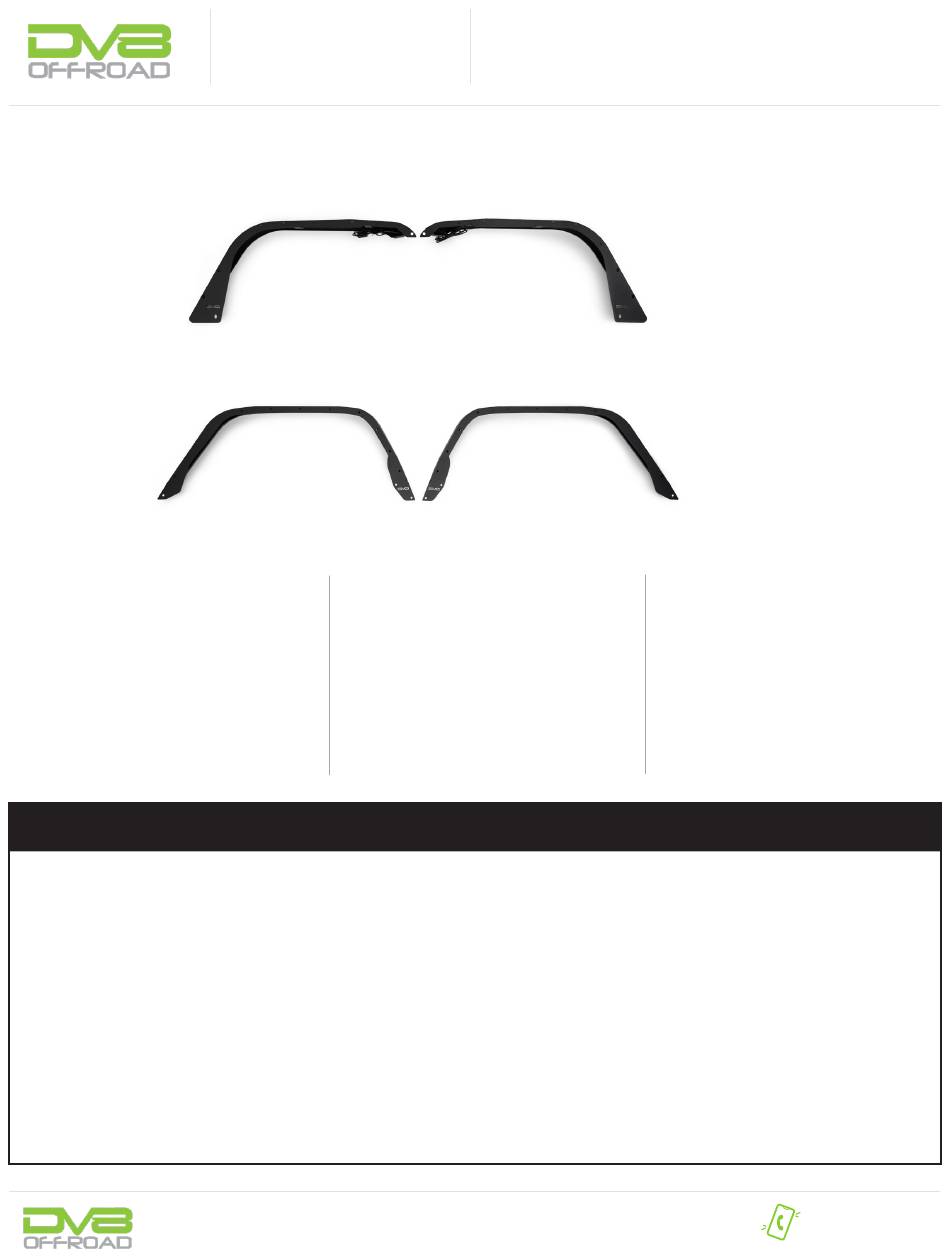

- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL FRONT UNINSTALL STEP 1 | Use a 10mm socket to remove the bolts along the top and at the front of the inner fender. Use a trim clip tool to remove the clips on interior of the inner fender. Use a trim clip tool to remove the clips running along the outside lip, securing the inner fender to the vehicle.
- Page 3 INSTALLATION MANUAL STEP 2 | Unplug the turn signal indicator by pulling the red release tab out and pulling. STEP 3 | Use a 10mm socket to remove the bolt securing the fender to the vehicle. Then, remove the fender by pulling away from the vehicle to release the clips.
- Page 4 INSTALLATION MANUAL REAR UNINSTALL STEP 5 | Use a 8mm socket to remove the bolts located along the interior of the inner fender. Then, use a trim clip tool to remove the clips located in each corner of the fender. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 6 | Remove the fender flare by pulling the front section towards the front of the vehicle, and the rear section towards the rear. Then pull the fender directly “away” from the vehicle, to release the remaining clips. On the JT, you should be able to reach around and squeeze the clips to remove if needed.
- Page 6 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (20) M6x20 Allen (4) M8x15 Allen (26) M6x25 Allen (4) M8 Flat Washers...
- Page 7 INSTALLATION MANUAL STEP 10 | Install the gaskets onto the fenders. The gaskets are notched to line up with the mounting holes on each fender. Install the fender flare onto the vehicle using the provided M6x20 hardware with a 4mm allen bit. Secure the mounting supports using the supplied M6x25 hardware with a 4mm allen bit and 10mm wrench.
- Page 8 INSTALLATION MANUAL REAR INSTALL STEP 12 | For the rears, DV8 provides both nutserts and M8 nuts. Depending on the inner fender used, the kits allows for both options. Tip: Place the fender on the vehicle as a guide to determine which holes are used for mounting STEP 13 | Install the fender flare...
- Page 9 INSTALLATION MANUAL STEP 14 | Check the gasket on both fenders after install and tuck away any extra gasket using a trim clip tool. Double check all hardware is secure and function of lights and turn signals. NOTE: If the Jeep was not equipped with OEM LED lighting, then aftermarket/dealership programming may be necessary to access all LED functions.
- Page 10 INSTALLATION MANUAL STEP 16 | To use the nutsert tool, slider the M6 washer and spacer onto the provided M6x50 bolt. Then install a nutsert onto the exposed threads by hand. STEP 17 | Slide the nutsert tool with the nutsert into the mounting hole. Ensure the flange of the nutsert is flat against the vehicle prior to tightening.
