en Installation instructions

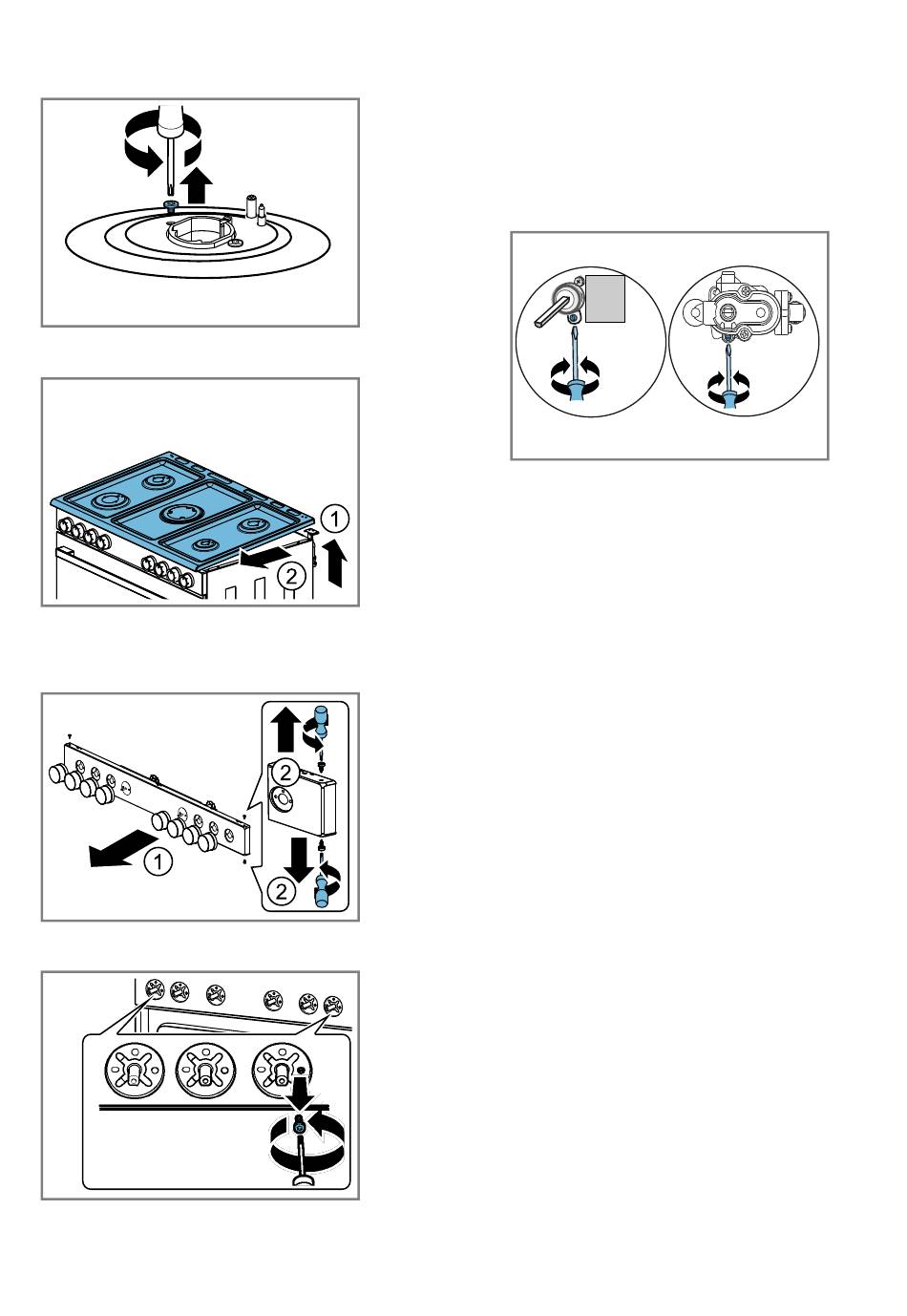

If burner connection screws are present on the hob,
2.
remove all of these.
Undo the hob panel at the burner hub and lift it up.
3.
Pull the hob panel forwards.
‒
Remove the knobs on the front panel by pulling
4.
them towards you.
Remove the screws from the corners of the front
5.
panel.
Remove the screws that become visible after you re-
6.
move the knobs from the front panel.
38
Setting the bypass nozzles
Use a flat-head screwdriver (no. 2) to set the bypass
1.
nozzles in accordance with the gas type that is to
be set. To do this, follow the instructions in the sec-
tion entitled
→ "Converting the appliance from liquid gas to nat-
ural gas", Page 37 or in the section entitled
→ "For ovens – converting the appliance from nat-
ural gas to liquid gas", Page 37.
At this stage, it is important to test for leaks. You
2.
can find additional information about this in the sec-
tion entitled
→ "Leak test and function test", Page 39.
Fitting the control panel
To reassemble, proceed in the reverse order of disas-
sembly.
Take hold of the front panel with both hands and
1.
carefully fit it into place. Ensure that the cables are
not damaged and the connections do not come
loose.
Insert the screws that were removed from the front
2.
panel.
Insert the screws into the corners of the front
‒
panel.
Slide the hob panel backwards and slowly insert it.
3.
Insert the burner connection screws
4.
Install the burner bases in their respective positions
5.
according to their size. Insert the ignition plugs into
the corresponding openings next to the burner
bases. Place the enamelled burner lids onto the
centre of the corresponding burner bases and, in
doing so, note the sizes. Fit the pan support grids
and the pan support racks.
Carefully insert the knobs.
6.
At this stage, it is important to check that the gas
‒
burners are burning correctly. You can find addi-
tional information about this in the section en-
titled
→ "Checking the correct burner behaviour",
Page 39.
a Check whether the appliance is working correctly.
Replacing the oven gas burner
Preparation
¡ Switch off all of the knobs on the control panel.
¡ Close the gas connection shut-off.
¡ Disconnect the appliance from the mains.
Replacing the oven's lower gas burner nozzle
On the rear cover, loosen the plastic screw on the
1.
power cable's mounting part.
