Moisture meter
User manual
Test block
Test medium to check the calibration accuracy for
humimeter measuring devices with conductivity
measuring method
78,0 °F | 6,16 % | 456 kg/m
| -27,3 td | 0,64 aw | 51,9 %r.H. | 14,8 % abs | 100,4 g/m
| 09 m/s | 4,90 Ugl | 1
3
2
Read the user manual before starting any work!
Version 2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Schaller Test block
Summary of Contents for Schaller Test block
- Page 1 Moisture meter User manual Test block Test medium to check the calibration accuracy for humimeter measuring devices with conductivity measuring method 78,0 °F | 6,16 % | 456 kg/m | -27,3 td | 0,64 aw | 51,9 %r.H. | 14,8 % abs | 100,4 g/m...

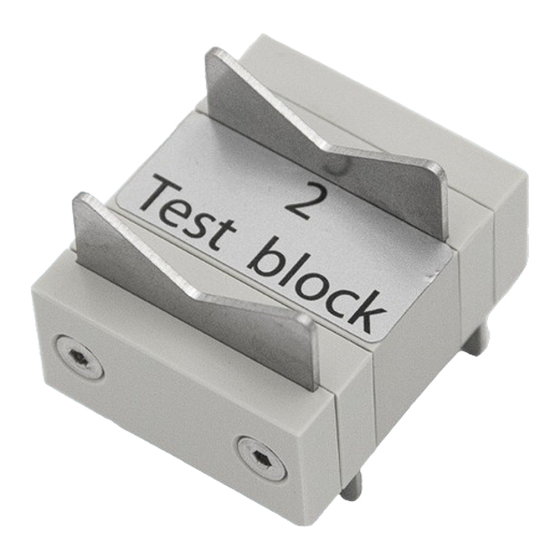

- Page 2 User manual humimeter Test block Overview of your test block Name Label (side 1, side 2) Housing Electrodes side 2 Electrodes side 1 Page 2...
-
Page 3: Checking The Calibration
26,0 °C. Turn on the device and select the "Test block" characteristic curve using the cursor keys. Hold the test block with side 1 on the sensor. The correct positioning is shown in the images under the section: "1.2.1 Positioning the test block"... - Page 4 26,0 °C. Turn on the device and select the "Test block" characteristic curve using the cursor keys Hold the test block with side 1 on the sensor. The correct positioning is shown in the images under the section: "1.2.1 Positioning the test block"...
- Page 5 1.2.2 humimeter FL1 & FL2 » The two electrodes of the test block must lie firmly on the metal parts both befo- re and behind the black plastic insulator. » The sensor tube or the measuring tip must be held in the air during the test.
-
Page 6: Care Instructions
WLW, BLW & SLW » Remove the nails and nuts. » The two electrodes of the test block have to be held in the holes of the grub screws. » The electrodes must be pressed lightly onto the grub screws. - Page 7 Electrodes • If the measuring head is dirty, it can be cleaned with alcohol. Test block • If the test block is dirty, clean it with a moistened cloth. INFORMATION Equipment damage caused by wet cleaning of electronics Water or cleaning fluid getting inside the device can destroy the device.
- Page 8 Schaller Messtechnik develops, produces and sells professional moisture meters and turnkey solutions. Schaller Messtechnik GmbH Max-Schaller-Straße 99, A - 8181 St. Ruprecht an der Raab Tel +43 (0)3178 - 28899 , Fax +43 (0)3178 - 28899 - 901 info@humimeter.com, www.humimeter.com...
