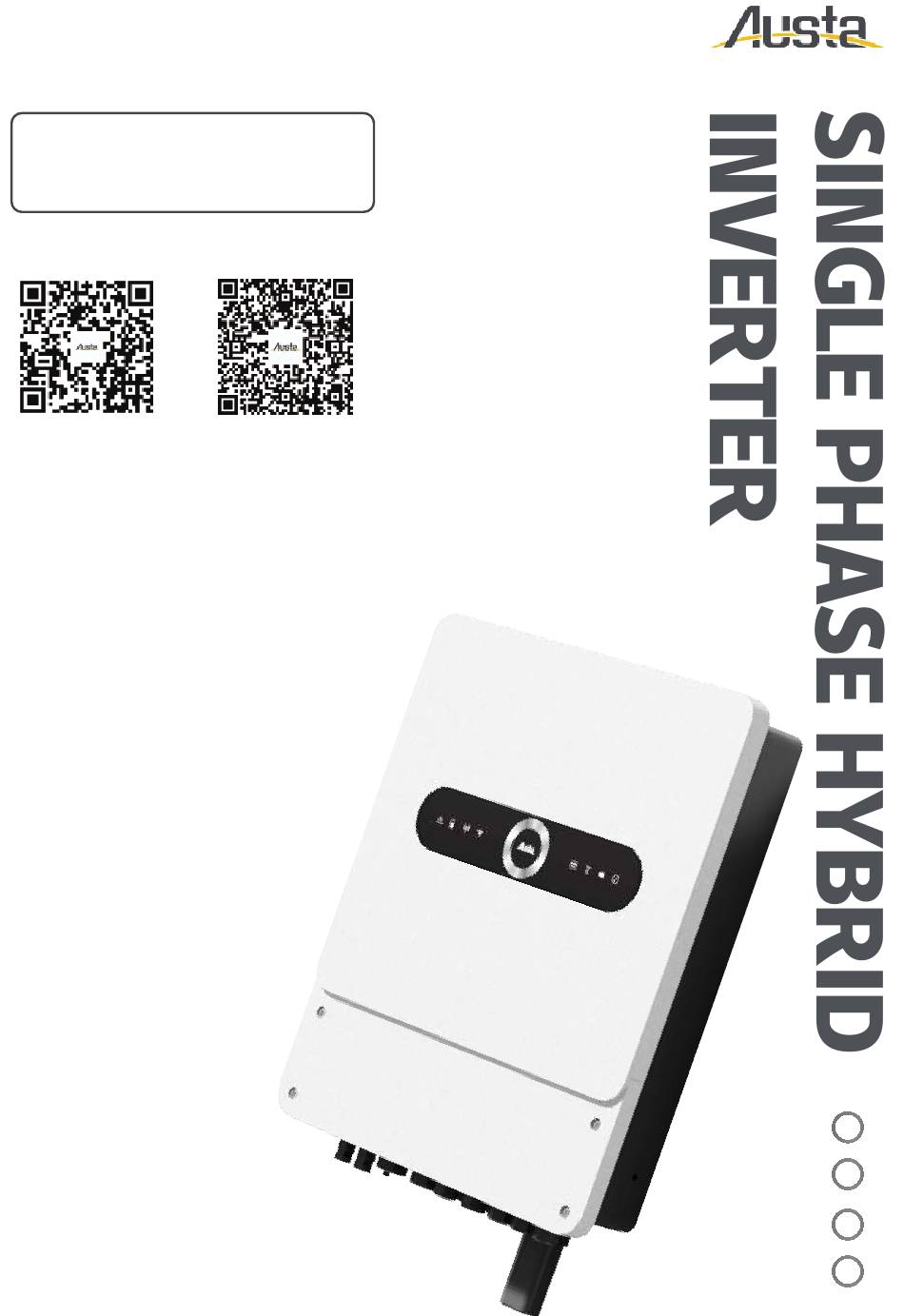

- Page 1 AU 3~6KESL USER MANUAL Scan Here for Austa Solar App Android www.austasolar.net marketing@osdasol.com NINGBO AUSTA SOLAR TECH CO.,LTD...
-
Page 2: Table Of Contents
Contents Contents Thank you for choosing AUSTA Hybrid inverter. In order to ensure your safety and proper use, please read the manual in details before using. Thanks for your coopera�on! 1. INTRODUCTION 1.1 Safety & Warning 1.2 Product overview 2. INSTALLATION INSTRUCTIONS Unacceptable installations 2.2 Packing list... -
Page 3: Introduction
The package/product must be protected from excessive humidity and must be stored under cover. Inverter will be touchable or operable a�er minimum 5 minutes of being turned off or totally disconnected, in case of any electrical shock or injury. 5min Austa Series Hybrid Inverter user manual... -
Page 4: Product Overview
Off = back-up is off/ no power available On = bms and meter communica�on ok Blink1 = meter communica�on ok, bms communica�on fail Blink2 = bms communica�on ok, meter communica�on fail Off = bms and meter communica�on fail Austa Series Hybrid Inverter user manual... - Page 5 Blink 2 = Wi-Fi not connect to router Wi-Fi Blink 4 = Wi-Fi server problem Off = Wi-Fi not ac�ve On = fault has occurred Fault Blink = overload of back-up outpu�reduce load Off = no fault Austa Series Hybrid Inverter user manual...
-
Page 6: Installation Instructions
On receiving the inverter, please check to make sure all the components as below are not missing or broken. Inverter*1 Wall-mounted Bracket l*1 CT*1 Data Collector*1 Positive DC Plug*2 Negative DC Plug*2 Net cable*1 Battery terminal*2 Expansion Bolts*2 Hexagon head screw*2 Cold terminals*9 Hexagon head screw*2 Austa Series Hybrid Inverter user manual... -
Page 7: Mounting
Step3: Finally, screw fixa�on, both screws need to be fixed. Add an�-the� locks as needed. NOTE: Make sure the screws between the inverter and the fixing plate are fixed �ghtly shedding. Step4: Ground cable shall be connected to ground plate on grid side . Austa Series Hybrid Inverter user manual... -
Page 8: Electrical Wiring Connection
· Ba�ery power cable should be 20~25mm². · Use special crimper to compress ba�ery terminal �ghtly. Step3: Screw the cap on and plug onto inverter side. NOTE: · Please make sure polarity (+/) of ba�ery are not reversed. Austa Series Hybrid Inverter user manual... -
Page 9: On-Grid & Back-Up Connection
An external AC switch (>32A) is needed for On-Grid connec�on to isolate from grid when necessary. Below are the require- ments on AC switch use: 2. On AC side, the individual switch should be connected before loads 1.Use a separate AC switch for individual inverter. (between inverter and loads). Austa Series Hybrid Inverter user manual... - Page 10 Inverter will restart itself as overload protec�on happens. The prepara�on �me for restar�ng will be longer and longer (max one hour) if overload protec�on repeats. Take following steps to restart inverter immediately: Decrease Back-Up load power within max limita�on. Austa Series Hybrid Inverter user manual...
- Page 11 All work should be performed by trained and qualified operators using safe and suitable tools. • Wiring system for hybridinverter 1. For ba�eeries with a�ached switch, the external DC switch is not necessary. 2.Only for lithium ba�ery which has BMS communica�on. 3.AC Breaker ≥ 32A. Austa Series Hybrid Inverter user manual...
- Page 12 Meter communica�on cable (RJ45) is a�ached on the inverter "To Meter" cable, could be extended to max 100m, and must use standard RJ45 cable and plug as below: Posi�on Color BMS(CAN)Func�on BMS(485)Func�on Meter Func�on Orange&white 485_B Orange 485_A Green&white 485_BI Blue CAN_H Blue&white CAN_L Green 485_AI Brown&white 485_A 485_BI Brown 485_B 485_AI Austa Series Hybrid Inverter user manual...
-
Page 13: Single Phase Parallel Connection Diagram
Home Load machine dial switch to ON, the other machine are not dial The sencond side of the CT only needs to connect the master inverter. Grid Arrow pointing inverter White wire Black wire Austa Series Hybrid Inverter user manual... -
Page 14: Manual Operation
3. When PV power and the grid mains is not available, the ba�ery will provide power to the load. NOTE In this mode, only the PV power can charge the ba�ery, and the ba�ery can only provide power to the load and can’t provide power to feed-in the grid. Austa Series Hybrid Inverter user manual... -
Page 15: Daily Operation And Maintenance
NOTE: In this mode, only the PV power can charge the ba�ery. to ensure the load can use pure electricity, the grid mains is not available. 3.4 Daily Opera�on and Maintenance iphone : Android: Search “Austa Solar "in Apple Store Search “Austa Solar" in Google Play Austa Series Hybrid Inverter user manual... -
Page 16: Trouble Shootings
UBATTERY 2. Check whether Ba�ery cables are firmly and correctly connected; The ba�ery is lower than 25V _LOSS 3. Restart the inverter 2-3 �mes; 4. if the fault s�ll exis�ng, Please contact your installer. Austa Series Hybrid Inverter user manual... -
Page 17: Fault Reference Codes
AC side over current fault 1. Please check whether the backup load power and common load power Over Iac AC over current fault are within the range; 2. Restart and check whether it is in normal; Austa Series Hybrid Inverter user manual... - Page 18 1. Check the AC voltage is in the range of standard voltage inspecifica�on; Under Ugrid se�ng value when the inverter isn’t 2. Check whether grid AC cables are firmly and correctly connected; running 3. If the error message s�ll remains, please contact your installer. Austa Series Hybrid Inverter user manual...
- Page 19 1. check the total power of the inverter; UBUS_LOW The BUS Voltage is Lower than 300V 2. Restart the inverter 2-3 �mes; 3. if the fault s�ll exis�ng, please contact us for help. Austa single phase energy storage inverter user manual...
- Page 20 • On-Grid & Back-Up Connec�on: Confirm On-Grid connected to public grid and Back-Up to loads : polarity ( L/N) not reversed. Problems During Opera�on Hybrid inverter not start up with only ba�ery Solu�on: 1. Make sure the voltage of ba�ery is higher than 48V, otherwise ba�ery cannot start Hybrid inverter up. Austa single phase energy storage inverter user manual...
- Page 21 Q: How to set the ba�ery charging and discharging current? A: Inverter factory default ba�ery charging current 10A and discharging current20A.You can adjust it according to the specifica�ons of the ba�ery used. Austa single phase energy storage inverter user manual...
- Page 22 1.Make sure you connected AU-WiFi (make sure no other devices connected) or router (ifconnected AU-WiFi to router) and on APP home page shows connec�on well. 2.Make sure Hybrid inverter under wai�ng mode (on APP) before you change any se�ngs on Austa Solar disconnect grid/load/ba�ery, only leave PV connected and then restart �ll see work mode as “wait" on APP.
- Page 23 Example are electricity meters, primary over-current protec�on Ⅵ equipment and other equipment connected directly to outdoor open lines. Moisture Loca�on Category Defini�on Level Moisture Parameters 4K4H Temperature Range 0~+40℃ -33~+40℃ -20~+55℃ Humidity Range 5%~85% 15%~100% 4%~100% Austa single phase energy storage inverter user manual...
- Page 24 9200,15 10000,15 10000,15 Rated output voltage(V) 230(±2%) Rated output frequency(Hz) 50/60(±0.2%) Max. output current(A) Battery Parameters Battery Type Lithium or lead acid battery Rated battery voltage(V) Voltage range(V) 44-57 Max. charge/discharge current(A) Austa single phase energy storage inverter user manual...
- Page 25 Storage temperature range(°C) -30~65 Humidity range 0~95% Operating altitude (m) ≤4000 Communication RS485/CAN/WiFi/Ethernet/4G Protection degree IP66 Noise (db) <25 Size (W×H×D mm) 424*555*197 Weight (kg) Standard EN 62109-1/2,IEC 62109-1/2,EMC 61000,EN50549,VDE 4105/0124,NRS 097-2-1,IEC61727/62116/61683 Austa single phase energy storage inverter user manual...
- Page 26 Search "Austa Solar" on Google Play and App Store marketing@osdasol.com 315600 Ningbo,P.R.C www.austasolar.net...
