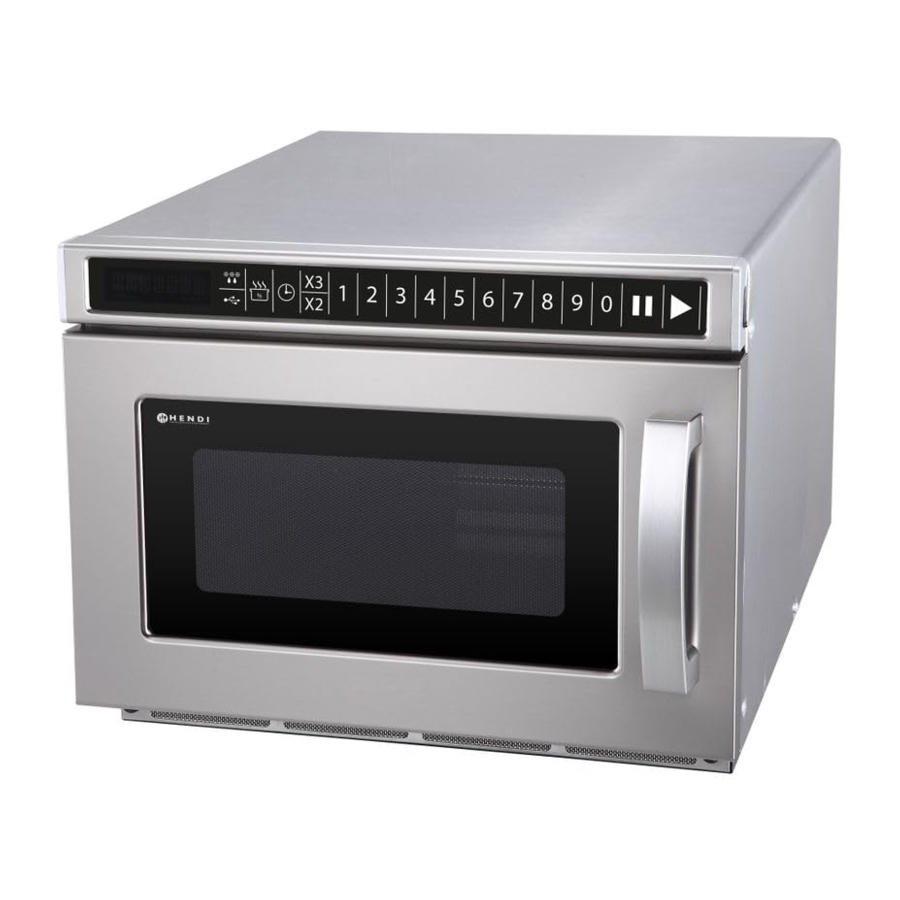

HENDI 281376 - MICROWAVE Manual

Preparations before first use

• Remove all packing material and accessories.
• Examine the microwave for any damage such as dents or broken door. Do not install if the microwave is damaged.
• Remove any protective film found on the microwave cabinet surface.
• Clean the inside of the microwave with lukewarm water and a soft cloth.
• Clean the components.
• Place the microwave on a level surface.
• Keep an open space of at least 10 cm around the microwave and 30 cm from top to ensure proper ventilation.
• Do not place anything on top of the microwave.
• Position the microwave so that the plug can always be reached.
• Place the oven as far away from radios and TV as possible. Operation of microwave may cause interference to your radio or TV reception.

Operation

1. Power
2. Time Entry
3. Double quantity or triple quantity
4. Pause
5. Start
6. Number Keyboard
7. Defrost
8. For USB operation
9. USB card

Power Up

When plug into the socket, --- will be shown on the display. It will disappear in 1 minute of inactivity. Then, this microwave will enter into the Idle Mode.

Idle Mode

During idle mode, the screen is blank and there will be no oven activity. Opening and then closing the oven door will activate the ready mode. The oven will enter idle mode after a minute of no use, The time it takes to activate idle mode can be changed with the 'user options' (Option 4, Timeout Window).

Ready Mode

Opening and closing the door while the oven is in Idle Mode will put the oven into Ready Mode. In this mode, the oven is ready to either begin a manual or preset cooking cycle. During Ready Mode, "READY" displays. From the Ready Mode, the oven can go to almost all of the other modes.

Door Open Mode

Door open mode is activated by opening the door. During this mode, the screen is blank. And the fan and oven lamp work. When the oven was working when the door was opened the program will be paused.

Manual Entry

Make sure the microwave is under "READY" mode. Select the time with the '' button, the display will show "00:00", select the requested time with the number keyboard. After that, select the power level. Press '' first and then select the power level with the number keyboard as shown in below table (Defrost /10%/20%/30%/40%/50%/60%/70%/80%/9 0%/100%). The display will show the selected power. If you press again the same power level button, the power will be back to set 100% power. Also, if no power level button is set, the power will be default to 100%. When everything is set press the ' ' button, now the microwave will start operating. At the end of the cycle the display will show 'DONE' or beeps will be heard until the microwave is opened or the 'pause' button is pressed.

Pause Mode

This mode allows users to pause the cycle to inspect or stir the food. While the microwave is operating open the door or press the 'pause' button to pause the cycle. The display will show the remaining time. To resume the cycle, close the door and press the 'start' button. When nothing is done the microwave will go into idle mode.

Run program mode

This microwave comes with preset programs. When the microwave is in 'ready mode' press one of the number keys and the microwave will run the program. Below you'll find the preset programs. When operating the microwave shows the remaining time in the display, when it's a multi-stage program the total remaining time will be displayed.

Programming

This microwave can preset up to 100 programs. See and follow "User options - 9 Double digit" session for setting program no. from 10 to 99. Open the door and press and hold "1" on the number keyboard for about 4 ~ 6 seconds, the buzzer will sound and the display will show 'PROGRAM' to indicate you entered program mode. Select the time with the '' button, the display will show "00:00", select the requested time with the number keyboard. After that, select the power level. Press '' first and then select the power level with the number keyboard as shown in below table (Defrost/10%/20%/30%/40%/50%/60%/70%/80%/90%/100%). The display will show the selected power. If you press again the same power level button, the power will be back to set 100% power. Also, if no power level button is set, the power will be default to 100%. After setting the time, power and press the 'start' button to safe the program. The display will show 'PROGRAM'. Close the door to return to 'ready mode'. If you want to cancel during programming, press the 'pause' button and the oven will return to the 'door open' mode and the program won't be saved.
Below a quick guide how to make a program of 1.25 minutes at 70% power:

1. Open the door and press number button '1' for about 4 ~ 6 seconds, display will show 'PRO- GRAM'.
2. Press number button '3', display shows P:03. After 2 seconds the display will show the time related with the program ':30'.
3. Press the number buttons '1' '2' '5' to set the cooking time.
4. Press '', and choose 7 on the number keyboard for power level 70%. The display will show '1:25 70'.
5. Press the '' button. The program is now saved under number keyboard '3'.

To overwrite the program repeat the steps above.
Note: Total programming time is limited to 60 minutes only.
Note: When the cooking time exceeds the maximum time the microwave can operate (standard 60 minutes) three beeps will be sound. This means you need to adjust the time before the program can work.

Double and triple quantity (X2 or X3)

This microwave is equipped with a function to calculate the amount of time needed when preparing a double or triple quantity of food. Press the 'X2' or 'X3' button followed by the program and the microwave double or triple the time you preset and start the process. This function can only be used in combination with a preset program.

Multi stage cooking

This function can be used during manual entry or programming. The maximum number of stages is 3. To use this function first follow the steps under 'Manual entry'. After setting the time and power of the first stage press '' again, the display shows 'STAGE-2', now input the desired time and power. If a third stage is needed, press '' once more, the display will show 'STAGE-3', and input the desired time and power. Now press the 'start' button to start the microwave. Multi stage input is set in a same manner while in programming mode. Bellow an example of how this could work:

1. Open the door and press and hold "1" on the number keyboard for 4 ~ 6 seconds, display will show 'PROGRAM'.
2. Press number button '3', display shows P:03. After 2 seconds the display will show the time related with the program (standard ':30').
3. Press the number buttons '1' '2' '5' to set the cooking time.
4. Press power , and choose 7 on the number keyboard for power level 70%. The display will show '1:25 70'."
5. To set the second stage press '' for button 2- time entry button., the display will show 'STAGE-2'.
6. Press the number buttons '3' '3' '0' to input the time.
7. Press , and choose 5 on the number keyboard for power level 50%. The display will show '3:30 50'.
8. Press the '' for button 5. The multi stage program is now saved under number keyboard '3'.

Note: Total cooking time is limited to 60 minutes only.
Note: When multi stage cooking is active the microwave shows the total time remaining of all stages.

How to program with the USB card and computer

Insert the USB card into computer and open the file called "Setup".

Double-click "MenuEdit" to enter editable interface. (Recommendation: Right-click and choose 'Run as administrator')

Set the maximum cooking time of single menu.

Set the first program, two stages of cooking can be maximally set. Users can set the cooking time and power.

Click 'New Line' to create the second program, the third program, the forth menu, etc. 20 programs can be maximum ly set.

Click 'Export File' to export the file to the USB card. The file must be named 'Utable.c'. Click 'save' to finish the export.

Insert the USB card in the right side panel of the microwave and press the '' button. Display will now show 'LOADING'. If the update is successful the display will show 'SUCCESS', if it failed to load the programs it will show 'FAIL'.
Remarks for using USB card:

1. Small parts, choking hazard.
2. Please wait few seconds or more between plugging in and unplugging the USB card.
3. Do not unplug the USB card while in use or processing.
4. Other USB stick may not compatible with & may destroy the appliance.

Return to factory settings

To return the microwave back to the factory settings press and hold the 'play' and '0' button until the buzzer sounds, the display will show 'CHECK'. When the microwave restored the factory settings the display will show '11'. If returning to the factory settings failed the display will show '00', press 'play' button and the display will now show 'CLEAR' and the buzzer will sound once, after a check the display will either show '11' or '00'.

User options

This microwave allows the user to change some options. To change first start by opening the door and press '2' for 5 seconds, the display will show 'OP:-- '. Press the number button related with what needs to be changed, for example '2'. Now the display shows 'OP:22', keep pressing '2' until the desired setting is displayed 'OP:20'/'OP:21'/'OP:22'/'OP:23' (it cycles trough these options). To set the desired setting press 'start'. Now the change is saved. During changing the options you can cancel this by pressing 'pause'. The change won't be saved and the microwave will return to 'door open mode'. Bellow an list of the options that can be changes, bold printed items are the preset options.

Cleaning and maintenance

• Always remove the plug from the socket before cleaning the microwave.
• Beware: Never immerse the microwave in water or any other liquid!
• Clean the outside of the microwave with a damp cloth and water with mild detergent. And dry afterwards.
• Clean the inside and door with a damp cloth and water with mild detergent to remove all food and grease build up.
• Remove any spillage right after each use. Not cleaning can result in burnt is stains and bad smells.
• Keep the sealing gaskets on the door clean, clean them regularly with a wet cloth and water with a mild detergent.
• Never use aggressive cleaning agents or abrasives. Do not use any sharp or pointed objects. Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary. Do not use abrasive materials.
• Clean the grease and air filter regularly, the microwave might overheat when this isn't done properly or food will get contaminated with grease.

How to remove and re-install the air filter

This filter is placed before the air inlet and should be cleaned regularly to keep the chamber clean.

1. Turn the filter screws counterclockwise to unlock the filter and take it out. Wash the filter with lukewarm water with a mild detergent until it's clean as possible. Let the filter dry before re-installing it.

2. Re-install the filter screen, place the filter screws and turn them clockwise to lock the filter in position.
3. The microwave has a function to remind users of cleaning the filter every 30 days.
4. When the microwave display shows 'CLEAN FIL- TER' check if the filter needs cleaning, to erase this message from the display hold the 'pause' button for 3 seconds.

Make sure the splash shield is inslled correctly before use of the microwave oven!

How to remove and re-install the splash shield

Before removing or installing the shield, make sure the microwave is unplugged from the power outlet and the microwave is cool down.

1. Detaching: Hold the two buckle positions in front of the splash shield with your hands (position indicated by the arrows). Pull on the buckles in the direction of the arrows. Once the buckles are out gently take the splash shield down.
2. Wash the splash shield with lukewarm water and mild detergent.
3. Installation: Pick up the splash shield and lock the pins in the holes on the rear plate of the chamber, move the splash shield in position and re-attach the buckles.

Trouble shooting

The following events can be considered as normal effects of working with this microwave.

• Radio and TV reception may be interfered when the microwave is operating.
• The light of the oven might be dimmed when operating.
• During heating steam can come from the food and can accumulate on the cooler parts of the microwave like for instance on the door.

Technical specification

Item no.: 281376
Operating voltage & frequency: 230V~ 50Hz
Rated input power: 3000W
Rated output power: 1800W
Oven cavity capacity: 18 liters
Protection class: Class I
Microwave frequency: 2450MHz
Dimension: 420x563x(H)340 mm
Net weight: approximately 31,6 kg
USB card operation system requirements: Windows 2000/XP/2003/Vista or above
Remark: Technical specification is subjected to change without prior notification.

Safety regulations

• This appliance is intended for commercial use.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
•
  DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
•
  Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
•
  As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
•
  ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special safety regulations

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Never use this microwave without any food inside, it's very dangerous.
• This microwave is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp clothes and similar may lead to fire.
• Use the appliance only as described in this manual.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
•
  Hot surface! The temperature of the glass door and other accessible surfaces are very high during use. Touch the control panel only.
• This microwave should be cleaned regularly and any food deposits removed.
• This microwave is not to be operated by means of an external timer or separate remote control.
• Do not attempt to operate this microwave with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the microwave front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
•
  If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a certified technician.
• If the microwave isn't maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the microwave and lead to dangerous situations.
• Check if the grease filter and air filter are properly installed before using the microwave.
•
  It is hazardous for anyone other than a certified technician to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Only use utensils suitable for use in microwaves. Do not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature-sensitive plastics, wood or metal clips or wire ties. Do not use bowls with milled rims or plastic pots with the lid partially removed. Risk of fire.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the microwave and keep the door closed in order to stifle any flames.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwaves since they may explode, even after microwave heating has ended.
• The temperature of accessible surfaces may be high when the microwave is operating.
•
  The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
•
  Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The microwave shall not be placed in a cabinet unless it has been tested in a cabinet.
• Microwaves are not intended to be operated by means of an external timer or separate remote-control system.
• The door or the outer surface may get hot when the microwave is operating.
• The ceramic board inside the microwave chamber can become hot, don't touch it after use to prevent the risk of burn wounds.
• Never press down on the ceramic board forcefully.
• Place items gently inside the microwave chamber otherwise the ceramic board might be damaged.
• Do not place objects on the top of the appliance. Allow at least 15 cm of free space from the top surface of the appliance.
• The lamp inside the appliance is used for lighting. this lamp is not used for room illumination.
• Can cause burns. The appliance will become hot when it is in use. Please make sure that you do not touch the heating elements in the cooking cavity.
• Can cause burns. Cookware can also be heated by the heated food. Therefore, always use pothholders when you are removing cooked food from the appliance.
• Please ensure that the door closes properly when in use.
• Special care should be taken when moving or transporting the machine due to heavy weight. With at least 2 people or using a trolley for assistance. Move the machine slowly, carefully and never be inclined over 45°.
•
  Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this microwave.
•
  Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until microwave is properly installed and grounded.

Intended use

• The microwave is intended for professional use.
• The microwave is designed only for heating and defrosting of food products using appropriate dishes. Any other use may lead to damage to the microwave or personal injury.
• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.
This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Utensils

There may be certain non-metalic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
Cook on maximum power for 1 minute. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. Do not exceed 1-minute cooking time.

Hendi B.V.
Innovatielaan 6
6745 XW De Klomp, The Netherlands
Tel: +31 317 681 040
Email: info@hendi.eu

Hendi Polska Sp. z o.o.
ul. Firmowa 12 62-023 Robakowo, Poland
Tel: +48 61 658 7000
Email: info@hendi.pl

Hendi Food Service Equipment GmbH
Ehring 15
5112 Lamprechtshausen, Austria
Tel: +43 6274 200 10 0
Email: office.austria@hendi.eu

Hendi Food Service Equipment Romania S.R.L.
Str. 13 decembrie 94A, Hala 14
Brașov, 500164, Romania
Tel: +40 268 320330
Email: office@hendi.ro

PKS Hendi South East Europe SA
5 Metsovou Str.
18346 Moschato, Athens, Greece
Tel: +30 210 4839700
Email: info@pks-hendi.com

Hendi Italia S.R.L.
Via Leonardo da Vinci 4
39100 Bolzano (BZ), Italy
Tel: +39 800 727 438
Email: office.italy@hendi.eu

Hendi HK Ltd.
1208, 12/F Exchange Tower
33 Wang Chiu Road, Kowloon Bay, Hong Kong
Tel: +852 2154 2618
Email: info-hk@hendi.eu

Find Hendi on internet:
www.hendi.eu
www.facebook.com/HendiToolsforChefs
www.linkedin.com/company/hendi-food-service-equipment-b.v.
www.youtube.com/HendiEquipment
