HENDI 281710 - MICROWAVE WITH GRILL Manual

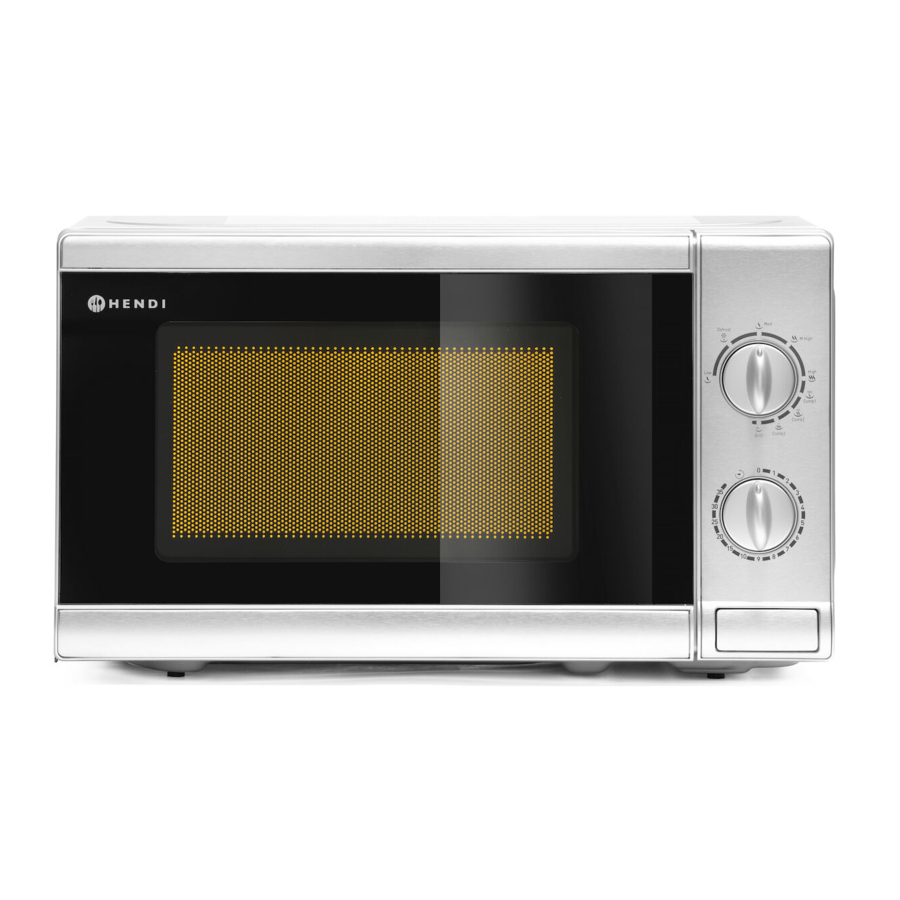

Main parts of the appliance

Control panel (See Fig.1)
Open door button
Turntable shaft
Turntable roller
Glass turntable
Glass window
Grill rack (Use in grill mode only)
Door locking mechanism
Door

Turntable installation

Never place the glass turntable (5) upside down.
Both the turntable roller (4) and glass turntable (5) must be used during cooking.
All the food and beverages must be placed on the glass turntable (5) for cooking.
Place the turntable roller (4), glass turntable (5) along vertical with the turntable shaft (3). Make sure they rotate smoothly.
Clean the glass turntable (5) after each use.
ATTENTION : DO NOT use the microwave if glass turntable (5) or turntable roller (4) cracks or damages, contact the supplier at once.
Use only the supplied turntable roller (4) and glass turntable (5).

Preparations before using for the first time

Remove all protective packaging and wrapping.
Check if the appliance is undamaged. In case of incomplete delivery or damages. Contact the supplier and DO NOT use the appliance (See ==> Warranty).
Keep the packaging if you intend to store your appliance in the future.
Clean the appliance before use (See ==> Cleaning and Maintenance).
Ensure the appliance is completely dry.
Place the appliance on a horizontal, stable and heat resistant surface that is safe from water splashes.
Do not place the appliance in close proximity to devices which are sensitive to disturbances by magnetic sources (e.g. radios, tape decks).

NOTE: Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

Location guideline

Operation

Place the microwave on a flat, stable, heat resistant and dry horizontal surface. Leave space for sufficient airflow:
- above the microwave: 30 cm
- at the back: 10 cm
- on both sides: 10 cm
Open the microwave door (9) by pressing the door release button (2).
Put the turntable roller (4) and glass turntable (5) in the correct place. Otherwise, it cannot rotate smoothly. (See ==> Turntable installation).
Connect the power plug to a suitable electrical supply outlet.

NOTES:

Do not place the microwave where heat, moisture or high humidity are generated, or near combustible materials.
Make sure the power cord is undamaged and does not run under the microwave or over any hot or sharp surfaces.
The power plug must be readily accessible so that it can be easily disconnected in an emergency.
ATTENTION: The grill rack (7) can be only be used in Grill mode.
The glass turntable (5) should be used in all modes: Microwave, grill and combination modes.
Use suitable dishes when use with grill rack (7) to avoid touching the walls of the appliance.
Place the food with container and close the door (9).

Setting Power level & Timer

Set the cooking power by turning the power knob to a desired power level on the control panel (1). (Microwave, combination or grill mode).
Set the cooking time (Range: 0 min ~ 35 mins) by turning the timer knob to the desired cooking time.
The microwave will start the cooking operation automatically after power and timer are set.
After the set cooking time is elapsed, "Dong" sound will be heard and the cooking operation is finished.
Now, you can take out the food. Use oven gloves if necessary (not included). Be careful of the hot surface.
If not use the appliance, always set the timer to "0" position.

Function	Approx. output power	Use of application
Low	120W	Soften ice-cream
Defrost	230W	Soup stew, soften butter or defrost
Med	385W	Stew, fish
M. High	540W	Rice, fish, chicken, minced meat
High	700W	Reheating milk, vegetables, boil water, beverage

NOTE: Above table showing the power level only refers to the microwave power output and not refer to the grill or power consumption of the appliance. The use of application is just for reference only.

Function	Operation	Use of application
Comb1	80% time: grill; 20% time: microwave	Grilling steaks, minced meat, kebabs, sausages and chicken parts.
Comb2	70% time: grill; 30% time: microwave	Chicken pieces, pork chops, fishes
Comb3	60% time: grill; 40% time: microwave	Puddings, omelettes, backed carrots and vegetables.
Grill	100% time: grill	Baked bread, sliced food

NOTE:

Above table showing the operation during combination and grill mode.
When taking out the food from the appliance, please ensure that the appliance is switched off by turning the Timer to the "0" position. Otherwise, it may cause damage to the appliance.
Above 2 tables are just for reference only. Actual cooking time and power setting will vary based on desired cooking effect. Change individual cooking time and power setting manually if necessary.

Cooking tips

This appliance can be opened at any time during the cooking process. It might be necessary, for example, to turn or stir food, or to check the food cooked thoroughly or not.
Terminate the cooking process by setting the timer to the "0" position manually.
Now, you can take out the food. Use oven gloves if necessary (not included). Be careful of the hot surface.
If not use the appliance, always set the timer to "0" position.

Cleaning and Maintenance

ATTENTION: Always unplug the appliance from the electrical power outlet and let it cool down completely before cleaning & storage.

Cleaning

Never immerse the appliance in water or other liquids.
Clean the cooled exterior surface with a slightly damp cloth or sponge with some mild soap solution.
Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance.
The glass turntable (5) can be removed for cleaning. Take great care when cleaning the glass turntable (5) to avoid damages. Clean it using warm, soapy water.
The turntable roller (4) and the bottom of the cavity should be cleaned regularly due to hygiene reason and to keep the turntable roller (4) running smoothly.
The luminary inside the oven is replaceable. But it should be done by authorized technician.

Storage

Before storage, always make sure the appliance has already been disconnected from the electrical outlet and cooled down completely.
Store the appliance in a cool, clean and dry place.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Problems	Possible cause	Possible solution
The appliance does not switch on	Power plug is not connected properly with the electrical outlet. Timer is set to "0" position. Door (9) is not fully closed.	Check the power plug to make sure it is connected properly. Set the timer to the desired cooking time. Make sure the door (9) is closed and locked in place.
Glass turntable makes noise during operation	Glass turntable (5) not installed correctly. Bottom of cavity is not flat due to some food residue left.	Make sure the glass turntable (5) installed correctly. Clean the bottom of the cavity to make sure it is flat.

Technical specification

Item no.	281710
Operating voltage and frequency	230V~ 50Hz
Microwave frequency	2450 MHz
Rated input power (Microwave)	1050 W
Rated output power (Microwave)	700 W
Rated input power (Grill)	1000 W
Oven capacity	20 litres
Timer setting	0 min ~ 35 min
Protection class	class I
Dimension	440 x 330 x (H) 259 mm

REMARK: Technical specification is subjected to change without prior notification.

Safety regulations

This appliance is intended for buffet and household use.
Only use the appliance for the intended purpose it was designed for as described in this manual.
The manufacturer is not liable for any damage caused by incorrect operation and improper use.
Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
Never attempt to open the housing of the appliance by yourself.
Do not insert objects into the housing of the appliance.
Do not touch the plug with wet or damp hands.
DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
Do not immerse the electrical parts of the appliance in water or other liquids.
Never hold the appliance under running water.
Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
Make sure that the power cord and/or extension cord do not cause a trip hazard.
Never leave the appliance unattended during use.
As long as the plug is in the socket the appliance is connected to the power source.
Turn off the appliance before unplugging it from the socket.
Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
Never carry the appliance by the cord.
Do not use any extra devices that are not supplied together with the appliance.
Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
This appliance should, under any circumstances, not be used by children.
Keep the appliance and its power cord out of reach of children.
ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special safety regulations

This appliance is intended for reheating, defrosting, grilling and cooking food or beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition of fire.
Use the appliance only as described in this manual.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential environments;
- bed and breakfast type environments.
Hot surface! The temperature of the door and other accessible surface is very high during use. Touch the control panel only.
Do not operate the appliance without food inside the oven cavity as it may damage the appliance.
Only use utensils that are suitable for use in the microwave oven. Do not use containers or cutlery made from or containing metal, aluminium foil, lead crystal glassware, temperature-sensitive plastics, wood or metal clips or wire ties. Do not use bowls with milled rims or plastic pots with the lid partially removed. Risk of fire.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Never use this appliance without any food inside, it's very dangerous.
Do not attempt to operate this microwave with the door open since this can result in harmful exposure to microwave energy. It is important not to break or bypass the safety interlocks.
Eggs in their shells and whole hard-boiled eggs should not be heated in the microwave oven since they may explode, even after microwave heating has ended.
If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a certified technician.
It is hazardous for anyone other than a certified technician to carry out any maintenance or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
Liquid and other foods must not be heated in sealed containers since they are liable to explode.
The contents of feeding bottles and baby food jars shall be stirred or shaken and check the temperature before use to avoid burns.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
The appliance is intended to be used freestanding. Do not block any vents. The information on adequate space (top / back / sides) for sufficient air circulation can be found in the "Before use" session.
Dishes may get hot due to the heated food. Use oven gloves (not included) to take the food out of the appliance.
The microwave oven should be cleaned regularly and any food deposits removed.
If the appliance isn't maintained in a good state of cleanliness, it will lead to deterioration of the surface that could adversely affect the life of the appliance and possibly in a hazardous situation.
Do not use the oven cavity for storage processes. Do not store items, such as bread, cookies, etc. inside the oven cavity.
This microwave oven is not intended to be operated by means of an external timer or separate remote-control system.
Place food inside the microwave cavity gently to avoid damage the glass turntable.
Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.
Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.
Do not clean or store the appliance unless it is completely cooled down.
No parts are dishwasher safe.

Intended use

This appliance is intended for buffet and household use.
The microwave is designed only for heating and defrosting of food products using appropriate dishes. Any other use may lead to damage to the microwave or personal injury.
Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

shock hazard This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Utensils

There may be certain non-metallic utensils that are not safe to use for this microwave. If in doubt, you can test the utensil following the below procedure.

Test of utensil:
Put a microwave safe container with 1 cup of cold water (about 250ml) together with the utensil inside the microwave. Cook on maximum power for 1 minute. Feel the utensil carefully. If the utensil becomes warm, DO NOT use it with the microwave. Do not cook the utensil over 1 minute.

Cooking utensils guide

Below a general guide to help you select suitable utensils:

Cooking utensil	Microwave mode	Grill mode	Combination mode	Remark
Heat-resistant glass	√	√	√
Non-heat-resistant glass	x	x	x
Heat resistant ceramics	√	√	√
Microwave-safe plastic dishes	√	x	x	Not suitable for high temp.
Kitchen paper	√	x	x	Short duration for warming only. Attended use.
Metal tray	x	√	x	Arcing occur if used in microwave.
Metal rack	x	√	x
Aluminum foil and containers	x	√	x
√: Suitable for use under the corresponding mode. Please follow the manufacturer's instruction and with the lid removed. Do not use if the surface is cracked or damaged. x: Not suitable for use under the corresponding mode.
