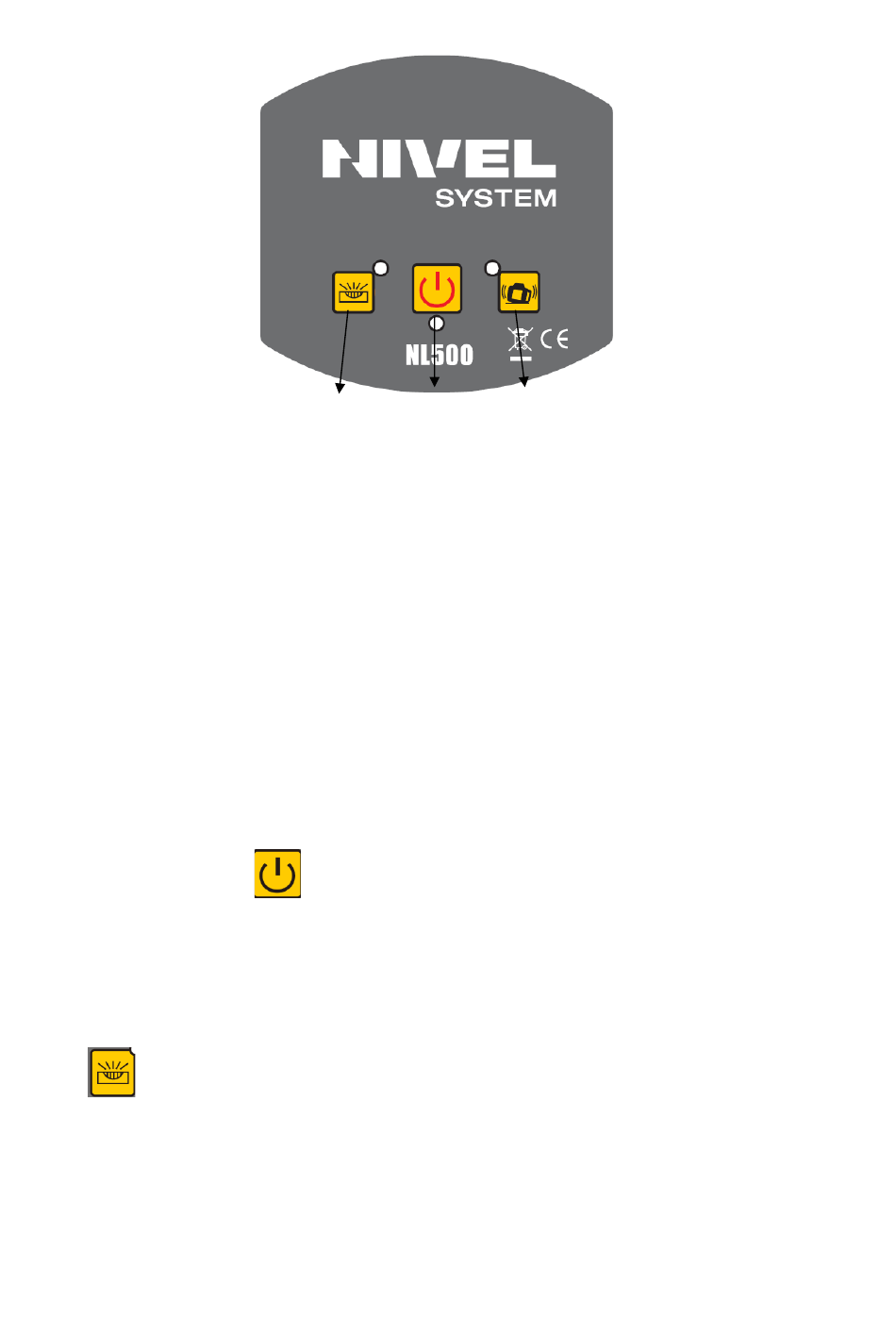

CONTROL PANEL

5, 4 1, 2, 3 6
Description of buttons and functions:
1) ON / OFF switch
- Turns the device on and off
2) LED declaring the power state of the instrument
- Lights red when the device is turned on
3) LED of discharged batteries
- While the LED is blinking, the batteries should be plugged in to charge.
4) LED of manual mode
- LED lights green when the unit is in manual mode
5) Manual / Automatic mode button
- Changes the instrument leveling from automatic to manual mode
6) ASD System (when ADS system is switched on - the LED flashes slowly)
- Too large inclination of the instrument or unwanted movement / strike of the instrument will
cause the LED will blink quickly - warning the user about disleveling of instrument
WORKING WITH LASER LEVEL
Turning on the power
On the front panel press . The instrument will level by itself and the power LED lights up.
Press the button again to turn off the power.
Once leveled up, the laser LED stops blinking and the laser head rotates at a speed of 600 rpm.
If instrument will be is set inclined more than ± 5 °, manual mode LED will start to blink.
Warning: If the unit will not level-up in time longer than 5 minutes, turn off and turn on the laser
level again.
Press to set instrument in manual mode
ADS System
Enable this system will cause the LED will blink slowly. After automatic levelling of the instrument,
after about 3 seconds, the ADS function is activated. Excessive inclination of the instrument or
unwanted movement / strike will cause the LED will blink quickly - warning the user about
disheveling.
