Part No. 237–302
PRO 5500hc Recirculation Kit; To convert the PRO
5500sc spray gun to the PRO 5500hc recirculating
spray gun; Includes items 301–311
Ref.
No. Part No. Description
301 237–443 RECIRCULATION TUBE; SST
302 112–909 NUT; SST
303 112–910 FERRULE, back; SST
304 112–911 FERRULE, front; SST
305 189–549 FITTING, quick-disconnect, male
306 189–551 FITTING, quick-disconnect, female
307 111–450 O-RING
308 237–298 COILED TUBE ASSY.
309 112–644 NUT; nylon; for 1/4" O.D. tube
310 111–285 FERRULE; nylon
311 111–286 FERRULE; nylon
302
303
304
305
307
306

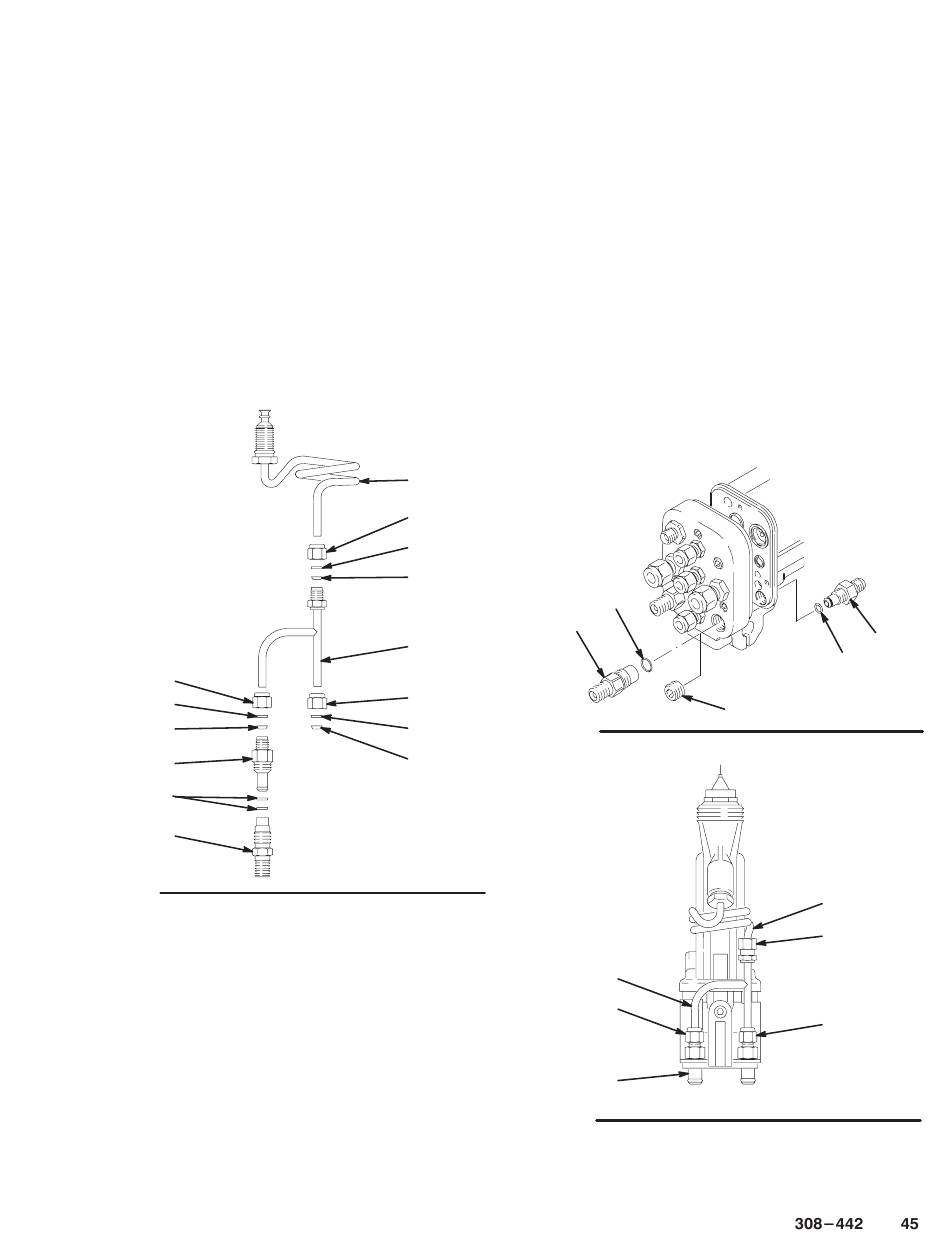

Fig. 38

Installing the Recirculation Kit

1. Follow steps 1 to 7 of Installing the PRO 5500hc
Conversion Kit, page 44.
2. Remove the plug (E) from the manifold P2 port,
and install the female fitting (306). See Fig. 39.
3. Install the male fitting (305) into the gun body.
4. Install one o-ring (307) on the male fitting (305)
and one o-ring into the female fitting (306).
Kit Parts and Installation
308
309
310
311
301
302
303
304
03956A
5. Slide the stainless steel nuts (302) and ferrules
(303 & 304) onto the two ends of the recirculation
tube (301). See Fig. 38.
6. Install the recirculation tube (301) into the fluid
supply and return fittings, as shown in Fig. 40.
Qty.
Tighten the two nuts (302) securely with a wrench.
1
2
7. Slide the nylon nut (309) and ferrules (310 & 311)
2
onto the coiled tube assembly (308). See Fig. 38.
2
1
8. Install the coiled tube assembly (308) into the
1
recirculation tube (301), as shown in Fig. 40, and
2
tighten the nut (309). Make sure the entire tube is
1
1
clear of the actuator arm to avoid having the tube
1
rub against it during operation.
1
9. Install the gun onto the manifold as instructed on
page 37.
307
306
Fig. 39
301
302
303
304
305
Fig. 40
305
307
E
03936
308
309
310
311
302
303
304
03937
