ADVANCED OPERATIONS
Operating RTTY

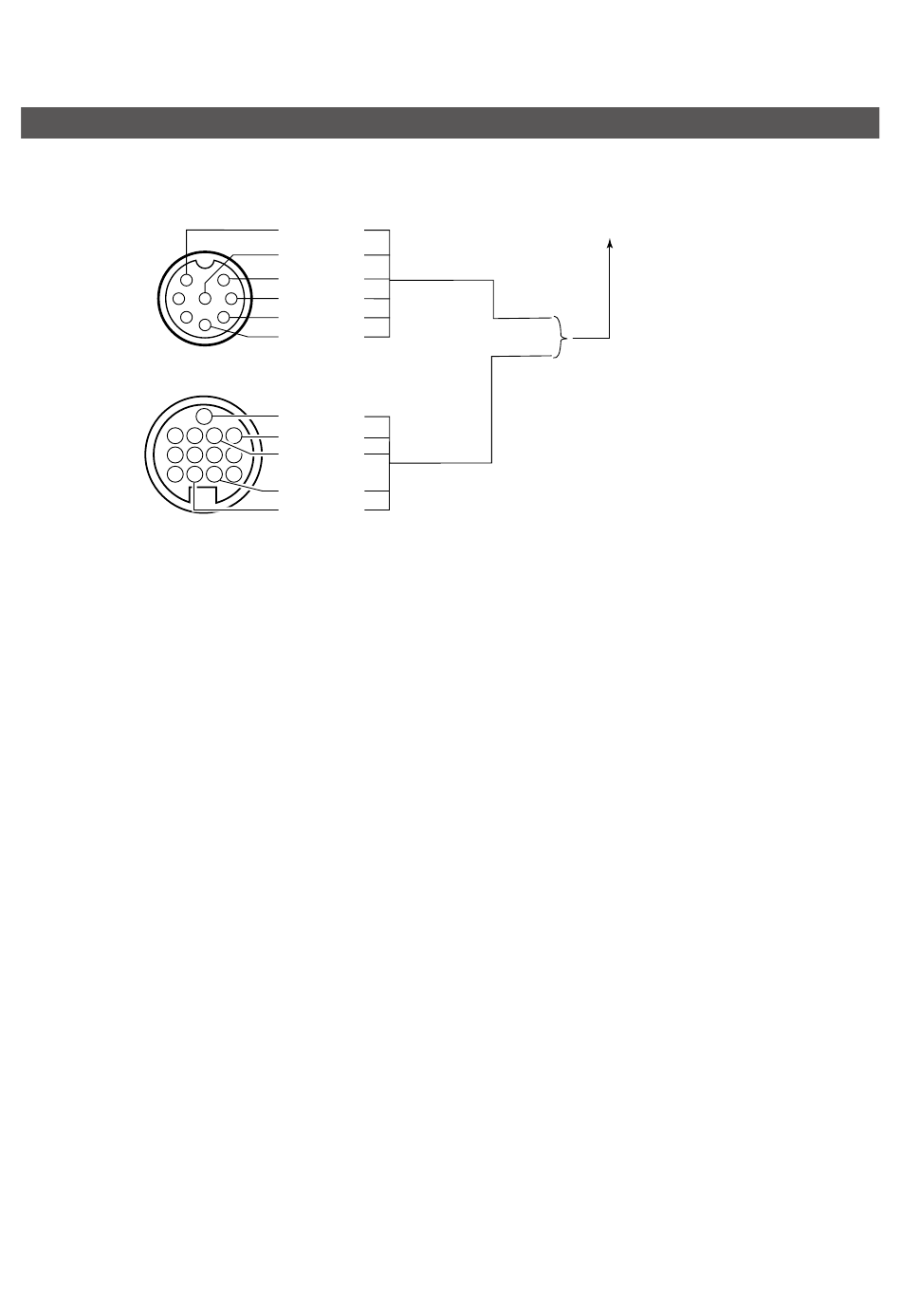

D Connections for RTTY (AFSK)

[MIC]
(Front panel view)
1
2
3
[ACC]
(Rear panel view)
9 10 11 12
5 6 7 8
1 2 3 4

D RTTY (AFSK) operation

1� Select the SSB (LSB) mode by pushing [MODE]�
L Usually LSB is used on the HF bands�
2� Select the desired FSK tone frequency, shift
frequency, and keying polarity, as described on
the previous page�
3� Set the desired operating frequency by rotating
[MAIN DIAL]�
4� Start using the PC or TNC (TU)�
1 MIC input
8 AF output
7 MIC GND
7
6 PTT GND
8 6
5
5 PTT
4
4 SQL
13 13 SQL* 1
12 AF output
11 AF input
3 SEND
2 GND
To a TU or TNC, and a personal computer�
Use either the ACC or microphone connector�
*1 Connect the SQL line, if necessary�
2-9
