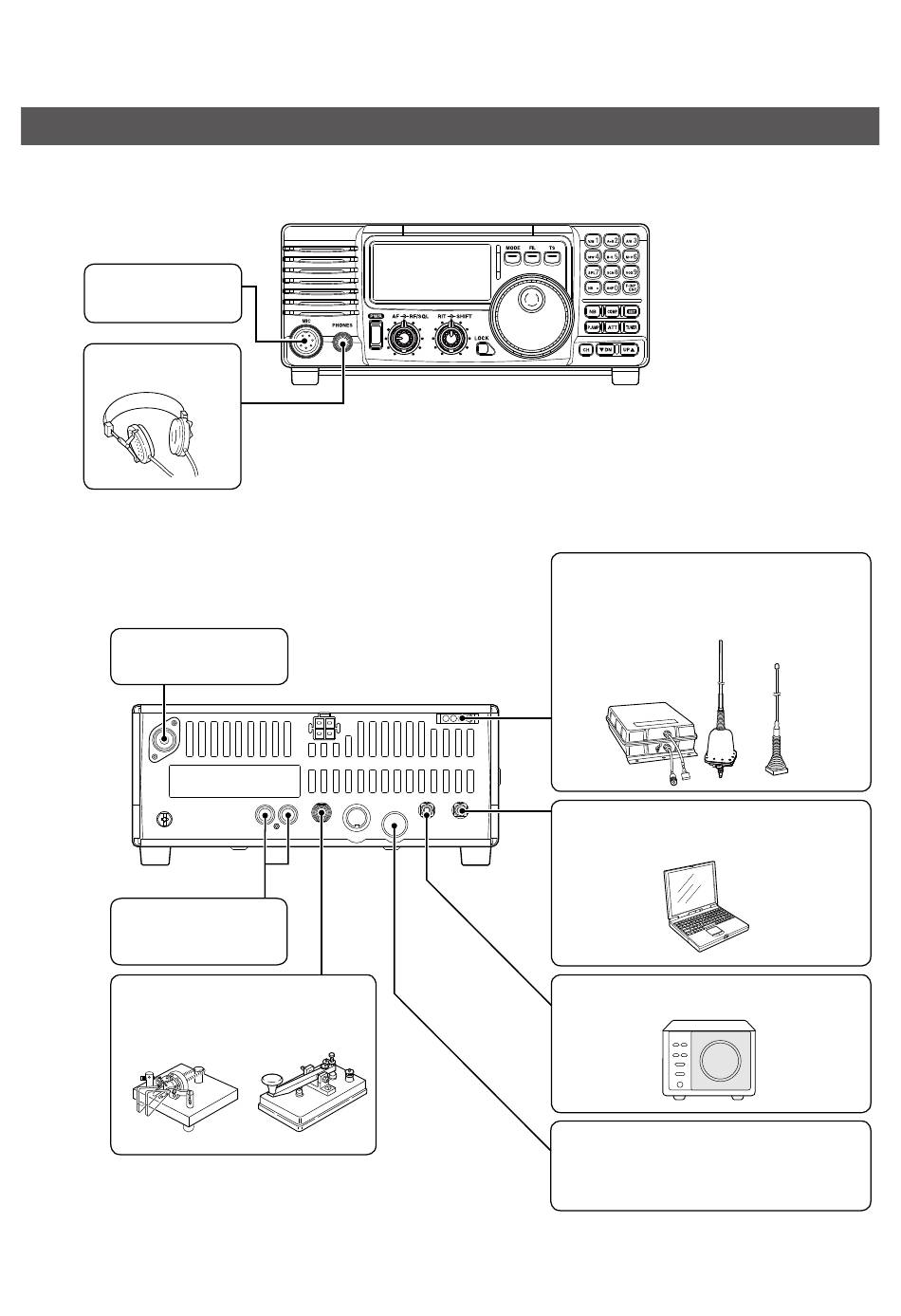

ADVANCED CONNECTIONS
Advanced connections
D Front panel
[MIC]
AFSK modulation signal
input (p� 2-9)
[PHONES]
A headphone
D Rear panel
[ANT]
Connect an antenna, linear
amplifier, and so on.
[ALC], [SEND]
Connect a non-Icom linear
amplifier. (p. 1-3)
[KEY]
Connect an external electronic keyer�
Set "Key Type" in the Initial Setup mode,
according to the keyer type� (p�2-6)
[TUNER]
Connect the control cable from an optional
automatic antenna tuner such as the AH-730 or
AH-740 automatic tuning antenna�
[REMOTE]
Connect a device for remotely controlling the
transceiver using the CI-V commands� (p� 5-2)
[EXT SP]
Connect an external speaker�
[ACC]
Connect control lines for external devices such as a
TNC or a PC� (p� 2-8, p� 2-9)
Refer to the external device's manual for
connection�
