Icom IC-718 Advanced Manual page 5

1
ADVANCED CONNECTIONS

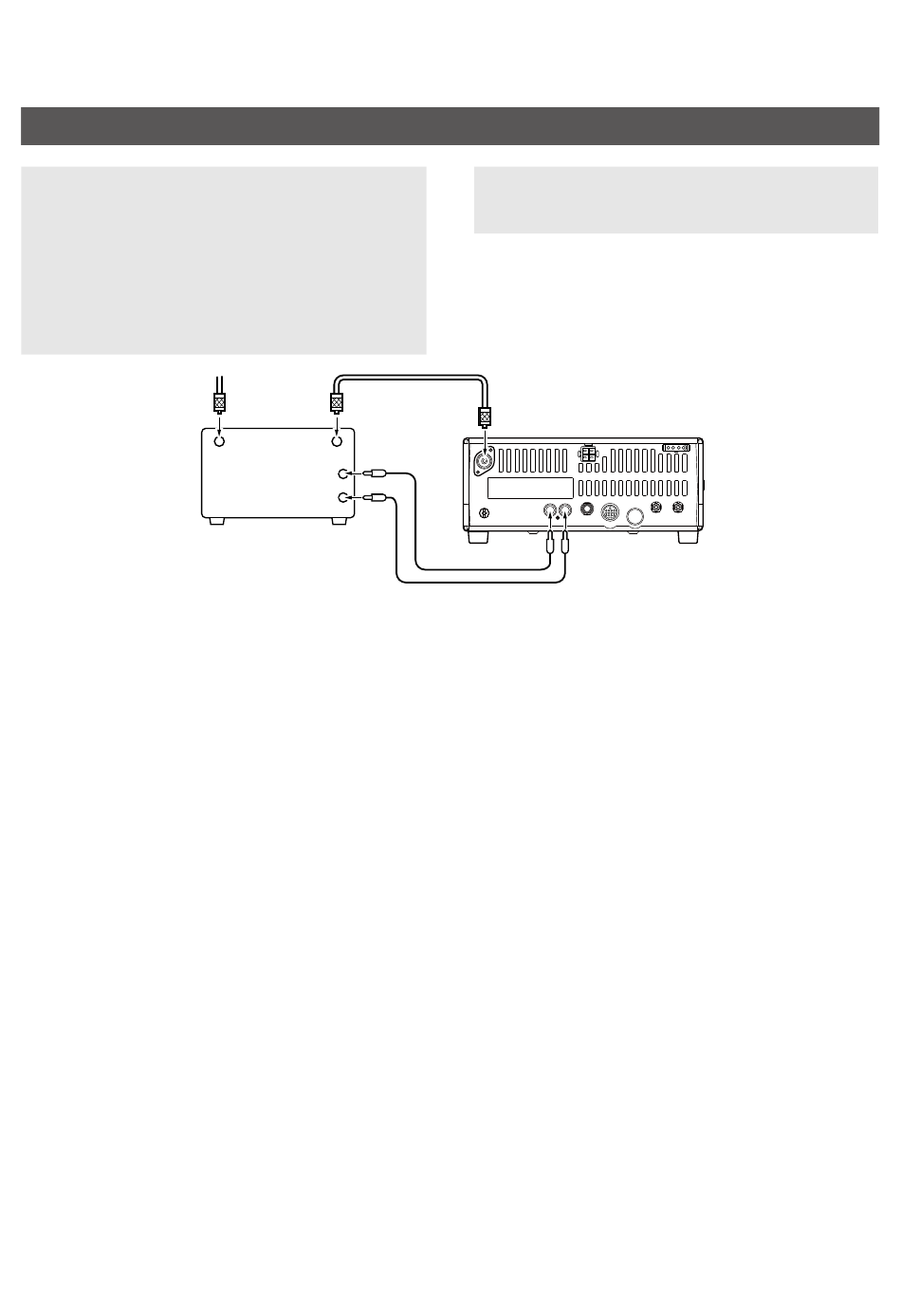

Connecting a non-Icom linear amplifier
R WARNING!
• Set the transceiver output power and linear
amplifier ALC output level referring to the linear
amplifier's manual.
• The ALC input level must be from 0 V to –4 V.
• The transceiver does not accept a positive
voltage. Therefore, unmatched ALC and RF
power settings could cause a fire or ruin the linear
amplifier.
To an antenna
RF OUTPUT RF INPUT
SEND
ALC
Non-Icom
Linear amplifier
NOTE: The specifications for the SEND relay are
16 V DC 2 A� Above this level, larger external relays
must be used�
50 Ω coaxial cable
To [ANT]
To [SEND] To [ALC]
1-3
IC-718
