WPM Touch +2 Box
3

Mounting

3.1 Extension box mounting

The controller is attached to the wall with the 3 screws and
dowels (6 mm) included in the scope of supply. The following
installation procedure must be followed to avoid soiling or dam-
aging the controller:
Open the controller cover (Fig. 3.2 on page 3)
174

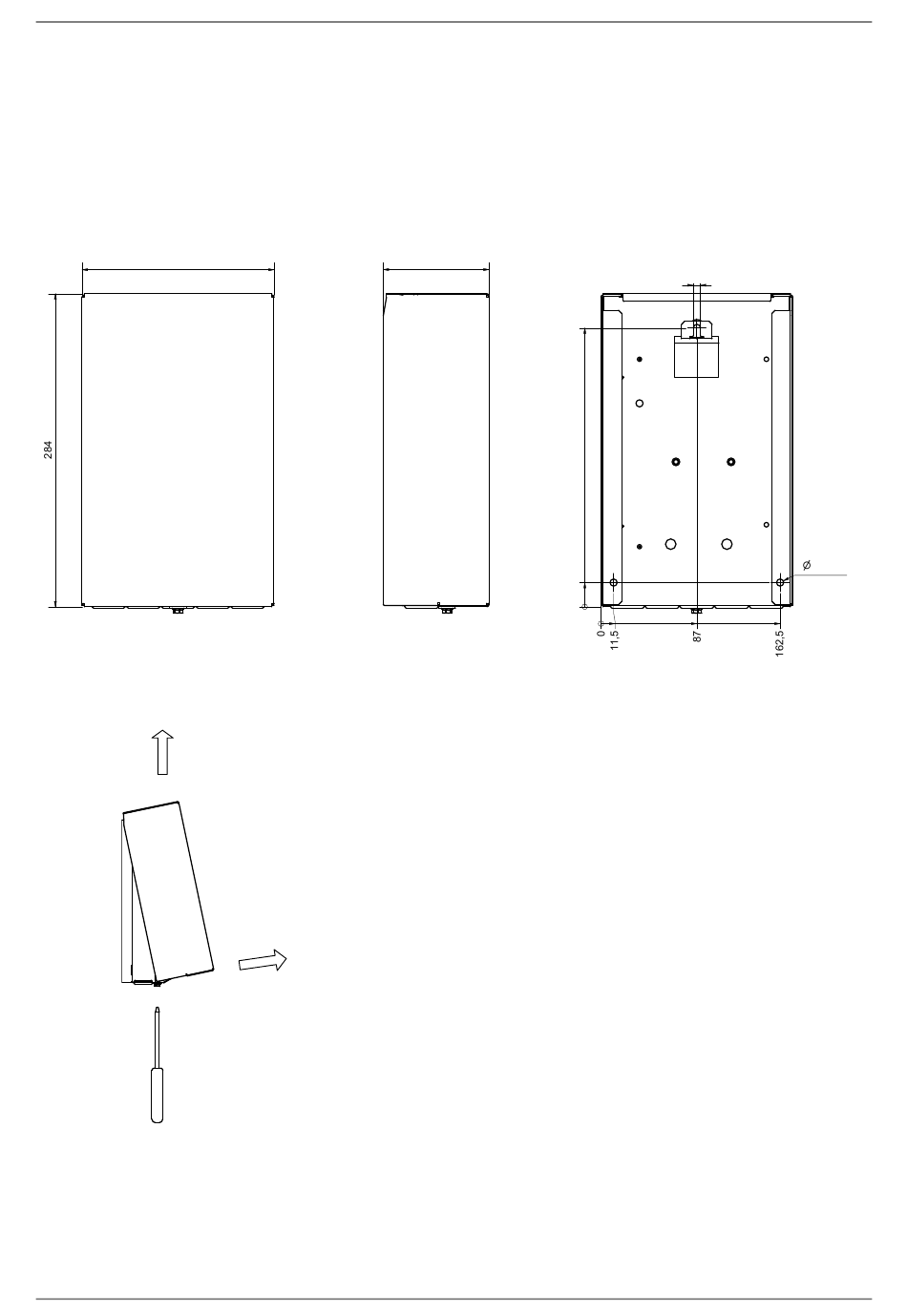

Fig. 3.1:Extension box dimensions
3
1
Fig. 3.2:Open the cover
www.dimplex.de
2
452117.66.36-EN · FD 0301
Mount the dowels for the upper fastening eyelet at opera-
tor level.
Screw the screw into the dowel so that the controller can
be mounted.
Mount the controller by the upper fastening eyelet.
Mark the position of the side drill-holes.
Unhook the controller.
Mount the dowels for the side drill-holes.
Remount the controller at the top and tighten the screws.
96
253
22
0
English
6,4
6,4(2x)
3
