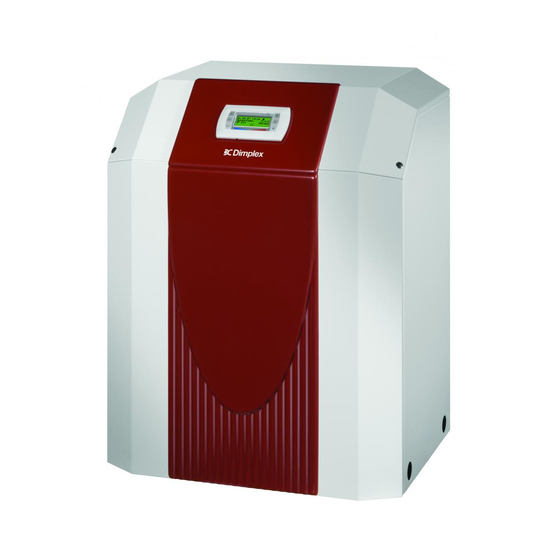

Dimplex SI 11ME Installation And Operating Instructions Manual
Brine-to-water heat pump for indoor installation
Hide thumbs
Also See for SI 11ME:
- Installation and operating instructions manual (56 pages) ,
- Installation and operating instructions manual (44 pages)
Advertisement
Quick Links
SI 5ME
SI 7ME
SI 9ME
SI 11ME
SI 14ME
Sole/Wasser-
Wärmepumpe für
Innenaufstellung
Bestell-Nr. / Order no. / N
Brine-to-Water
Heat Pump for
Indoor Installation
o
de commande : 452232.66.13
Montage- und
Gebrauchsanweisung
Installation and
Operating Instructions
Instructions d'installation
et d'utilisation
Pompe à chaleur
eau glycolée-eau
pour installation
intérieure
FD 8705
Advertisement
Chapters
Related Manuals for Dimplex SI 11ME
Summary of Contents for Dimplex SI 11ME
- Page 1 SI 5ME SI 7ME SI 9ME SI 11ME SI 14ME Sole/Wasser- Wärmepumpe für Innenaufstellung Bestell-Nr. / Order no. / N de commande : 452232.66.13 Montage- und Gebrauchsanweisung Installation and Operating Instructions Instructions d’installation et d’utilisation Brine-to-Water Heat Pump for Indoor Installation Pompe à...
-
Page 2: Table Of Contents
Table of contents Please Read Immediately ...E-2 1.1 Important Information... E-2 1.2 Legal Regulations and Directives ... E-2 1.3 Energy-Efficient Use of the Heat Pump ... E-2 Purpose of the Heat Pump ...E-3 2.1 Application ... E-3 2.2 Operating Principle ... E-3 Basic Device ...E-3... -
Page 3: Please Read Immediately
ATTENTION! The heat pump is not secured to the wooden pallet. ATTENTION! The heat pump must not be tilted more than 45° (in any direction). ATTENTION! Do not use the holes in the panel assemblies for lifting the device! ATTENTION! Flush the heating system prior to connecting the heat pump. -
Page 4: Purpose Of The Heat Pump
A circulating pump then conveys the “heated” brine to the evaporator of the heat pump. There the heat is given off to the refrigerant in the refrigerating cycle. This cools the brine so that it can once again absorb thermal energy in the brine circuit. -
Page 5: Accessories
Transport A lift truck is suited for transporting the unit on a level surface. Carrying straps may be used if the heat pump needs to be trans- ported on an uneven surface or carried up or down stairs. These straps can be passed directly underneath the wooden pallet. -
Page 6: Installation
The antifreeze function of the heat pump controller is active whenever the controller and the heat circulating pumps are ready for operation. If the heat pump is taken out of service or in the event of a power failure, the system has to be drained. The heat-... -
Page 7: Commissioning
The heat pump is started up via the heat pump controller. ATTENTION! The heat pump must be started up in accordance with the installation and operating instructions of the heat pump controller. If an overflow valve is fitted to assure the minimum heating water flow rate, the valve must be set in accordance with the require- ments of the respective heating system. -
Page 8: Maintenance And Cleaning
If you cannot correct the fault yourself, please contact your after- sales service technician. ATTENTION! Any work on the heat pump may only be performed by authorised and qualified after-sales service technicians. ATTENTION! Disconnect all electrical circuits from the power source prior to opening the device. -
Page 9: Device Information
The specified values, e.g. B10 / W55, have the following meaning: Heat source temperature 10 °C and heating water flow temperature 55 °C. 2. Note that additional space is required for pipe connections, operation and maintenance. 3. See CE declaration of conformity 4. The heat circulating pump and the heat pump controller must always be ready for operation. SI 5ME IP 20 Indoors °C... - Page 10 2.2 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 7ME ...A-IV 2.3 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 9ME ...A-V 2.4 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 11ME ...A-VI 2.5 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 14ME ...A-VII Stromlaufpläne / Circuit Diagrams / Schémas électriques...
-
Page 11: Maßbilder / Dimension Drawings / Schémas Cotés
1 Maßbilder / Dimension Drawings / Schémas cotés 1.1 Maßbild / Dimension Drawing / Schéma coté A-II... -
Page 12: Diagramme / Diagrams / Diagrammes
2 Diagramme / Diagrams / Diagrammes 2.1 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 5ME www.dimplex.de A-III... -
Page 13: Kennlinien / Characteristic Curves / Courbes Caractéristiques Si 7Me
2.2 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 7ME A-IV... -
Page 14: Kennlinien / Characteristic Curves / Courbes Caractéristiques Si 9Me
2.3 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 9ME www.dimplex.de... -
Page 15: Kennlinien / Characteristic Curves / Courbes Caractéristiques Si 11Me
2.4 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 11ME A-VI... -
Page 16: Kennlinien / Characteristic Curves / Courbes Caractéristiques Si 14Me
2.5 Kennlinien / Characteristic Curves / Courbes caractéristiques SI 14ME www.dimplex.de A-VII... -
Page 17: Stromlaufpläne / Circuit Diagrams / Schémas Électriques
3 Stromlaufpläne / Circuit Diagrams / Schémas électriques 3.1 Steuerung / Control / Commande A-VIII... -
Page 18: Last / Load / Charge
3.2 Last / Load / Charge www.dimplex.de A-IX... -
Page 19: Klemmenanschlussplan / Terminal Connection Plan / Schéma De Connexion Des Bornes
3.3 Klemmenanschlussplan / Terminal Connection Plan / Schéma de connexion des bornes... -
Page 20: Legende / Legend / Légende
Bauteile sind extern beizustellen - - - - - bauseits bei Bedarf anzuschließen ––––– werksseitig verdrahtet www.dimplex.de Wire jumper, must be inserted if no blocking con- tactor is fitted Wire jumper, must be removed if the 2nd disable contactor is used... -
Page 21: Hydraulisches Prinzipschema / Hydraulic Plumbing Diagram / Schéma Hydraulique
4 Hydraulisches Prinzipschema / Hydraulic Plumbing Diagram / Schéma hydraulique 4.1 Darstellung / Schematic View / Représentation A-XII... -
Page 22: Legende / Legend / Légende
Soleverteiler Solesammler Soleumwälzpumpe Heizungsumwälzpumpe Warmwasserumwälzpumpe Außenwandfühler Rücklauffühler Warmwasserfühler Vorlauffühler Kaltwasser Warmwasser www.dimplex.de Shutoff valve Shutoff valve with drainage Overflow valve Safety valve Circulating pump Expansion vessel Room temperature-controlled valve Shutoff valve with check valve Heat consumer Dirt trap Temperature sensor... -
Page 23: Konformitätserklärung / Declaration Of Conformity / Déclaration De Conformité
5 Konformitätserklärung / Declaration of Conformity / Déclaration de conformité A-XIV... - Page 24 Glen Dimplex Deutschland GmbH Irrtümer und Änderungen vorbehalten. Geschäftsbereich Dimplex Subject to alterations and errors. Am Goldenen Feld 18 Sous réserve d’erreurs et modifications. D-95326 Kulmbach +49 (0) 9221 709 565 www.dimplex.de...
