Rielta PYRONE-6 Installation Manual

1 General Information

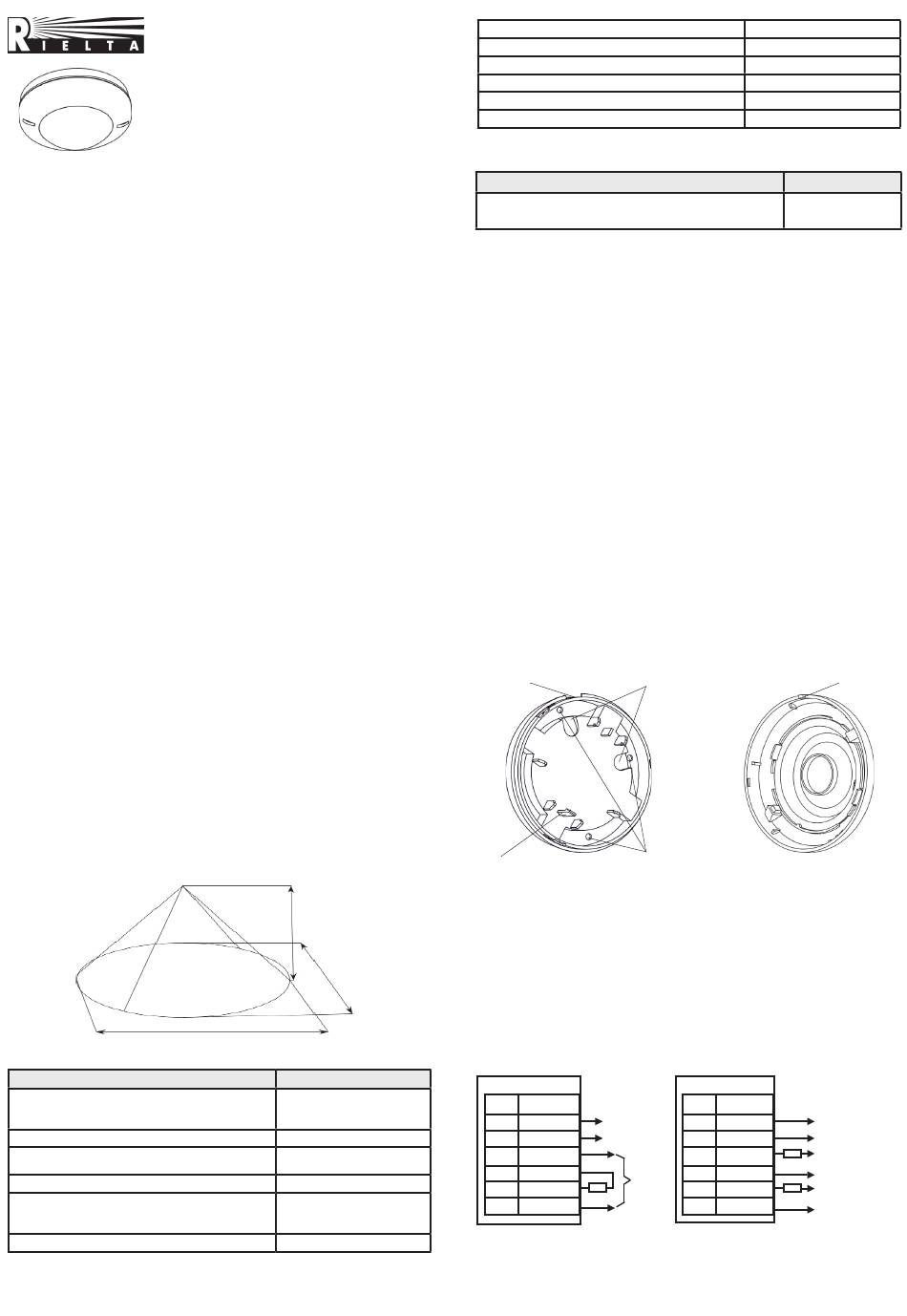

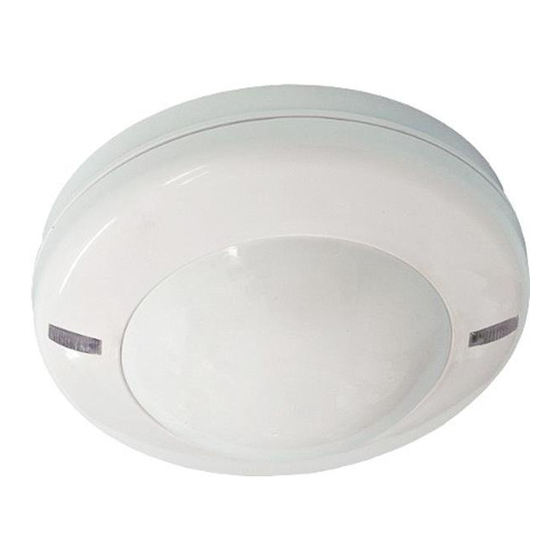

1.1 Passive infrared detector «Pyrone-6» (hereinafter, the Detector) is intended
for detecting intrusion into a closed protected space and generating an alarm
message by the relay contacts opening.
1.2 The Detector ensures tamper protection by means of TAMPER microswitch
relay contacts opening.
1.3 The Detector is resistant to the ambient light impact and radio interference.
1.4 The Detector is designed for continuous operation around the clock.
1.5 The Detector ensures absence of false alarms cased by movement of
small animals, background lighting, slow chanding of background temperature,
voltage pulses in power supply circuit, electrostatic discharge, electromagnetic
fields of FM band.
1.6 The Detector does not cause any interferences to comparable detectors
or detectors of other type and designation, as well as to household appliances.
1.7 The Detector comprises two double-color LED indicators (red and green)
for operability control. Microswitch provides derection of tanpering attempts.
1.8 The Detector comprises 4 dip-switches «1», «2», «3», «4», that provides
detection range choosing in accordance with the height of installation, testing
mode setting and LED indicators disabling.
1.9 The Detector generates 8 types of messages about it's state:
- warm up time – by the relay contacts opening followed by periodical red
LED indicator blinking during 1 minute;
- normal state – by the relay contacts closing, at the same time LEDs are
switched off;
- alarm – by the relay contacts opening followed by periodical red LED indicator
blinking during not less than 2 s;
- in case of unauthorized access – by opening microswitch contacts after
case decapsulation;
- about malfunction at:
1) voltage drop lower than 8,9
duplicated by periodical single-shot green-colored blinks of LED indicators during
15 minute;
2) ambient temperature rise exceeding +60
contacts duplicated by periodical double-shot green-colored blinks of LED
indicators during 15 minute ;
3) self-testing failure – by opening relay contacts duplicated by
periodical triple-shot green-colored blinks of LED indicators during 15 min;
2 Features
- The detector is designed for ceiling mounting.
- Sensing elements – two dual-element pyrodetectors.
- Digital temperature compensation.
- Unic lens provides wide-range detection zone with high filled density,
ensuring reliable detection of the intrusion at any direction.
- Protection against intrusion of insects to pyrodetector.
- Microprocessor-based signal processing.
- Choosing of installation height as well as the following modes: testing, alarm
memory, and LED indication.
- Self-test mode ensuranse.
- The detector is supplied from DС current supply unit with output voltage
(9...15) V.
3 Specifications
Figure 1 – Detection zone pattern
Table 1
Parameter
Detection zone diameter at mounting height:
- 5 m, not less than
- 2.5 m, not less than
Power supply, DC
Output relay contacts
Alarm message duration, not less than
Detection zone
Detection range at the installation height 5 m and 2.5 m
PASSIVE INFRARED
DETECTOR
«PYRONE-6»
Installation Guide
V – by opening relay contacts
-1
°С – by opening relay
+5
5 m
9 m
10 m
Value
9 m
4,5 m
9...15 V, current 17 mА
closed – «Norm» message,
current 30 mА, voltage 72 V
2 s
Wide-angle, cone-shaped.
Zones: 10 long-range,
1 middle-range,1 short-range
Is chosen by «1» DIP-switch
Operating temperature
Relative humidity at +25°С without moisture condensation
IP Rating
Dimensions (diameter х height), not more than
Weight, not more than
Service life, not less than
4 Scope of Delivery
Table 2
Name
Passive infrared detector «Pyrone-6»
Passive infrared detector «Pyrone-6». Installation Guide
5 Field of Application
The Detector can be used in private apartments, as well as in shops, offices,
museums, production facilities.
6 Choosing the Installation Place
When choosing the Detector installation place, it is advisable to take note
of the fact that the detection zone may be limited by non-transparent objects
(curtains, houseplants, cabinets, bookcases, etc.), as well as by glass and mesh
partitions. There must be no windows, air conditioners, space heaters or heating
radiators in the PIR-detection zone. Maximal installation height is 5 m. Distance
between the Detector and the farthest point of the monitored glass should not
exceed 6 m. The Detector microphone should be oriented strictly towards the
protected surface of a glass construction. The Detector wires should be laid far
enough from power supply cables.
7 Installation of the Detector
- Put off the Detector cover by its turning counter-clockwise full on to the
recess on the external ring of the Detector base and then rise the cover (see
Figure 2).
- Put off the printed circuit board (PCB) by unlatching the fixing arm, located
on the base.
- Drill the holes in the base (See Figure 3) for the Detector wiring and fastening.
- ВChoose the place of installation, mark the places for mounting holes with
regard to the openings on the detector base, drill holes in the place of installation.
- Pass wiring throuh the hole in the base, leave several centimeters for
fasening to leading-in-sockets inside the case.
- Fasten the base of the detector on the chosen place.
- Set down PCB on its place.
8 Connection
Base
Recess
Latch
Figure 2 – Base and cover of the Detector
- Leading-in-sockets of the Detector are located on the PCB.
- Fulfill connections in accordance with Figure 3 а) for hooking up to one AL
or Figure 3 b) with separate AL of tamper control.
- Set up the DIP-switches «1», «2», «3», «4» in accordance with particular
application conditions and Cl8 of this Installation Guide.
- Install the Detector cover on its place. For this purpose insert the bulge on
the base external ring, push the cover and turn it in clockwise order until tight.
Detector
Cont. Circuit
1 To power
-12V
supply unit
2 +12V
3 AL
4
AL
To CP
5 TAMPER
R
6 TAMPER
term
а)
minus 40...+55 °С
98 %
IP41
не более 105 х 45 mm
100 g
8 years
Cover
Port plugs for
wiring
Openable holes
for the base
fastening
Detector
Circuit
Cont.
1
-12V
To power
supply unit
2 +12V
3 AL Security AL
R
4
AL
term
Tamper-control
5 TAMPER
R
AL
6 TAMPER
term
b)
Figure 3
QNT
1 pc.
1 copy
Bulge
