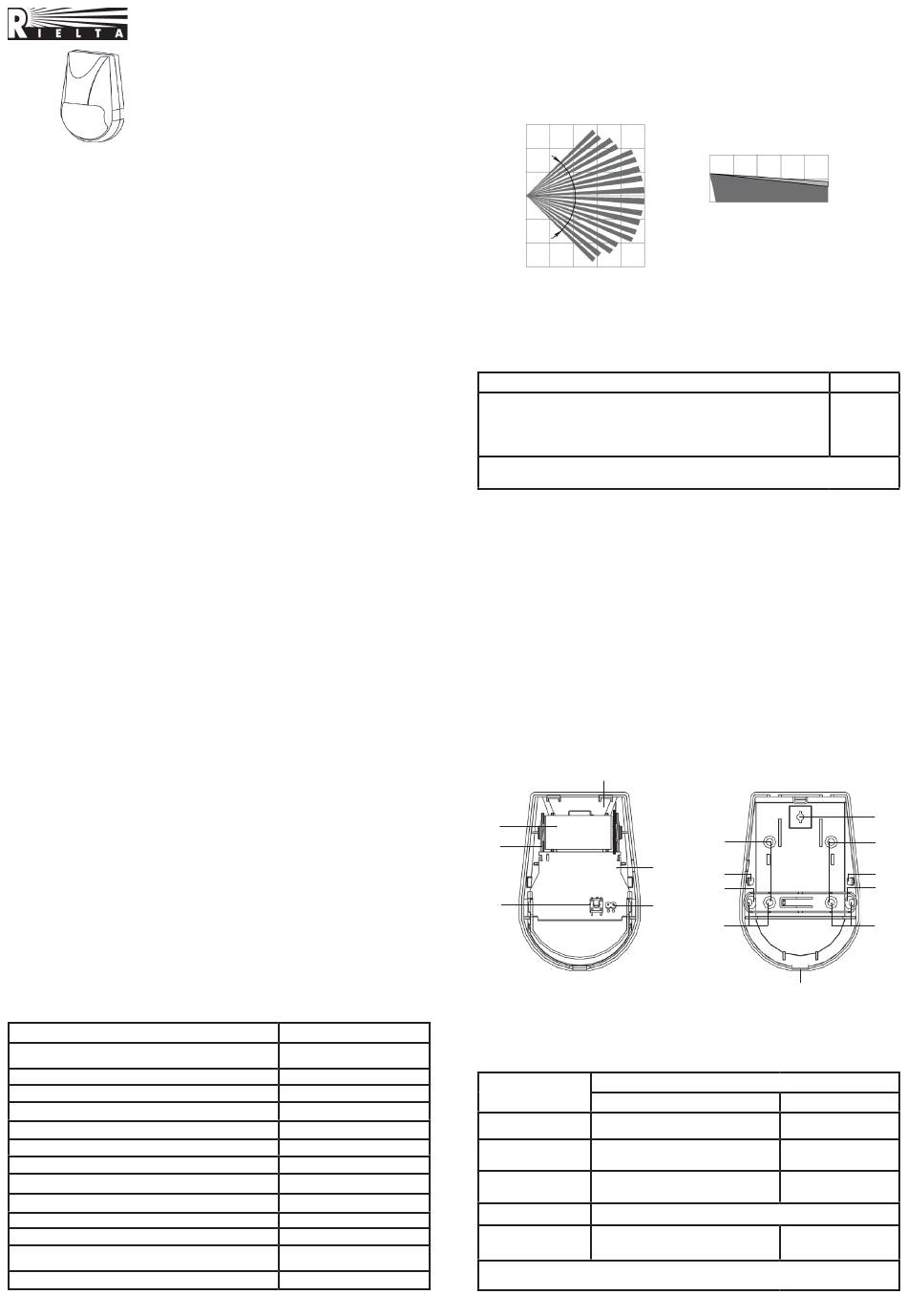

Rielta Pyrone-4RK Installation Manual

WIRELESS PASSIVE INFRARED

1 General Information

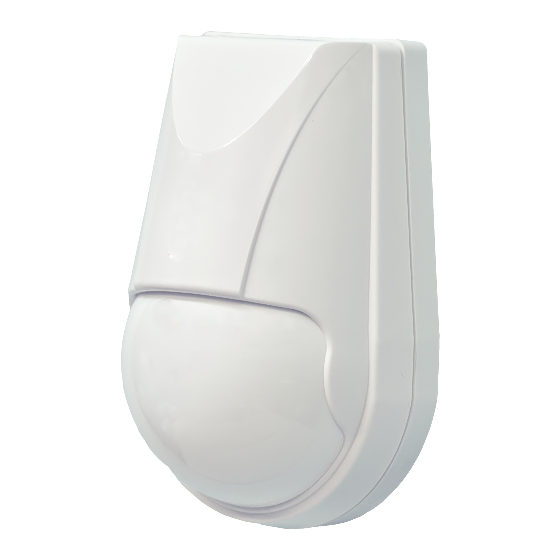

1.1 Wireless passive infrared detector «Pyrone-4RK» (hereinafter,
the Detector) is intended for detecting intrusion into a protected
premises, with generation of alarm messages via wireless two-way
communication channel within the 433.05
range by the «Rielta-Contact-R» protocol.
1.2 The Detector is intended to operate as a component of any
control panel (hereinafter, CP) supporting «Rielta-Contact-R» wireless
two-way communication protocol.
1.3 The Detector is powered by one lithium power-supply battery
CR123A type.
1.4 The Detector comprises two-color (red and green) LED indicator
for the Detector operation control, providing possibility of LED indication
disabling.
1.5 For choosing the sensitivity level, the Detector comprises a
DIP-switch. «Reset» contacts ensure the Detector changeover to the
«Binding» mode.
1.6 The Detector ensures generation and transmission of seven
messages types about the following modes and events:
- Normal state;
- Alarm;
- Tampering;
- Battery discharge;
- Operation in «Binding» mode;
- Operation in «Identification» mode;
- Quality of communication.
1.7 Radio exchange sessions are initiated by the Detector with the
following rates: 10, 15, 30 sec, 1, 5, 10 min. Session rate is assigned
during the Detector adjustment procedure. «Alarm» and «Tamper»
messages are transmitted immediately.
1.8 The Detector is designed to operate continuously around the
clock.
1.9 The Detector has immunity to movement of:
а) secondary prototype unit (mouse);
b) fancy breed cat or dog with weight up to 10 kg moving on the
floor within the detection zone at the distance not less than 2 m from
the Detector;
c) medium-sized dog with weight up to 20 kg moving on the floor
within the detection zone at the distance not less than 2 m from the
Detector;
d) long-hair animals with weight up to 40 kg with temperature
contrast 6 С.
о
1.10 The detector has the ability to change the sensitivity, which is
adjusted in accordance with the protocol «Rielta-Contact-R».
1.11 The Detector ensures with standability to electromagnetic
interferences.

2 Features

- Dual-element pyrodetector.
- Distortions prevention in the detection zone by means of spherical
lens.
- Protection against ingress of insects to the pyrodetector.
- Changing pet immunity mode via the radio protocol.
- Thermal compensation of detecting ability.
- Automatic switching to a backup operating frequency in case of
an imperfect interference situation on the main one.

3 Specifications

Table 1
Parameter
Detection zones
Maximum detection range, not less than
Current consumption, no more than
Recommended installation height
Detection zone size
Detected speed range
Operating temperature
Permissible humidity at a temperature +25
IP rating
Dimensions, maximum
Weight, maximum
Battery life (under normal climatic conditions and with a
radio exchange period equal to at least 60 sec)
Average service life
DETECTOR
«Pyrone-4RK»
Installation Guide
434.79 MHz frequency
—
Value
8 long-range zones,
4 short-range zones
10 m
20 μA
2.3 ± 0.1 m
10 m x 10 m
0.3 ... 3 m/sec
from minus 20 C to +55
0
0 С 98 %
IP41
90 х 60 х 50 mm
0.1 kg
8 years
8 years

4 Field of Application

The Detector can be installed in apartments, as well as in shops,
offices, museums and industrial facilities. The Detector may be installed
in premises that are inhabited by pets weighing up to 40 kg (20 kg).

5 Detection zone Pattern

Top view
90 о
0

6 Scope of Delivery

Each Detector unit package contains the items listed in Table 2.
Table 2
Wireless passive infrared detector «Pirone-4RK»
Swivel bracket
СR123A lithium power supply battery
Wireless passive infrared detector «Pirone-4RK». Installation Guide.
* Supplied optionally
** Installed

7 Design

The detector consists of a cover (1) with a printed circuit board (the
PCB) (2) and a base.
The cover with a PCB is shown in Fig. 2 a).
The PCB comprises:
- RESET contacts (3);
- tamper sensor (4);
- battery holder (5);
- lithium battery CR123A (6) with an insulator.
The base (Fig. 2 b) comprises:
- hole for mounting the base to the swivel bracket (7);
- wall mounting holes (8);
- PCB latches (9)
- corner mounting holes (10);
- holes for wall tamper latch (11);
- hole for cover lock (12).
а) a cover with a PCB
6
5
_
4

8 LED Indication

Table 3
Detector State
«Binding»
«Alarm»*
C
0
«Identification»
«Connection quality»
Binding procedure
completed
* Alarm indication is deactivated 15 minutes after the Detector cover is closed and activated
after it has been opened or by a command from the CP.
Side view
2,3 m
10 m
Figure 1
Name
б) the basе
1
8
+
2
9
10
RESET
3
11
«Pyrone-4RK»
Figure 2 - Design
LED Indication
LED status
LED indicator blinks green
LED indicator lights red for at least
0.5 sec
LED indicator blinks red and green
alternately at 1 Hz frequency
See «Communication Quality Appraising»
LED indicator lights red for 2 sec
10 m
QNT
1 pc.
*
1 pc.**
1 copy
7
8
9
10
11
12
Operation mode
if indication is enabled
by a command from
the CP
