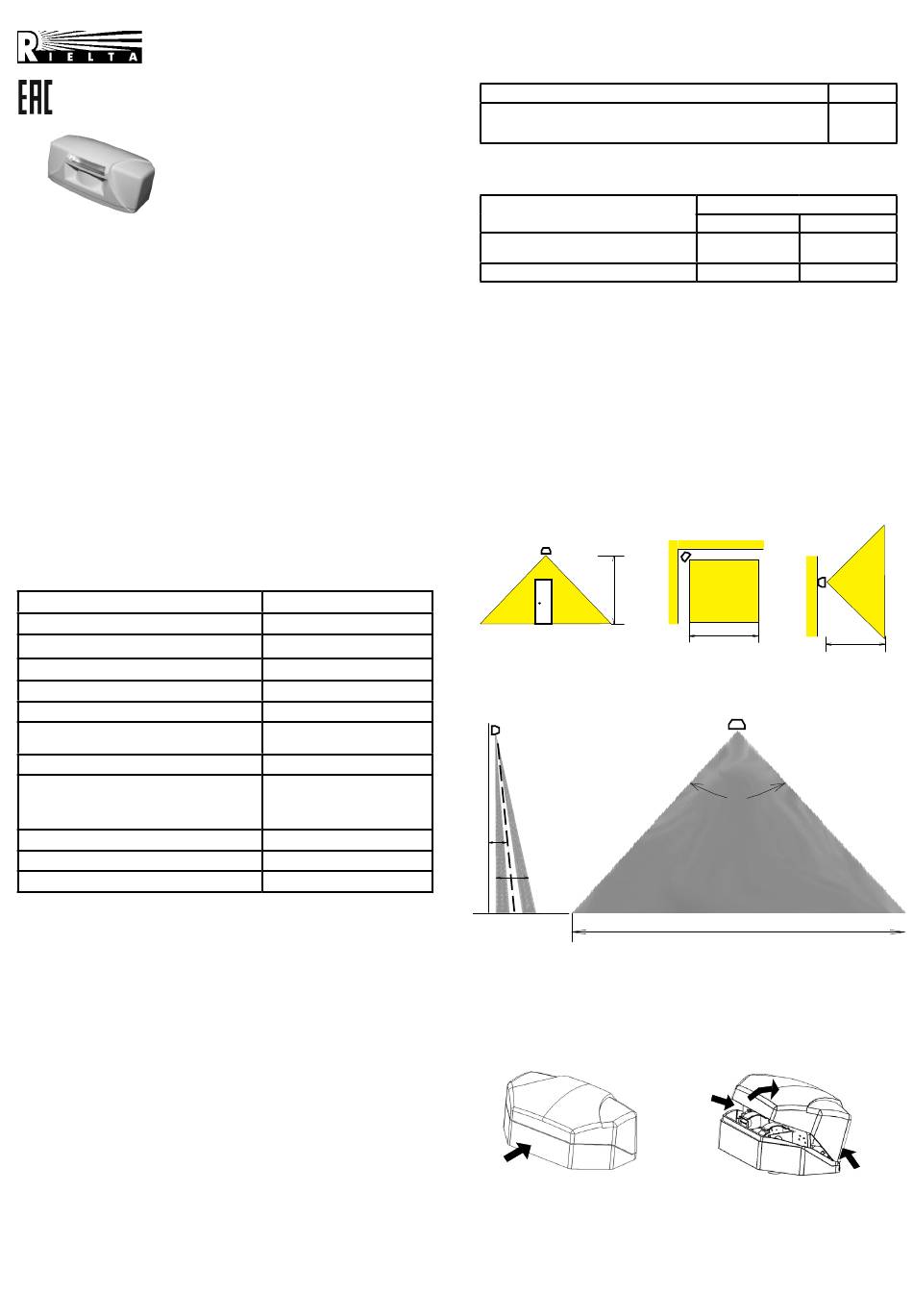

Rielta PYRONE-SH Installation Manual

1 General Information
Passive infrared detector «Pyrone-SH» (hereinafter, the Detector)
is designed for detecting intrusion into the protected closed area
of a room through door and window openings, for generating and
transmitting alarm messages by the relay contacts opening. The
Detector is resistant to small animals movement, electromagnetic
interference and ambient light.
2 Features
- Dual-element pyrodetector.
- «Vertical curtain» detection zone.
- Microprocessor-based signal processing.
- Mounting height up to 5 m.
- Possibility of LED indication disabling.
- The Detector base has four planes for mounting, providing
possibility of the Detector installation in standard manner above the
window opening, as well as directly in the corners of window and door
openings. The Detector can be installed without swivel bracket on the
wall, ceiling or in the opening corner.
- High immunity to electromagnetic interference.
3 Specifications
Table 1
Parameter
Installation height, m, max
Alarm message duration, sec, not less
Power supply, V, DC
Consumption current, mA, not more
Operating temperature, °С
Relative humidity under 25 °С without water
condensation, %, up to
Detection zone type
Ambient class
IP rating
Dimensions, mm, max
Weight, g, not more
The Detector is designed to operate continuously around the clock.
The Detector interference protection provides absence of false
alarms under the following conditions:
- background illumination differential;
- convective air flows;
- slow background temperature changing;
- voltage impulses in power-supply circuit;
- electrostatic discharge;
- electromagnetic fields in FM band.
The Detector generates Alarm message under human movement
within the detection zone limits transversally it's side border at a speed
range 0.3 – 3 m/sec for the distance of 3 m.
The Detector is resistant to:
а) transport jolting with the acceleration 30 m/sec
frequency from 10 to 120 impacts/sec or 15000 impacts with the
same acceleration;
b) the ambient temperature minus 50 ... +50 °С;
c) relative air humidity (95 ± 3) % at the ambient temperature +35 °С.
After transportation under the conditions different to exploitation
conditions, the Detector shall be ready to operate after a maximum
of six hours.
Average time between failures is not less than 60 000 hours.
Average service life is 8 years.
PASSIVE INFRARED DETECTOR
«PYRONE-SH»
Installation Guide
Value
5
2
8 ... 30
15
minus 30 ... 50
95
vertical curtain
Boreal Climate (background
temperature 15 - 35
relative humidity 25 - 75 %,
air-pressure 86-106 kPa)
IP41
80 х 47 х 40
60
2 with impact
4 Scope of Delivery
Each Detector unit package contains the items listed in Table 2.
Table 2
Passive infrared detector «Pyrone-SH»
Passive infrared detector «Pyrone-SH». Installation Guide
5 LED Indication
Table 3
Warm-up time after energizing
Message indication
LED indicator is used for the Detector state displaying. For LED
indication disabling, remove «IND» jumper. Set up the jumper on one
of the aligning plug for the further usage during testing.
6 Choosing an Installation Place for the Detector
The Detector is designed fir using in closed premises (shops, offices,
museums, flats, etc.). When choosing locations for the Detector
installation, it is advisable to take note of the fact that the detection
zone may be limited by non-transparent objects (curtains, curtain
holders, door trims, etc), as well as glass partitions. There must be no
air conditioners, space heaters or heating radiators in the Detector's
detection zone. Maximum installation height of the Detector is 5 m.
Alarm loop wiring should be conveyed far enough from electrical
power cables.
The Detector installation variants are shown in Figure 1.
7 Detection Zone Pattern
5 m
о С,
6
о
11 о
a)
8 Installing the Detector
Push the back wall of the Detector base (Figure 3), press the
cover edges by the second hand fingers in the places shown in
Figure 4 and put off the Detector cover.
Figure 3
Insert a flat screwdriver into the slot between PCB and side wall of
the base, push the wall of the base and draw out the PCB (Figure 5).
Name
Mode
ON
Not more than
40 sec
Alarm (for 3 sec)
Till 5 m
6 m
Figure 1
90
10 m
b)
Figure 2
QNT
1 pc.
1 copy
LED Indicator
OFF
-
Norm
8 m
о
Figure 4
