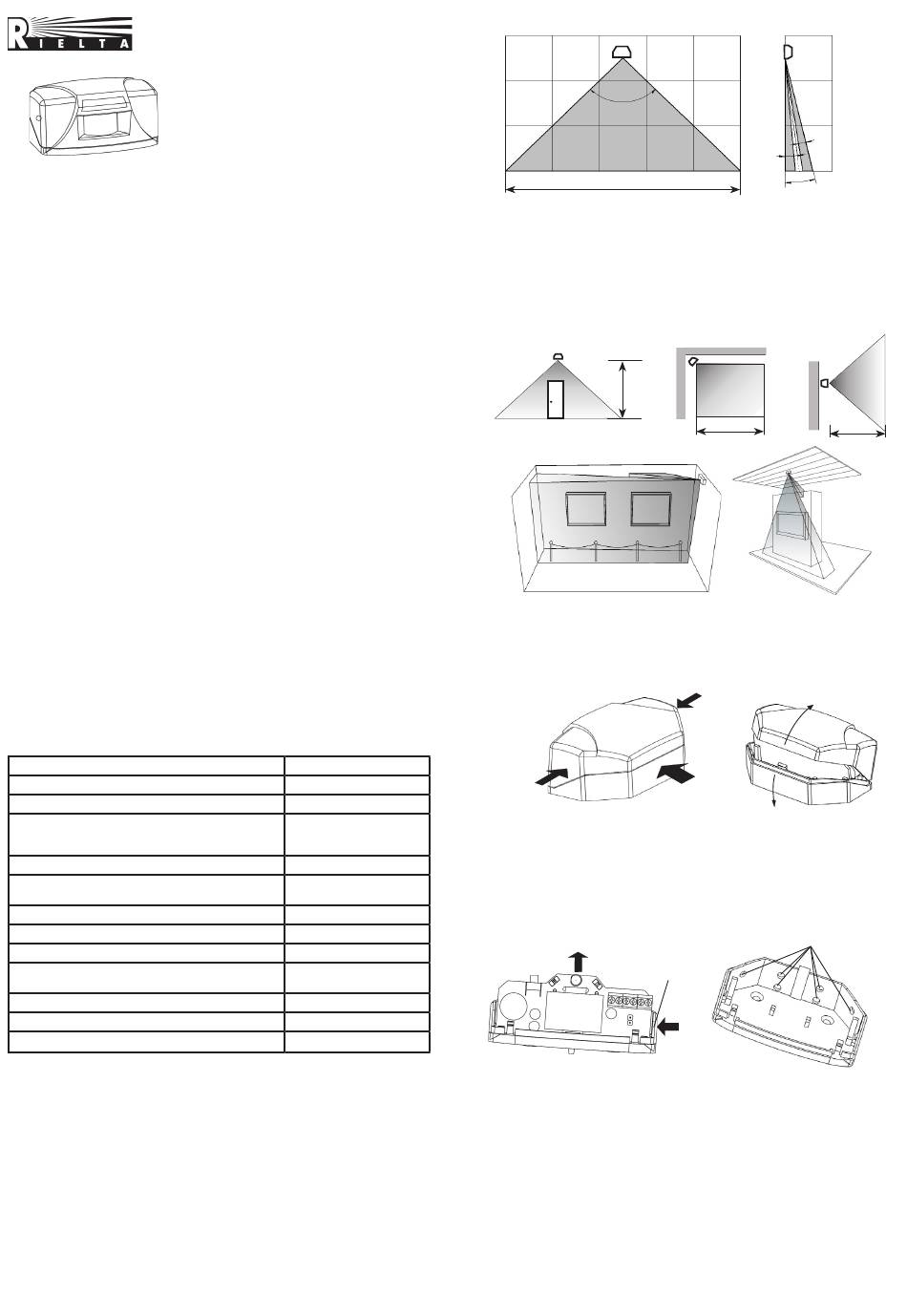

Rielta PYRONE-SH Installation Manual

PASSIVE INFRARED DETECTOR

1 General Information

1.1 Passive infrared detector «Pyrone-SH» vers.3 (hereinafter, the
Detector) is designed for security protection of museum showpieces
in the day-time by detecting intrusion into the protected closed area
of a room through door and window openings, and for generating and
transmitting alarm messages.
1.2 The Detector is designed to operate continuously around the clock.
1.3 The Detector provides vertical curtain detection zone (see Figure 1).
1.4 Temperature compensation of the detection ability is ensured
by the Detector.
1.5 The Detector is resistant to small pets movement, background
illumination differentials, convective air flows, slow background
temperature changes.
1.6 Optical and sound indication is available (with possibility of its
disabling).
1.7 The Detector provides high immunity to power supply voltage
pulses, electrostatic discharges, as well as electromagnetic fields
within FM band.

2 Features

- Microprocessor-based signal processing;
- Built-in sound indication;
- Possibility of LED indication disabling;
- Mode of enhanced sensitivity.

3 Information Capacity

The Detector generates 5 types of messages:
- wam-up time – by the relay contacts opening and LED indication
lighting for the time not more than 60 s after the Detector energizing;
- norm state – by the relay contacts closing;
- alarm - by the relay contacts opening and LED indication lighting
for the time not less than 2 s;
- tampering - by the micro-relay contacts opening after the Detector
decapsulation;
- power supplly malfunction – by the relay contacts opening and
LED indication lighting.

4 Specifications

Table 1
Parameter
Installation height, max
Power supply range, DC
Consumption current, not more than:
- In Standby mode
Alarm message duration, not less
Volume level (sound pressure) of sound
indication at 1 m distance, not less than
Detection zone type
IP rating
Operating temperature
Relative humidity at a temperature + 25 °С without
water condensation
Mean time-to-failure in standby mode
Dimensions, max
Weight, not more

5 Indication

For light and sound indication disabling remove relevant wafer IND
or SOUND located on the printed circuit board (PCB).

6 Enhanced Sensitivity Mode

The Detector provides enhanced sensitivity mode. To switch the mode,
install SENS wafer on the PCB.
«PYRONE-SH» vers. 3
Installation Guide
Value
5 m
9-18 V
10 mА
- In Alarm mode 45 mА
2 s
80 dB
vertical curtain
IP20
minus 30 ...50 °С
95 %
60 000 hrs
80х47х40 mm
60 g

7 Detection Zone Pattern

90
0
10 м m

8 Choosing Place of Installation

When choosing locations for the Detector installation, it is advisable
to take note of the fact that the detection zone may be limited by non-
transparent objects (curtains, curtain holders, door trims, etc), as well
as glass partitions. There must be no air conditioners, space heaters or
heating radiators in the Detectors' detection zone. Alarm loop should
be wired far enough from electrical power cables.
The Detector installation variants are shown in Figure 2.
up to 5 m

9 Installing the Detector

9.1 Remove the cover. For this purpose take the upper cover by one
hand for its sidfe walls. By other hand push the back wall of the Detector
base (Figure 3), press the cover edges and put off the Detector cover.
1 Take
9.2 Insert a flat screwdriver into the slot between PCB and side
wall of the base, push up the wall of the base and draw out the PCB
(See Figure 4).
9.3 Depending on chosen place of the Detector installation,
determine the sides of the Detector for its mounting. After it remove
port plugs for the Detector mounting and wire installation(See Figure 5).
Insert a screwdriver
and push up
Figure 4
Run the wires through the openings. Leave several centimeters of
the wire for connection to terminals.
9.5 Fasten the base on the chosen place.
9.6 Fulfill connections in accordance with Figure 6.
5 м m
4 0
6
0
11 0
Figure 1
6 m
Figure 2
3 Open
2 Press
Figure 3
Openable port plugs
Figure 5
8 m
