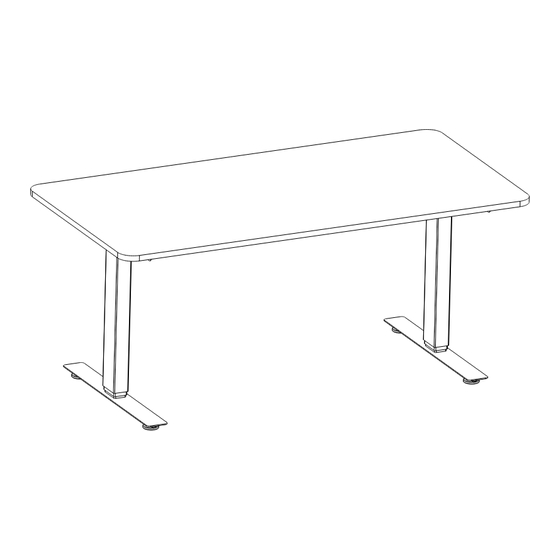

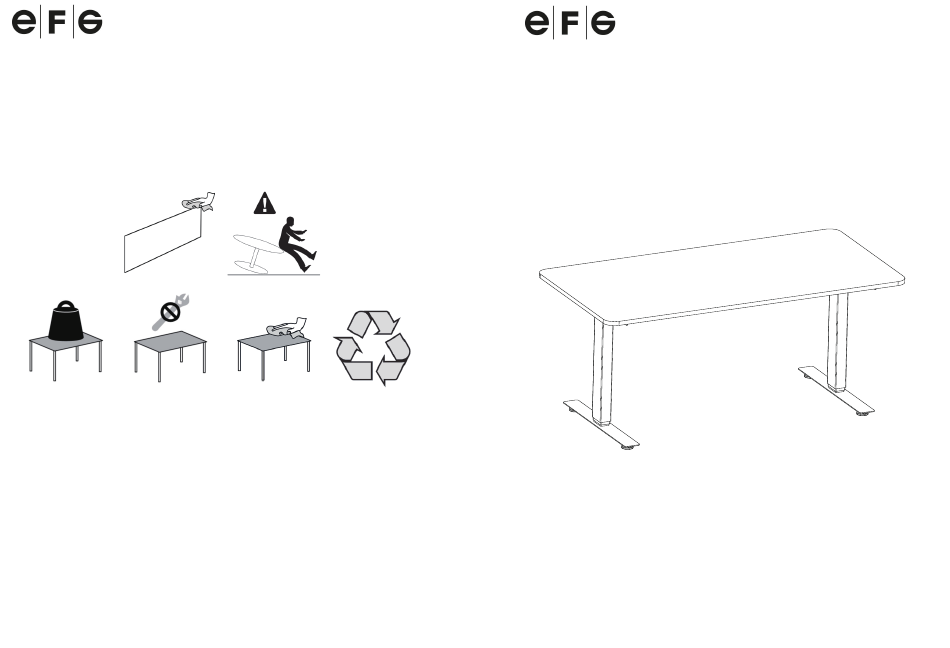

- Page 1 EFG Izi Pro S Assembly Instruction 039158 The product contains one or more of following materials: Metal, plastic, wood, fabric, foam. For more information, 039158/ Produced by: EFG product development please visit www.efg.info...
- Page 2 EFG Izi Pro S EFG Izi Pro S - Frame assembly (overview) Overview of all parts for the frame (excluding cables, control box Position of parts and how to install the frame. and cables). Spec Spec Code Picture Frame(L) Frame(R)
- Page 3 EFG Izi Pro S - Frame assembly - Step 1 & 2 EFG Izi Pro S - Frame assembly - Step 3 & 4 Step 3 = Mount Frame A、B and Side bracket D to column C,use Step 1 = Frame work preparation: screws J and Tool P;...
- Page 4 EFG Izi Pro S - Frame assembly - Step 5 EFG Izi Pro S - Frame assembly - Step 6, 7, 8, 9 & 10 Step 5 = Adjust to the desired length and tighten screws L to fixed Step 6 = Place frame on table top and assemble it with frame(L) A and Frame(R) B.
