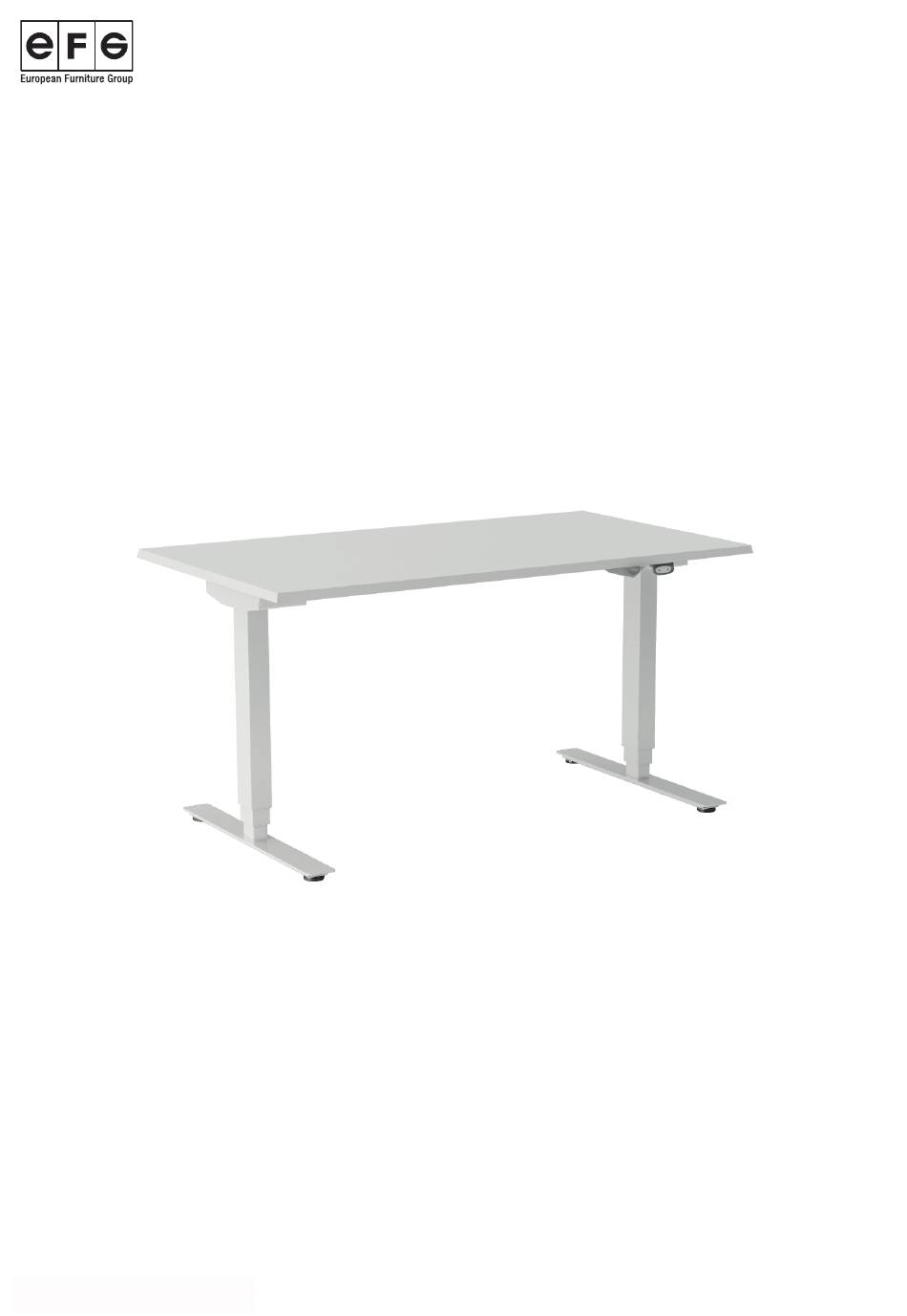

- Page 1 EFG IZI Light Assembly Instruction 039168 For more information, please visit www.efg.info 170308 / Produced by: EFG Marketing Support...
- Page 2 IMPORTANT! The inner leg tube on Y-leg must match the inner leg tube on X-leg (Leg with motor). Adjust the level on Y-leg by turning the axis on the motor house. Leg Y X = Y Leg X (motor) Axis EFG IZI Light - 2...
- Page 3 Step 4 - Assemble driveline to the frame. Connect the driveline between the axis on legs and finish off by fixating the tubes with the rubber rings, by pressing them towards the tubes. Tube Rubber rings EFG IZI Light - 3...
- Page 4 Step 5 - Assemble the feet. M8x16 Step 6 - Mount frame to table top + hand control. Ø3,5x16 Ø4,5x20 EFG IZI Light - 4...
- Page 5 First plug in the cable to the hand control. Then turn the table around to standing position and plug the cable in to the wall. Ready to use! STEP 7:1 STEP 7:2 EFG IZI Light - 5...
- Page 6 The product contains one or more of following materials: Metal, plastic, wood, fabric, foam. Försäkran om överensstämmelse för maskiner/ Declaration of conformity SE - EFG IZI Light överensstämmer med Maskindirektivet AFS 2008:3 och AFS 2009:5, European directive 2006/42/EG, EMC-direktiv 2004/108/EG och LVD 2014/35/EU.
