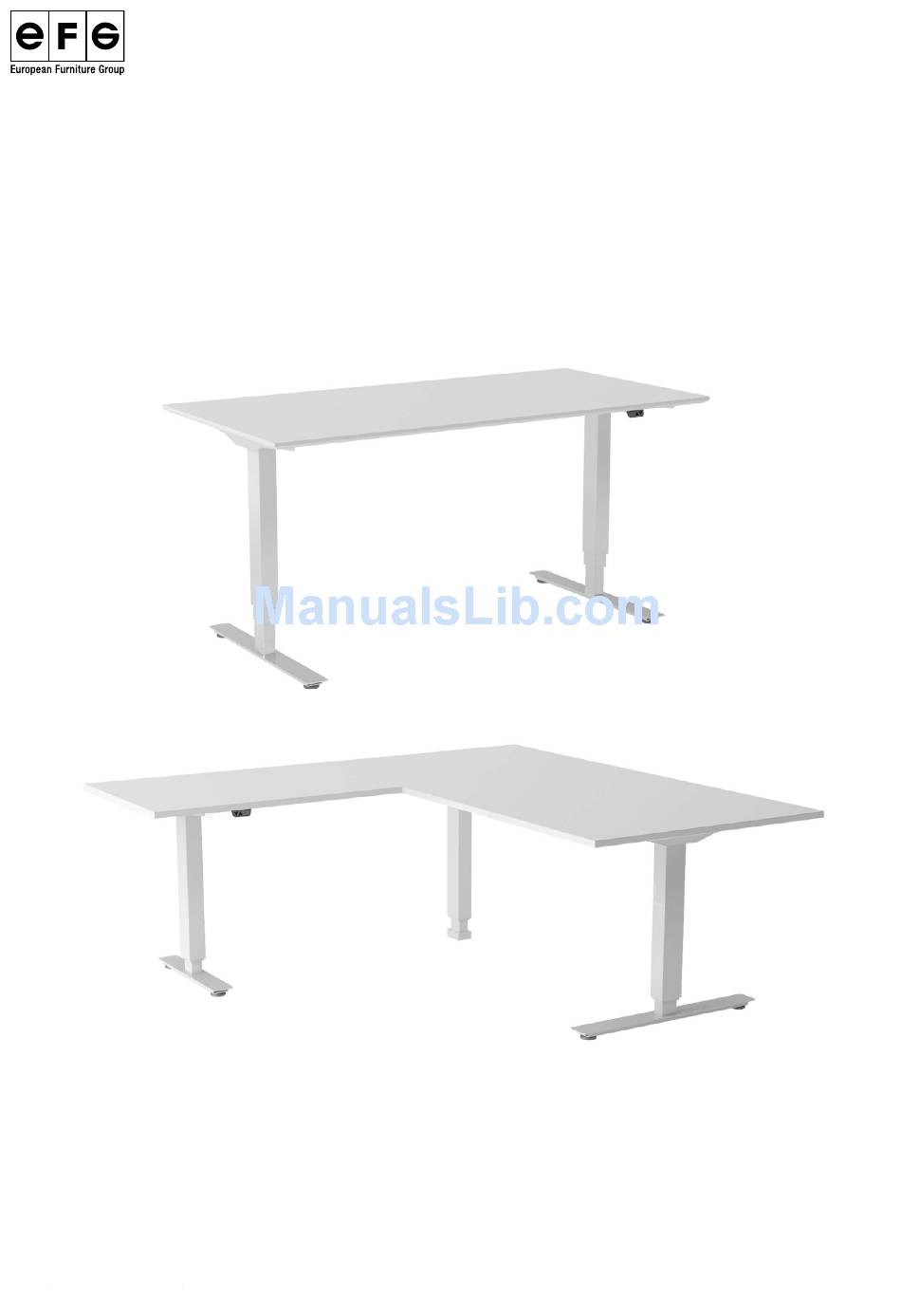

- Page 1 EFG IZI Pro Assembly Instruction 039167 For more information, please visit www.efg.info 170308 / Produced by: EFG Marketing Support...
- Page 2 For 3-Columns go to page 3. Step 2 - Assembly Feet and Side Bars. M8x16 (x4) - Side Bars. M8x16 (x6) - Feet (4pcs for single stand) Ø16 (x36) - Covers For Screw/Sidebars (Black/Gray/White) Setscrew at this side EFG IZI Pro - 2...
- Page 3 1800 = Beam length 1514 mm (Top extension on table according to page 5) Ø5,0x60 (x8) - Screw Beams (4pcs Single stand) Ø4,5x20 (x8) - Screw Sidebars Loosen setscrews in crossbars and adjust stand width symmetric to wished position. EFG IZI Pro - 3...
- Page 4 Ø5,0x60 (x8) - Screw beams Ø4,5x20 (x8) - Screw Sidebars Step 6 - Cable fastening. Structure excess cabling under the table top, use a cableclip to fasten powersupply. 2-COLUMN 3-COLUMN Ø3,5x16 (x2) - Handset Ø3,5x16 (x2) - Handset EFG IZI Pro - 4...
- Page 5 120 mm SUITED ACESSORIES: - TAB Screens (Ex: A29F01) - ADD Stack (Ex: ADDSTACKK) - Butler (Ex: ADDBUTLK) - ScreenIT Standard (Ex: A30B81) EFG IZI Pro - 5...
- Page 6 Metal, plastic, wood, fabric, foam. Försäkran om överensstämmelse för maskiner/ Declaration of conformity SE - EFG IZI Pro överensstämmer med Maskindirektivet AFS 2008:3 och AFS 2009:5, European directive 2006/42/EG, EMC-direktiv 2004/108/EG och LVD 2014/35/EU. UK - EFG IZI Pro complies with the European directive 2006/42/EG, EMC-directive 2004/108/EG and LVD 2014/35/EU.
