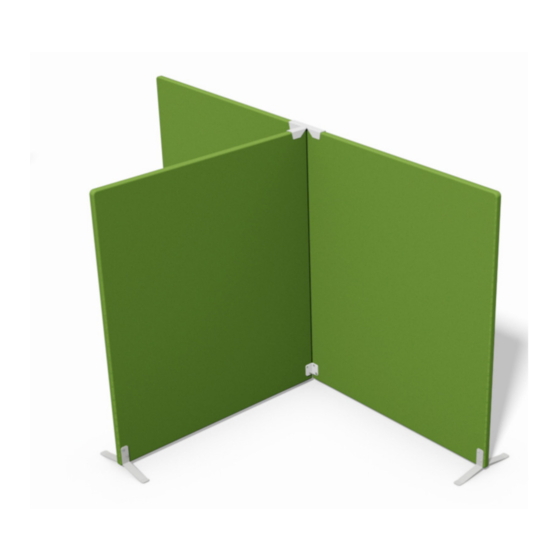

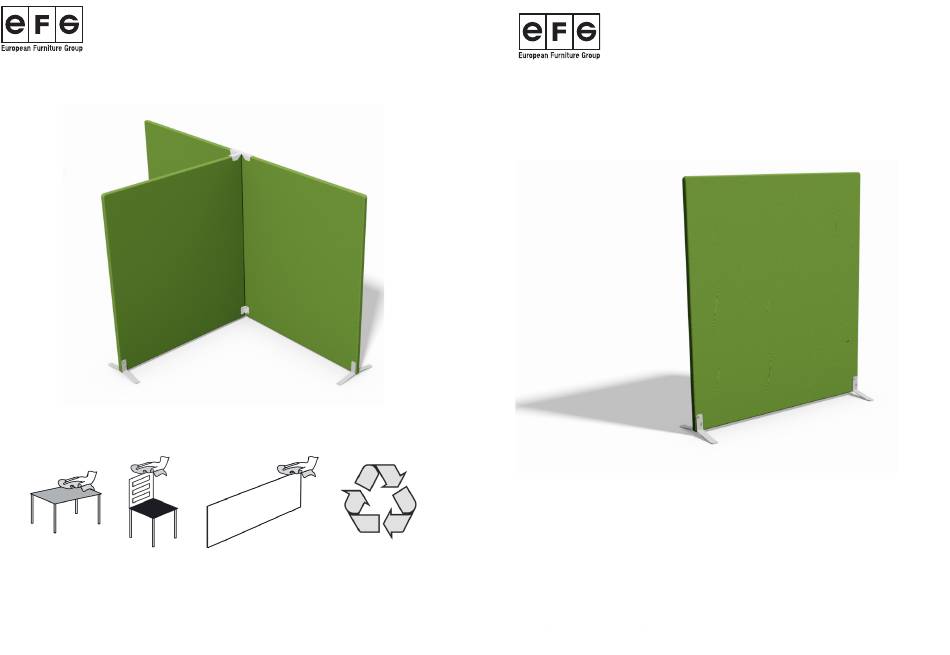

- Page 1 EFG Tab S Floor Assembly Instruction 039172 The product contains one or more of following materials: Wood, metal, plastic. For more information, 170106 / Produced by: EFG Marketing Support please visit www.efg.info...
- Page 2 = small feet = angled bracket fittings Tab S Floor - feet Assemble the feet with the 90° connection M6 screws and washers. Use the oval holes to adjust the leveling to the floor. Each screen has four feet. M6 screw...
- Page 3 Top connections (optional) Examples, connections Top connection, fastened with wood screws. Wood screw Top connection = small feet = angled bracket fittings Angled top connection...
